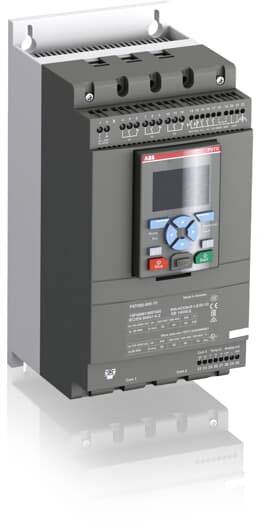

ABB PSTX85-600-70 1SFA898108R7000 Soft starter Motor power at 230 V 45 kW 100 V Nominal current 85 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Motor voltage
230 V
- Product type
Soft starter
- Supply current
85 A
- Motor power at 230 V
45 kW
- Nominal voltage
100 V
- Manufacturer part #
1SFA898108R7000
- Nominal current
85 A
- Nominal current - rounded value
85 A
- Type
PSTX85-600-70
- Motor power at 230V / 400V
45 kW
- Max. temperature
40 °C
100-250 V
100-250 V
IP00
AC
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2334721 ABB PSTX85-600-70 1SFA898108R7000 Soft starter Motor power at 230 V 45 kW 100 V Nominal current 85 A
User & Safety Instructions
User & Safety Instructions 2334721 ABB PSTX85-600-70 1SFA898108R7000 Soft starter Motor power at 230 V 45 kW 100 V Nominal current 85 A
Description
ABB's PSTX soft starters offer complete motor protection in one device and also function in the event of load or network irregularities. PT-100, residual current, overvoltage and undervoltage protection together with many other functions make your motor safer than ever before. There are three types of current limitation: Standard, dual, and ramp. This gives you full control of your engine at start-up. When the full ramp voltage is reached, PSTX activates its built-in bypass. This saves energy and reduces the heat generation of the soft starter. A user-friendly and clear display saves time and resources during setup and operation. In addition, PSTX offers many application optimization features, such as Torque Control: The most efficient way to start and stop pumps. The pump cleaning function can reverse the pump flow at intervals, thus releasing foreign bodies or buildup, ensuring the availability of your pump system. Slow jogging forwards and backwards increases flexibility, e.g. when operating conveyor belts and cranes.
