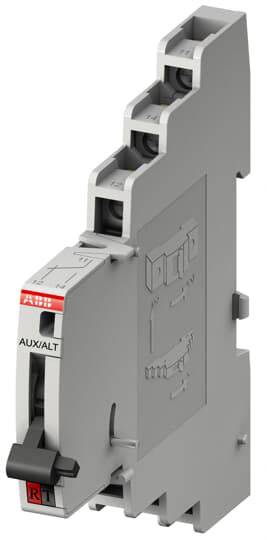

ABB S800-AUX/ALT Auxiliary switch 1 pc(s) 2 breakers Piece
Product type
Auxiliary switch
Contact type
2 breakers
Packaging type
Piece
Type
S800-AUX/ALT
Auxiliary contact type
2 breakers
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Auxiliary switch
- Type
S800-AUX/ALT
- Contact type
2 breakers
- Auxiliary contact type
2 breakers
- Mounting type
Screws
- Features
+ auxiliary contact
- Content
1 pc(s)
Side mounting
Screw connection
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2322000 ABB S800-AUX/ALT Auxiliary switch 1 pc(s) 2 breakers Piece
User & Safety Instructions
User & Safety Instructions 2322000 ABB S800-AUX/ALT Auxiliary switch 1 pc(s) 2 breakers Piece
Description
The combined auxiliary and signal contact S800-AUX/ALT is used for electrical signaling of the operating state of the high-performance automatic machine. The auxiliary contact AUX always switches at the same time as the pole contact and detects the following triggering: −− Manual on/off −− Triggering due to a thermal overload −− Triggering due to a magnetic overload (short circuit) −− Triggering by S800-SOR or S800-UVR
