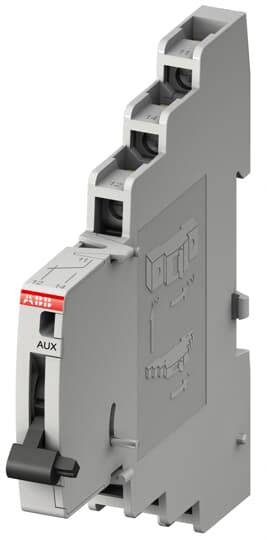

ABB S800-AUX Auxiliary switch 1 pc(s) 2 breakers (W x H x D) 20 x 105 x 99 cm Piece
Product type
Auxiliary switch
Contact type
2 breakers
Packaging type
Piece
Type
S800-AUX
Auxiliary contact type
2 breakers
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Auxiliary switch
- Type
S800-AUX
- Contact type
2 breakers
- Auxiliary contact type
2 breakers
- Mounting type
Screws
- Features
pluggable
- Depth
99 cm
- Width
20 cm
- Height
105 cm
- Dim
(W x H x D) 20 x 105 x 99 cm
- Content
1 pc(s)
Side mounting
Top mounting
Screw connection
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2322498 ABB S800-AUX Auxiliary switch 1 pc(s) 2 breakers (W x H x D) 20 x 105 x 99 cm Piece
User & Safety Instructions
User & Safety Instructions 2322498 ABB S800-AUX Auxiliary switch 1 pc(s) 2 breakers (W x H x D) 20 x 105 x 99 cm Piece
Description
The auxiliary contact S800-AUX is used for the electrical display of the operating state of the high-performance automatic machine. The two changeover contacts always switch simultaneously with the pole contact and detect the following operating states: −− Manual tripping −− Triggering due to a thermal overload or due to a magnetic overload (short circuit)
