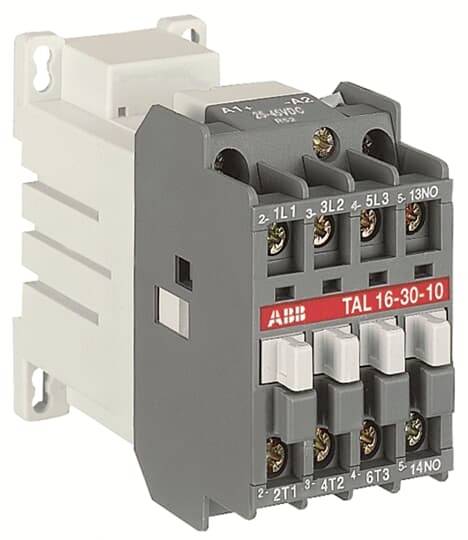

Name: ABB TAL16-30-10-51 Contactor DC circuit 4 makers 7.5 kW + broad range setup 1 pc(s)
Brand: ABB
SKU: 3105319

Technical specifications

Product type: Contactor

Type: TAL16-30-10-51

No. of pins: 3-pin

Switching type: DC circuit

Contact type: 4 makers

Auxiliary contact type: 4 makers

Control voltage (min.): 17 V DC

Control voltage (max.): 32 V DC

Control voltage range: 17 - 32 V DC

Switching voltage (max.): 690 V AC

Permanent current (max.): 30 A

: 7.5 kW

Features: + broad range setup

Connection: Screws

Content: 1 pc(s)

: FALSE

: 7.5 kW

: 3

: 0

: 1

: 0

: 17 A

: 30 A

: 17-32 V

: Screw connection

: DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3105319 ABB TAL16-30-10-51 Contactor DC circuit 4 makers 7.5 kW + broad range setup 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3105319 ABB TAL16-30-10-51 Contactor DC circuit 4 makers 7.5 kW + broad range setup 1 pc(s)

Description

The 3-pin TAL16 contactors are used primarily for the control of three-phase motors and generally for the control of power circuits up to 690V AC or 220V DC. The contactors can also be used for many other applications such as insulation, capacitor circuit, lighting. The 1-story, 3-pole contactors of the TAL series... Are designed in modular construction.
- Main pole and auxiliary contact blocks: 3 main pole, 1 built-in auxiliary contact, the installation of additional front or side mounting auxiliary contact blocks is possible.
- Control circuit: DC operation with permanent magnetic circuit and wide voltage range.
The polarity at the coil terminals (A1+ and A2-) must be observed.
VALLEY contactors have railway approval.

This text is machine translated.

Description

The 3-pin TAL16 contactors are used primarily for the control of three-phase motors and generally for the control of power circuits up to 690V AC or 220V DC. The contactors can also be used for many other applications such as insulation, capacitor circuit, lighting. The 1-story, 3-pole contactors of the TAL series... Are designed in modular construction.
- Main pole and auxiliary contact blocks: 3 main pole, 1 built-in auxiliary contact, the installation of additional front or side mounting auxiliary contact blocks is possible.
- Control circuit: DC operation with permanent magnetic circuit and wide voltage range.
The polarity at the coil terminals (A1+ and A2-) must be observed.
VALLEY contactors have railway approval.

This text is machine translated.
