ABB TAL26-30-01-51 Contactor 3 makers, 1 breaker 11 kW 1 pc(s)

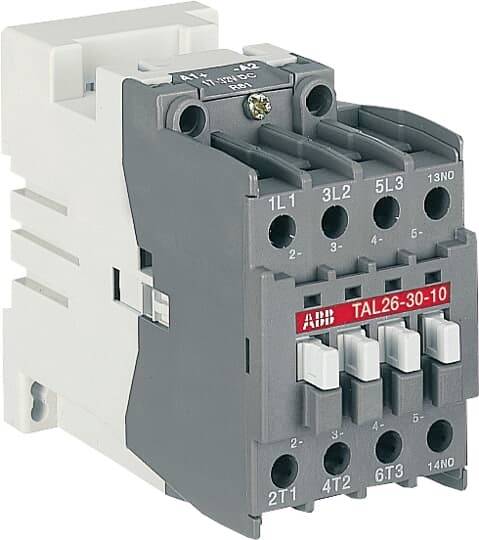

A three-pole electrical contactor with screw connections, used for controlling electrical circuits. Marked with 'TAL26-30-10'.
Product type
Contactor
No. of pins
3-pin
Power
11 kW
Connection
Screws
Type
TAL26-30-01-51
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Contactor

Type

TAL26-30-01-51

No. of pins

3-pin

Contact type

3 makers

1 breaker

Auxiliary contact type

1 breaker

Control voltage (min.)

17 V DC

Control voltage (max.)

32 V DC

Control voltage range

17 - 32 V DC

Switching voltage (max.)

690 V AC

Permanent current (max.)

45 A

11 kW

Connection

Screws

Content

1 pc(s)

FALSE

11 kW

3

0

0

1

26 A

45 A

17-32 V

Screw connection

DC

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3105375 ABB TAL26-30-01-51 Contactor 3 makers, 1 breaker 11 kW 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3105375 ABB TAL26-30-01-51 Contactor 3 makers, 1 breaker 11 kW 1 pc(s)

Description

The 3-pole TAL26 contactors are used mainly for the control of three-phase motors and generally for the control of power circuits up to 690V AC or 220V DC. The contactors can also be used for many other applications such as insulation, capacitor circuit, lighting. The 1-story, 3-pole contactors of the TAL series... Are designed in modular construction.
- Main pole and auxiliary contact blocks: 3 main pole, 1 built-in auxiliary contact, the installation of additional front or side mounting auxiliary contact blocks is possible.
- Control circuit: DC operation with permanent magnetic circuit and wide voltage range.
The polarity at the coil terminals (A1+ and A2-) must be observed.
The contactors have railway approval.
