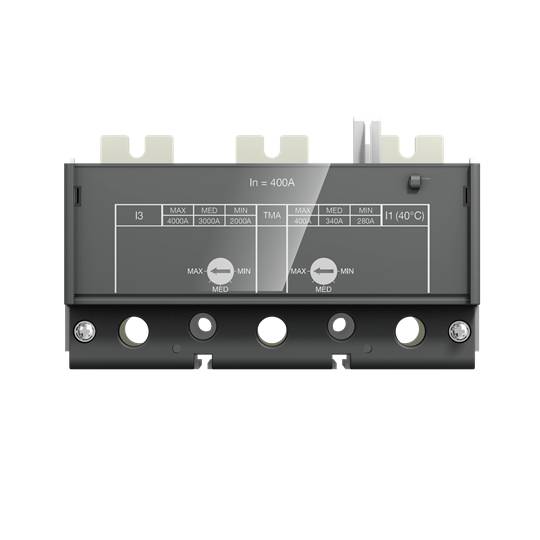

ABB TMA 400-4000 XT5 3 Circuit breaker 1 pc(s) Adjustment range (amperage): 400 - 4000 A Piece
Product type
Circuit breaker
Amperage adjustment range (max.)
4000 A
Packaging type
Piece
Type
TMA 400-4000 XT5 3
Amperage adjustment range (min.)
400 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Circuit breaker
- Type
TMA 400-4000 XT5 3
- Amperage adjustment range (min.)
400 A
- Amperage adjustment range (max.)
4000 A
- Adjustment range (amperage)
400 - 4000 A
- No. of pins
3-pin
- Content
1 pc(s)
FALSE
TRUE
Other
FALSE
TRUE
2000 A
4000 A
0
0
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3108386 ABB TMA 400-4000 XT5 3 Circuit breaker 1 pc(s) Adjustment range (amperage): 400 - 4000 A Piece
User & Safety Instructions
User & Safety Instructions 3108386 ABB TMA 400-4000 XT5 3 Circuit breaker 1 pc(s) Adjustment range (amperage): 400 - 4000 A Piece
Description
Compact circuit breaker for system protection according to EN 60947-2 (DIN VDE 0660, part 101),
Compact circuit breakers in accordance with EN 60947-3 (DIN VDE 0660, part 107).
The Tmax XT compact power/switch disconnectors meet the different system requirements of DC and AC power supply systems. Tmax XT with thermo-magnetic or electronic triggers can be used to protect power distribution units, cables, generators and motors. Many of these circuit breakers can also be used in communication systems. Extensive connection kits, mechanical and electrical accessories as well as version conversion kits (pluggable/extendable) are available. Different fieldbus and IP communication protocols can be used. The installation process is simplified thanks to Bluetooth and Ekip connectivity for mobile devices. The connectivity integrated into the SACE Tmax XT series combines smartphones, tablets and PCs in real time with data analysis tools on the ABB AbilityTM cloud platform.
This text is machine translated.
Compact circuit breakers in accordance with EN 60947-3 (DIN VDE 0660, part 107).
The Tmax XT compact power/switch disconnectors meet the different system requirements of DC and AC power supply systems. Tmax XT with thermo-magnetic or electronic triggers can be used to protect power distribution units, cables, generators and motors. Many of these circuit breakers can also be used in communication systems. Extensive connection kits, mechanical and electrical accessories as well as version conversion kits (pluggable/extendable) are available. Different fieldbus and IP communication protocols can be used. The installation process is simplified thanks to Bluetooth and Ekip connectivity for mobile devices. The connectivity integrated into the SACE Tmax XT series combines smartphones, tablets and PCs in real time with data analysis tools on the ABB AbilityTM cloud platform.
This text is machine translated.
