ABB UA16-30-10-88 Capacitor bank contactor 4 makers + auxiliary contact 1 pc(s)

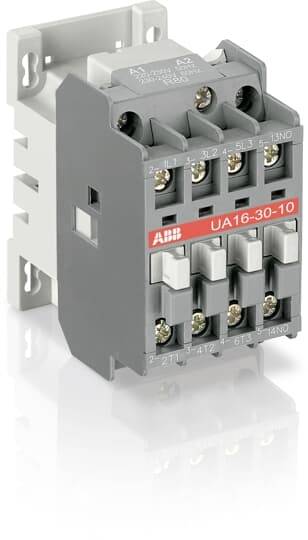

A grey electrical contactor with multiple terminals and the marking 'UA16-30-10'. Brand logo visible in the top left corner.
Product type
Capacitor bank contactor
No. of pins
3-pin
Connection
Screws
Type
UA16-30-10-88
Contact type
4 makers
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Capacitor bank contactor

Type

UA16-30-10-88

No. of pins

3-pin

Contact type

4 makers

Auxiliary contact type

1 maker

Control voltage (min.)

230 V AC

Control voltage (max.)

240 V AC

Control voltage range

230 - 240 V AC

Features

+ auxiliary contact

Connection

Screws

Content

1 pc(s)

3

0

1

0

230-240 V

240-260 V

Screw connection

11.7 kvar

AC

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3105311 ABB UA16-30-10-88 Capacitor bank contactor 4 makers + auxiliary contact 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3105311 ABB UA16-30-10-88 Capacitor bank contactor 4 makers + auxiliary contact 1 pc(s)

Description

UA16: 3-pole contactors for capacitor circuit can be used in systems where the peak current reaches a maximum of 100 times the nominal effective current. Their electrical lifespan is 100 000 switching cycles. The 3-pole contactors in the UA range...are designed in modular construction.
- Main pole and auxiliary contact blocks: 3 Main pole, with an integrated NO contact, the installation of additional auxiliary contact blocks for front and side mounting is possible.
- Control circuit: AC operation with laminated magnetic circuit
- Accessories: A wide range of additional accessories is available.

This text is machine translated.
