ABB VB7-30-10-P-01 Switch 4 kW 24 V 11.5 A + auxiliary contact Piece 1 pc(s)

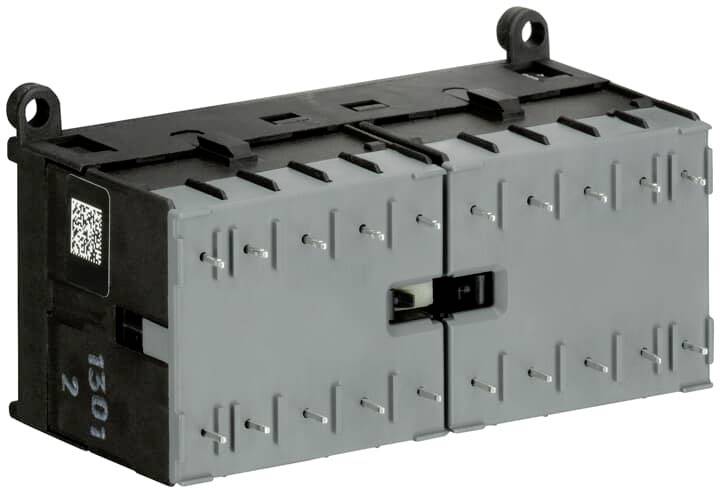

A rectangular, grey electrical component with black edges and hooks on the sides, possibly a switch or relay.
Product type
Switch
No. of pins
2-pin
Nominal voltage
24 V
Current load
11.5 A
Power
4 kW
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Switch

Type

VB7-30-10-P-01

No. of pins

2-pin

Nominal voltage

24 V

Switching voltage (max.)

5.5 V AC

Permanent current (max.)

11.5 A

Current load

11.5 A

4 kW

Features

+ auxiliary contact

Connection

Screw terminal

IP20

Content

1 pc(s)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2329879 ABB VB7-30-10-P-01 Switch 4 kW 24 V 11.5 A + auxiliary contact Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2329879 ABB VB7-30-10-P-01 Switch 4 kW 24 V 11.5 A + auxiliary contact Piece 1 pc(s)

Description

Small turning contactors VB/VBC 6 and VB/VBC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. This means that the devices offer a very wide range of applications even under unfavorable space conditions. The mechanically locked reversing contactors switch power circuits of motors with clockwise and anti-clockwise rotation with their AC or DC control. Accessories that can be attached are extinguishing links as well as 2-pole auxiliary switches that can be plugged on the front and a reversing wiring.
