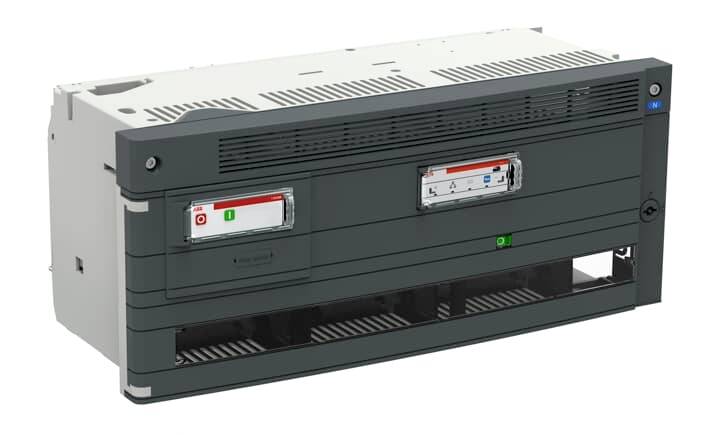

ABB XRG3-50/5-4P-ITS2. Isolator switch 630 A 1 pc(s)
Product type
Isolator switch
Operation type
Rotary actuator
Mounting type
Horizontal
Switching current (max.)
630 A
No. of contacts
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Isolator switch
- Operation type
Rotary actuator
- Mounting type
Horizontal
- No. of contacts
4
- Number of pins
4
- Connection
Bolt fixings
- Switching current (max.)
630 A
IP41
- Content
1 pc(s)
- Type
XRG3-50/5-4P-ITS2.
Side
630 A
4
55 kA
IP41
NH3
TRUE
Bolt connection
FALSE
TRUE
FALSE
FALSE
FALSE
TRUE
500 V
FALSE
Front side
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3101156 ABB XRG3-50/5-4P-ITS2. Isolator switch 630 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3101156 ABB XRG3-50/5-4P-ITS2. Isolator switch 630 A 1 pc(s)
Description
The SlimLine XRG series represents an economical and reliable solution for the most different ranges of industrial applications owing to high-quality processing. With this series of ABB fuse switch disconnectors currents from 63 A to 630 A can be switched and by using double handles even up to 1250 A. In addition, a high degree of safety is provided with the protection class IP 41. The installation is even easier thanks to horizontal and vertical mounting and saves more time than ever before. SlimLine XRG offers safe operation remotely through the use of motors as well as an integrated energy management with bus connection when using the variants with integrated ITS unit. ABB offers 2-pin versions for DC and 3- and 4-pin versions for AC applications.
