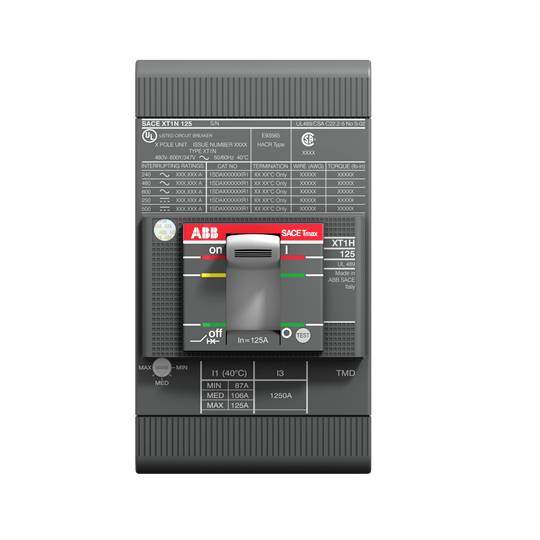

ABB XT1H 125 MCP IN=10 Circuit breaker 1 pc(s) Adjustment range (amperage): 300 - 1100 A Switching voltage (max.): 240 V
Product type
Circuit breaker
Amperage adjustment range (max.)
1100 A
Connection
Bolt fixings
Packaging type
Piece
Type
XT1H 125 MCP IN=10
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Circuit breaker
- Type
XT1H 125 MCP IN=10
- Amperage adjustment range (min.)
300 A
- Amperage adjustment range (max.)
1100 A
- Adjustment range (amperage)
300 - 1100 A
- Current load
125 A
- No. of pins
3-pin
- Switching voltage (max.)
240 V AC
347 V AC
- Connection
Bolt fixings
- Content
1 pc(s)
0
0
125 A
FALSE
3
0
240-347 V
IP20
Front side
FALSE
Bolt connection
Toggle
FALSE
65 kA
300-1100 A
FALSE
FALSE
TRUE
Built-in device fixed built-in technique
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3107168 ABB XT1H 125 MCP IN=10 Circuit breaker 1 pc(s) Adjustment range (amperage): 300 - 1100 A Switching voltage (max.): 240 V
User & Safety Instructions
User & Safety Instructions 3107168 ABB XT1H 125 MCP IN=10 Circuit breaker 1 pc(s) Adjustment range (amperage): 300 - 1100 A Switching voltage (max.): 240 V
Description
Compact circuit breaker for system protection according to EN 60947-2 (DIN VDE 0660, part 101),
Compact circuit breakers in accordance with EN 60947-3 (DIN VDE 0660, part 107).
The Tmax XT compact power/switch disconnectors meet the different system requirements of DC and AC power supply systems. Tmax XT with thermo-magnetic or electronic triggers can be used to protect power distribution units, cables, generators and motors. Many of these circuit breakers can also be used in communication systems. Extensive connection kits, mechanical and electrical accessories as well as version conversion kits (pluggable/extendable) are available. Different fieldbus and IP communication protocols can be used. The installation process is simplified thanks to Bluetooth and Ekip connectivity for mobile devices. The connectivity integrated into the SACE Tmax XT series combines smartphones, tablets and PCs in real time with data analysis tools on the ABB AbilityTM cloud platform.
This text is machine translated.
Compact circuit breakers in accordance with EN 60947-3 (DIN VDE 0660, part 107).
The Tmax XT compact power/switch disconnectors meet the different system requirements of DC and AC power supply systems. Tmax XT with thermo-magnetic or electronic triggers can be used to protect power distribution units, cables, generators and motors. Many of these circuit breakers can also be used in communication systems. Extensive connection kits, mechanical and electrical accessories as well as version conversion kits (pluggable/extendable) are available. Different fieldbus and IP communication protocols can be used. The installation process is simplified thanks to Bluetooth and Ekip connectivity for mobile devices. The connectivity integrated into the SACE Tmax XT series combines smartphones, tablets and PCs in real time with data analysis tools on the ABB AbilityTM cloud platform.
This text is machine translated.
