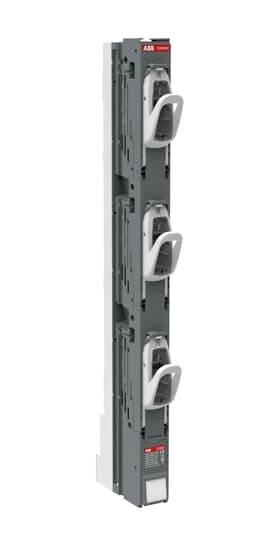

ABB ZLBM00-1P-M8 Isolator switch 160 A 1 pc(s)
Product type
Isolator switch
Switching current (max.)
160 A
No. of contacts
1
Number of pins
3
Connection
Bolt fixings
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Isolator switch
- No. of contacts
1
- Number of pins
3
- Connection
Bolt fixings
- Thread size
M8
- Switching current (max.)
160 A
IP30
- Content
1 pc(s)
- Type
ZLBM00-1P-M8
160 A
3
120 kA
IP30
NH00
FALSE
Bolt connection
FALSE
Other
FALSE
FALSE
FALSE
FALSE
TRUE
1000 V
FALSE
FALSE
Front side
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3101204 ABB ZLBM00-1P-M8 Isolator switch 160 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3101204 ABB ZLBM00-1P-M8 Isolator switch 160 A 1 pc(s)
Description
The inLine II ZLBM/ZHBM equipment generation offers the best possible stability and highest security in the power distribution network. They can switch rated currents from 160 A to 630 A, and use double handles for up to 1250 A. They provide a high level of protection for the operation and maintenance of your switching systems. ABB offers you the series in 1 and 3-pin versions, which were tested according to EN / IEC 60947-3-1. The installation is space saving and more flexible than ever before thanks to the horizontal and vertical mounting. We also ensure a simple and safe installation of the current transformers as well as replacement of the NH fuse links. The series is suitable for phase rails with a distance of 185 mm.
