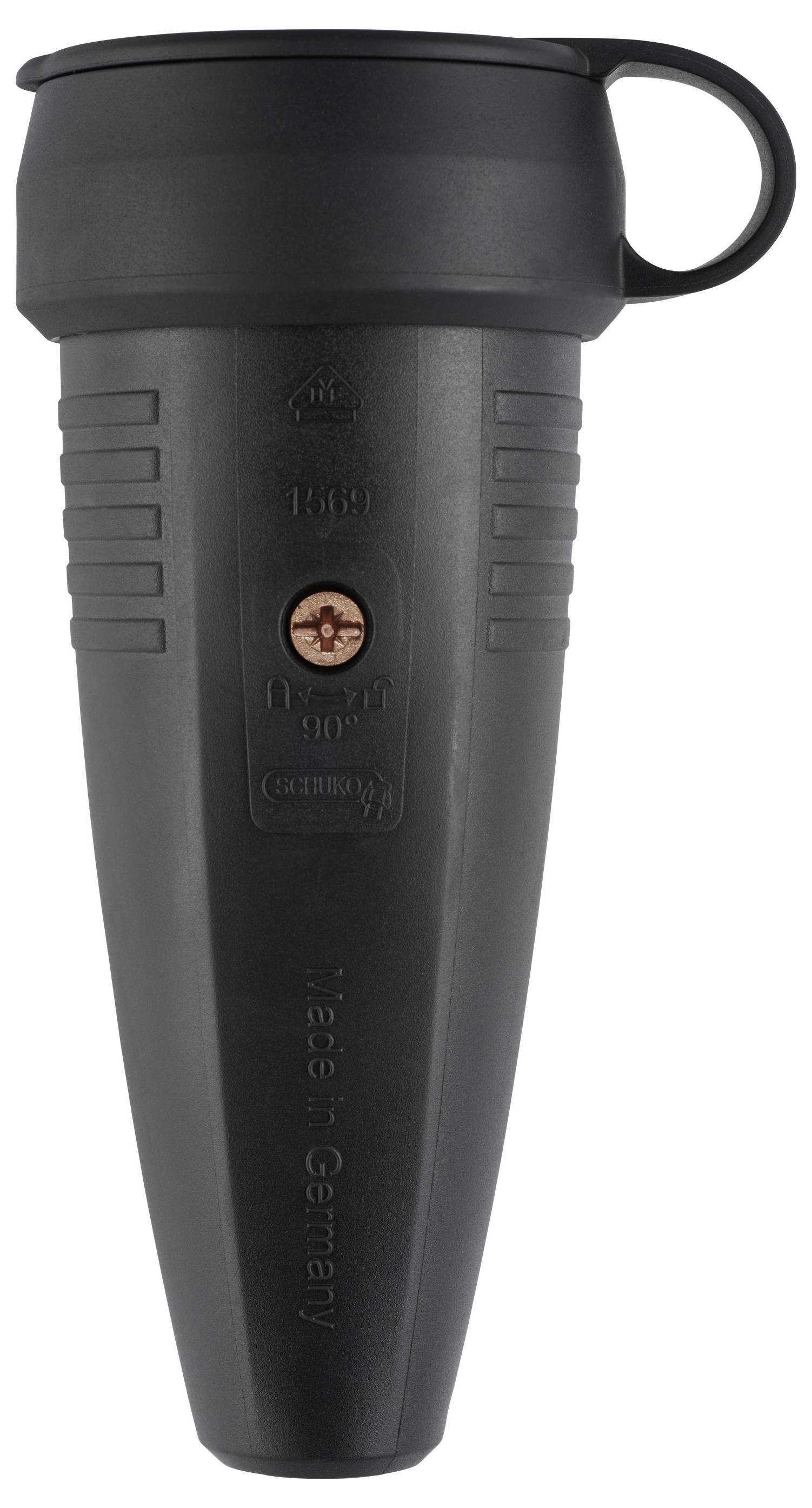

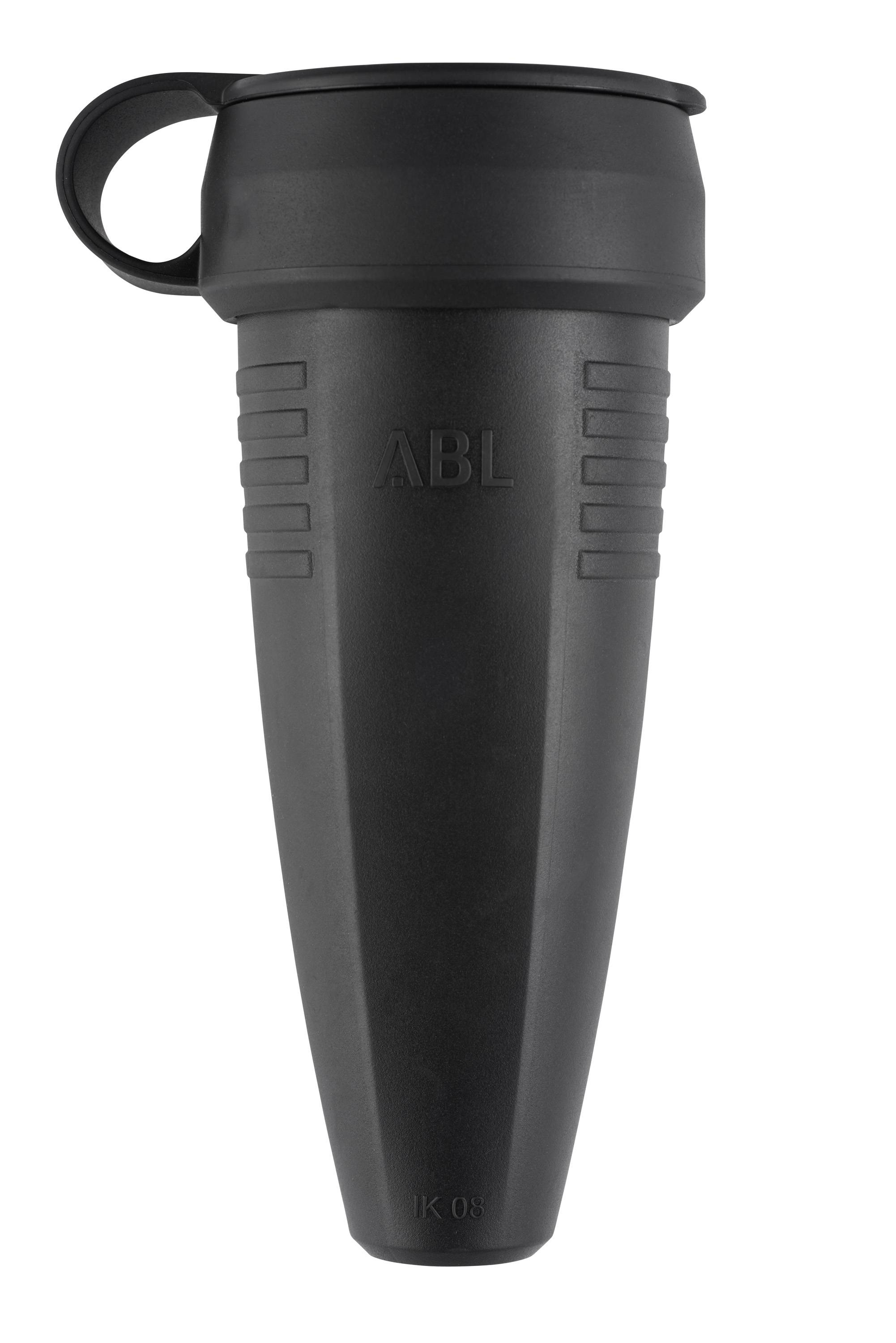

ABL Sursum 100000054 Safety mains socket Plastic halogen-free, + quick-release 250 V Black IP44
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Safety mains socket
- Features
halogen-free
+ quick-release
- Connector version
straight
- Nominal voltage
250 V
- Material
Plastic
- Factory colour
Black
IP44
- Type
For more difficult conditions
- For mains outlet
F
- Nominal current
16 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3785328 ABL Sursum 100000054 Safety mains socket Plastic halogen-free, + quick-release 250 V Black IP44
Datasheet 3785328 ABL Sursum 100000054 Safety mains socket Plastic halogen-free, + quick-release 250 V Black IP44
Security datasheet
Security datasheet 3785328 ABL Sursum 100000054 Safety mains socket Plastic halogen-free, + quick-release 250 V Black IP44
Security datasheet 3785328 ABL Sursum 100000054 Safety mains socket Plastic halogen-free, + quick-release 250 V Black IP44
Description
The coupling of the product family Expert according to protection contact standard with sleeve and the ABL-snap closure comprises of the rubber-like material TPE and is made in Germany. Product benefits:Coupling with collar. Spray water protection in accordance with IP44 through 3-fold lamellar seal. High load-carrying capacity hammer symbols. ABL quick release mechanism Large connection space for wires up to 2.5 mm2. Cable diameter from 6 - 12 mm. Easy and comfortable connection by cap fixing screw. Open connection screws and. One-way screws that can be connected with a single screwdriver. Use Case: For use under difficult conditions. For heavy mechanical stress in dry, damp and wet rooms as well as in the open air.
