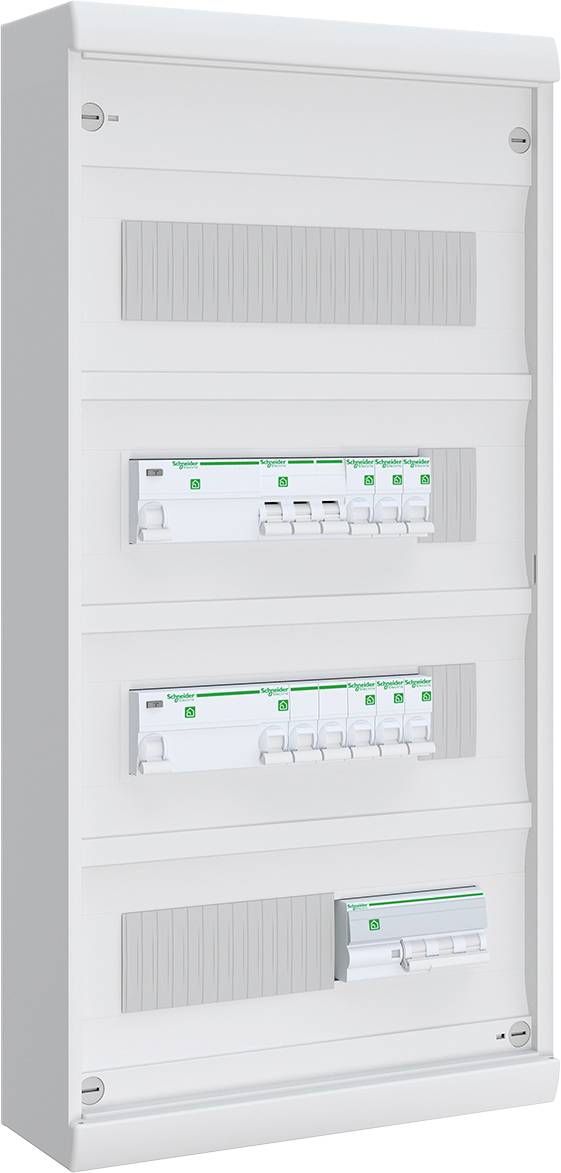

ABN ABNAA104F01 AMIGO Distribution board (equipped) Surface-mount No. of partitions = 48 No. of rows = 4 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board (equipped)
No. of partitions
48
No. of rows
4
Mounting type
Surface-mount
Width
300 mm
Datasheet (PDF)
Technical specifications
- Product type
Distribution board (equipped)
- No. of partitions
48
- with PE and N terminals
Yes
- No. of rows
4
- Mounting type
Surface-mount
- Factory colour
Traffic white
- Width
300 mm
- Height
620 mm
- Dim
(W x H x D) 300 x 620 x 106 mm
- Depth
106 mm
- Content
1 pc(s)
Surface mounted (plaster)
White
305 mm
TRUE
620 mm
99 mm
9016
FALSE
0 mm
4
610 mm
None
295 mm
FALSE
FALSE
76 mm
TRUE
Plastic
12
Other
IP30
FALSE
FALSE
With notch
TRUE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3459343 ABN ABNAA104F01 AMIGO Distribution board (equipped) Surface-mount No. of partitions = 48 No. of rows = 4 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3459343 ABN ABNAA104F01 AMIGO Distribution board (equipped) Surface-mount No. of partitions = 48 No. of rows = 4 Content 1 pc(s)
Information
Information 3459343 ABN ABNAA104F01 AMIGO Distribution board (equipped) Surface-mount No. of partitions = 48 No. of rows = 4 Content 1 pc(s)
Description

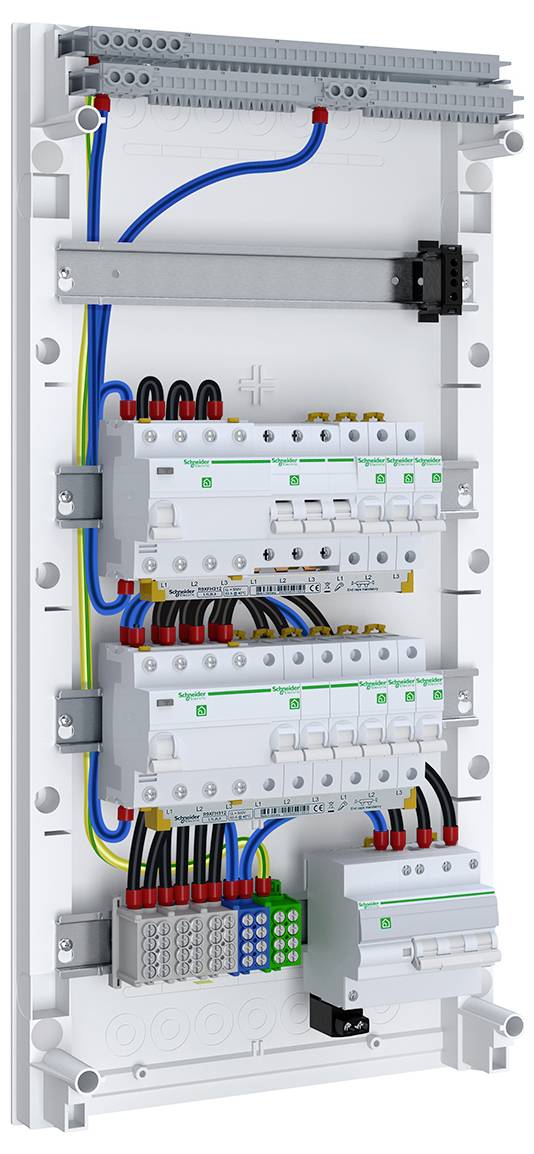

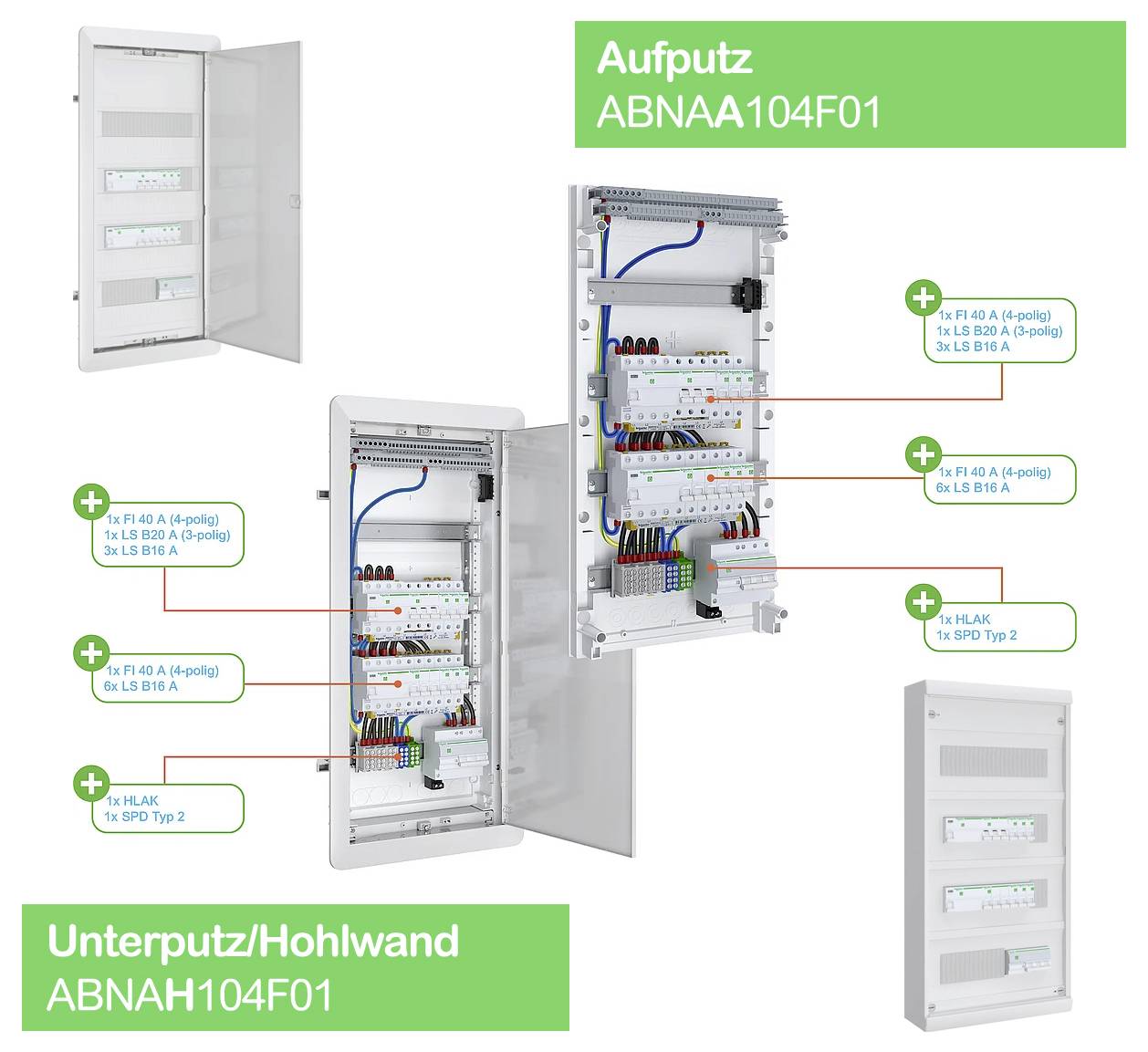

Small distribution box for surface mounting consisting of: Housing, 4-row, 48 TE, with PE/N plug-in terminals, with FI-N extension terminal, Pre-wired and equipped with: 2x FI 40 A (3P+N), 9x LS switch 1-pin 16 A, 1x LS switch 3-pin 20 A, 1x surge suppressor type 2, 1x main cable branch terminal
