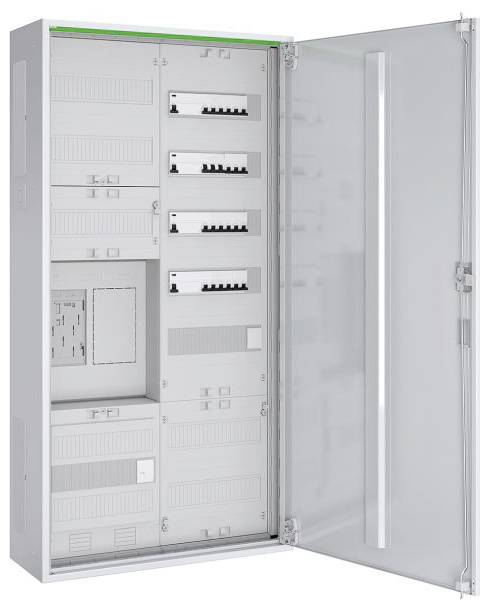

ABN ABNRS207E0811 ABNRS207E0811 Meter box Busbar No. of rows = 5 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Meter box
No. of rows
5
Mounting type
Busbar
Content
1 pc(s)
Short-circuit withstand rating (Icw)
7.5 kA
Technical specifications
- Product type
Meter box
- No. of rows
5
- Mounting type
Busbar
- Content
1 pc(s)
- Short-circuit withstand rating (Icw)
7.5 kA
Surface mounted/recessed mounted/partially recessed mounted
White
550 mm
eHZ
1100 mm
210 mm
9016
FALSE
200 mm
63 A
2
1050 mm
500 mm
Steel
0
5
1
With bus bar 5-pole
IP44
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3459305 ABN ABNRS207E0811 ABNRS207E0811 Meter box Busbar No. of rows = 5 Content 1 pc(s)
Description
Complete cabinet consisting of: 1x eHZ cassette wired with 5-pin main line feeder terminal, busbar system 5-pin, 5x connection terminals 16 mm², 1x counter reserve space, 1x distribution panel 5-row with APZ space incl. RJ45 interface, without wiring, 1x assembly package for implementing DIN 18015-1 consisting of: 1x overvoltage protection T1+T2+T3 7.5 kA TT/TNS and 24x LS B16 A, 4x RCD 30 mA, 1x bell transformer 1 A/8(12) V Fabrication Schneider Electric
