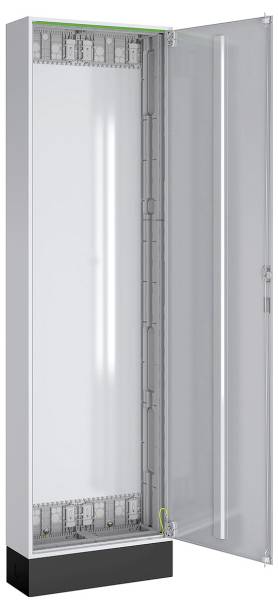

ABN ABNRV212 ABNRV212 Switchboard cabinet Stand Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Stand
Width
550 mm
Height
1980 mm
Depth
210 mm
Technical specifications
- Product type
Switchboard cabinet
- Mounting type
Stand
- Width
550 mm
- Height
1980 mm
- Dim
(W x H x D) 550 x 1980 x 210 mm
- Depth
210 mm
- Content
1 pc(s)
Floor installation
I
White
550 mm
1980 mm
210 mm
9016
FALSE
Powder coating
190 mm
2
Door
248
TRUE
185 mm
Steel plate/plastic
None
24
FALSE
IK10
1
Single
IP44
FALSE
FALSE
TRUE
400 A
1.5 mm
1 mm
None
4
Other
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3459328 ABN ABNRV212 ABNRV212 Switchboard cabinet Stand Content 1 pc(s)
Description
System housing grounded for stand mounting, consisting of: Empty housing with flush-mounted cable membrane, lateral knockouts for cross-wiring in the AAR and busbar connection in the NAR, dimensions: 550x1980x210 mm, full door, protection class II (insulated), protection class IP44, Powder-coated steel plate
