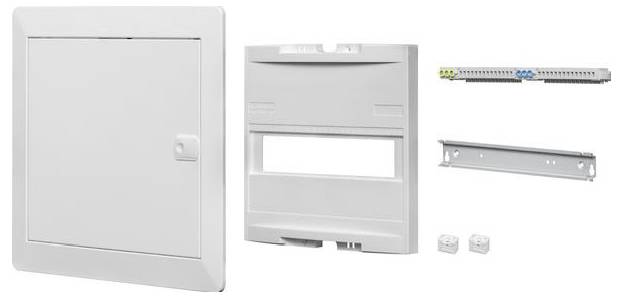

ABN AE12R AE12R Switchboard cabinet Cavity wall No. of partitions = 12 No. of rows = 1 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of partitions
12
No. of rows
1
Mounting type
Cavity wall
Depth
70 mm
Technical specifications
- Product type
Switchboard cabinet
- No. of partitions
12
- with PE and N terminals
Yes
- No. of rows
1
- Mounting type
Cavity wall
- Depth
70 mm
- Content
1 pc(s)
Hollow wall
White
TRUE
9016
FALSE
1
None
FALSE
FALSE
FALSE
Plastic
12
Other
IP20
FALSE
FALSE
With notch
TRUE
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3461384 ABN AE12R AE12R Switchboard cabinet Cavity wall No. of partitions = 12 No. of rows = 1 Content 1 pc(s)
Description
Installation sets with plug-in terminals,N+PE each 3 x 2.5-16 + 14 x 1.5-4mm²,TE each 18mm 12,series 1,installation sets,protective insulation II,protection class: IP30,for devices up to 63A,simplest change of door stop without dismantling of the cover frame,flat door lock with snap system,easy exchange against a lock,suitable for installation devices up to 70mm depth,color: RAL 9016 (traffic white), built according to DIN VDE 0603-1,DIN 43871,wall box:,wall box,from plastic,mounting hooks (HW),nail plate (UP),plaster mounting plate,installation set:,support frame with device mounting rail,device cover,frame with full door and plaster balance,N/PE-plug terminals,N-FI-extension clamp (in 2-,3- and 4-row distributor with labels and circuit diagrams), pictogram
