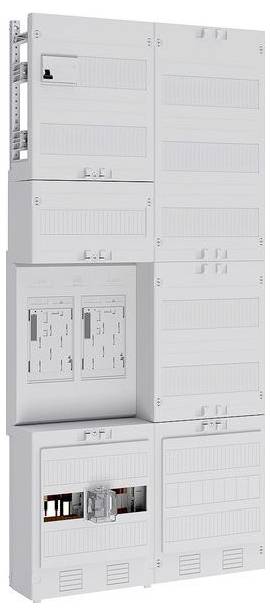

ABN EZ27320FR EZ27320FR Counter mount module Busbar No. of rows = 5 Content 1 pc(s)
Product type
Counter mount module
No. of rows
5
Mounting type
Busbar
Content
1 pc(s)
Short-circuit withstand rating (Icw)
10 kA
EAN:
Part number:
Item no:
Technical specifications
- Product type
Counter mount module
- No. of rows
5
- Mounting type
Busbar
- Content
1 pc(s)
- Short-circuit withstand rating (Icw)
10 kA
White
500 mm
eHZ
1050 mm
9002
FALSE
300 mm
TRUE
24
0
6
2
With bus bar 5-pole
IP3X
63 A
Closed with prestamping
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3457780 ABN EZ27320FR EZ27320FR Counter mount module Busbar No. of rows = 5 Content 1 pc(s)
Description
Meter space consisting of: 1x eHZ cassette with OKK and 5-pin main line feeder terminal,busbar system 5-pin,5 terminals 16mm²,no meter reserve,1x distribution panel 5-row with busbar,heat pump panel equipped and wired with: 1x circuit breaker in the OAR 1-pin B-characteristic 6A/10 kA,1x installation contactor 4-pin 40A,1x lead-sealable,1x mounting cover,1x device mounting on guard D40 mm
