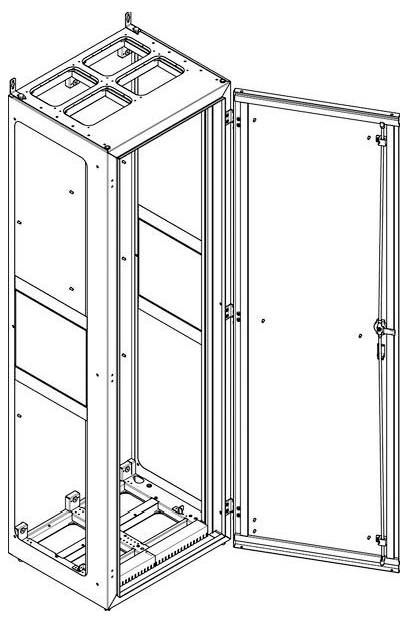

ABN NS212EB NS212EB Switchboard cabinet Stand Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Stand
Width
590 mm
Height
1890 mm
Depth
500 mm
Technical specifications
- Product type
Switchboard cabinet
- Mounting type
Stand
- Width
590 mm
- Height
1890 mm
- Dim
(W x H x D) 590 x 1890 x 500 mm
- Depth
500 mm
- Content
1 pc(s)
Floor installation
I
White
590 mm
1890 mm
500 mm
9016
FALSE
Powder coating
506 mm
2
Door
1
TRUE
500 mm
Steel plate/plastic
None
24
FALSE
IK10
1
Single
IP55
FALSE
FALSE
TRUE
1600 A
1.5 mm
2 mm
None
8
Other
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3458117 ABN NS212EB NS212EB Switchboard cabinet Stand Content 1 pc(s)
Description
Stand housing,500mm deep,series NS,EB,grounded K,outer dimensions WxHxT (mm) 590 9016 x1890 x500,width 2 144,stand housing,500mm deep,series NS,EB,protection class II (series NS,PB),protection class I (series NS,EB),protection class: IP55 (only in conjunction with cable entry plates and,side panels),width 340,590,840,1090,1340 mm,12 500 720 mm,for devices up to 1600 mm,distance mounting: Sheet steel,powder coated,open on both sides,cable insertion plates as desired with metric knockouts,membrane flange or foam rubber plate,can be combined horizontally and vertically,door resting ,right or left hinged with opening angle 61439-1 1°600 2 mm double bit locking with 3-point rod locking,Prepared for the installation of standardized module sets,NT carrier profiles or for continuous mounting plates,support bracket NGTU10N2*,DIN 180-,3-1-Hint are included (340mm and 590mm)-1 set,field width 3 and 4 (840mm and 1090mm)-2 sets,field width 5 (1340mm)-3 sets,
