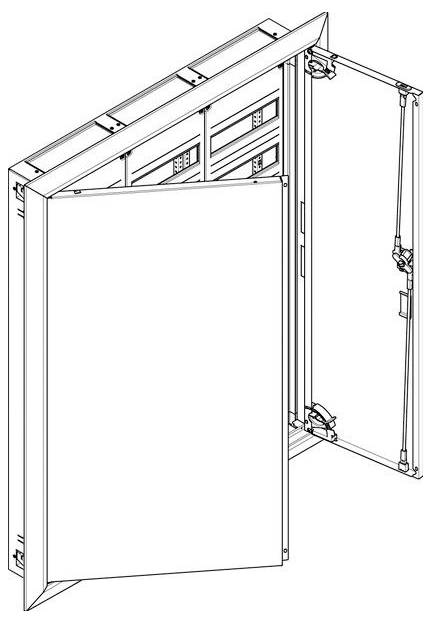

ABN UK37 UK37 Field distributor Flush mount No. of partitions = 36 No. of rows = 7 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Field distributor
No. of partitions
36
No. of rows
7
Mounting type
Flush mount
Width
820 mm
Technical specifications
- Product type
Field distributor
- No. of partitions
36
- with PE and N terminals
Yes
- No. of rows
7
- Mounting type
Flush mount
- Width
820 mm
- Height
1120 mm
- Dim
(W x H x D) 820 x 1120 x 110 mm
- Depth
110 mm
- Content
1 pc(s)
Flush mounted (plaster)
White
820 mm
TRUE
1150 mm
110 mm
9016
FALSE
110 mm
7
1120 mm
Door
820 mm
FALSE
TRUE
80 mm
TRUE
Steel
36
Other
Double
IP30
FALSE
FALSE
Closed
TRUE
TRUE
FALSE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3459487 ABN UK37 UK37 Field distributor Flush mount No. of partitions = 36 No. of rows = 7 Content 1 pc(s)
Description
Field distributor height 7,UK series,as complete cabinet with: UP /HW empty casing, frame with full door and,distribution panel for modular units,with PE/N plug-in terminals,frame (mm) 850 x 1150 x 20,cut-out dimensions WxHxT (mm) 7 x 1120 x110,width 3,PLE 252,field distributor height 820,
