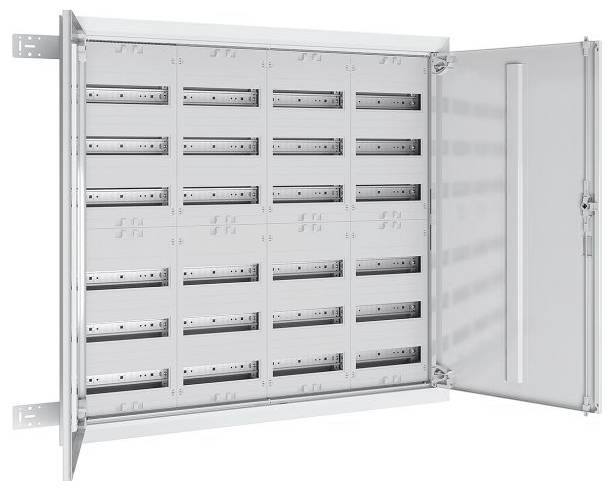

ABN UK46 UK46 Field distributor Flush mount No. of partitions = 48 No. of rows = 6 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Field distributor
No. of partitions
48
No. of rows
6
Mounting type
Flush mount
Width
1070 mm
Technical specifications
- Product type
Field distributor
- No. of partitions
48
- with PE and N terminals
Yes
- No. of rows
6
- Mounting type
Flush mount
- Width
1070 mm
- Height
970 mm
- Dim
(W x H x D) 1070 x 970 x 110 mm
- Depth
110 mm
- Content
1 pc(s)
Flush mounted (plaster)
White
1070 mm
TRUE
1000 mm
126 mm
9016
FALSE
110 mm
6
970 mm
Door
1070 mm
FALSE
TRUE
80 mm
TRUE
Steel
48
Other
Double
IP30
FALSE
FALSE
Closed
TRUE
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3459494 ABN UK46 UK46 Field distributor Flush mount No. of partitions = 48 No. of rows = 6 Content 1 pc(s)
Description
Field distributor height 6,UK series,as complete cabinet with: UP /HW empty casing, frame with full door and,distribution panel for modular units,with PE/N plug-in terminals,frame (mm) 1100 x 1000 x 20,cut-out dimensions WxHxT (mm) 6 x 970 x110,width 4,PLE 288,field distributor height 1070,
