Name: ABUS AZSG10011 AZSG10011 Sounder
Brand: ABUS
SKU: 2620572

Highlights & Details

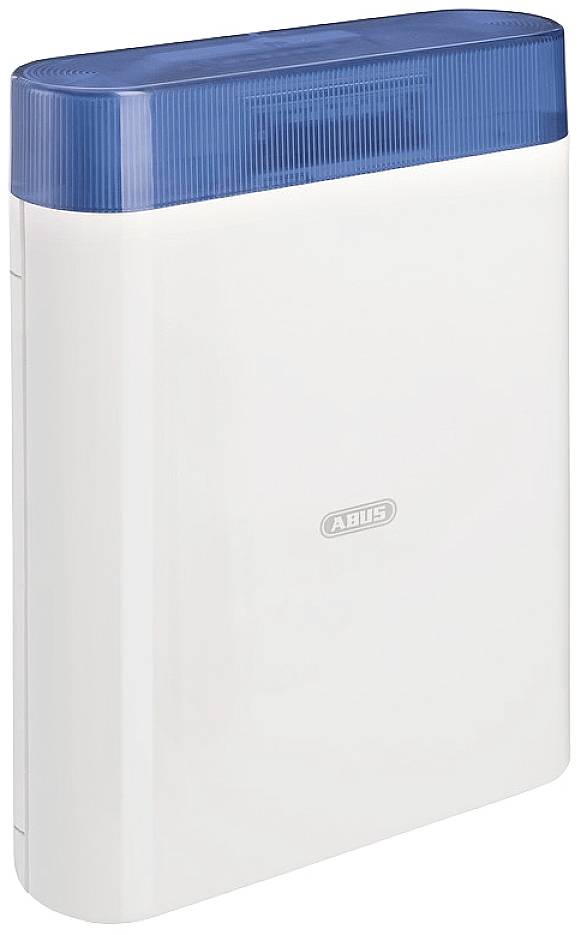

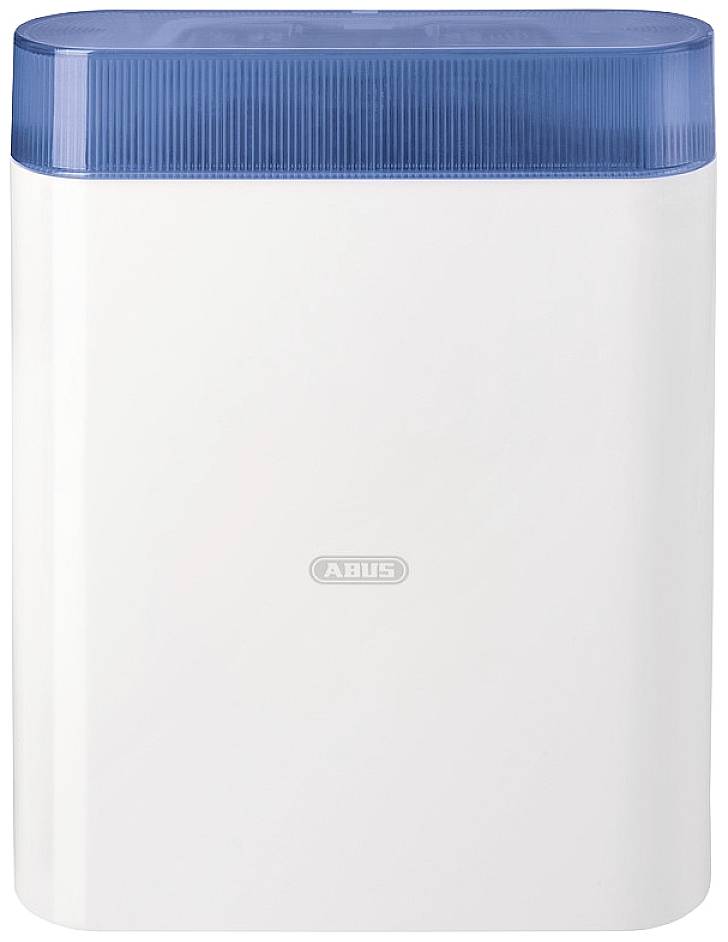

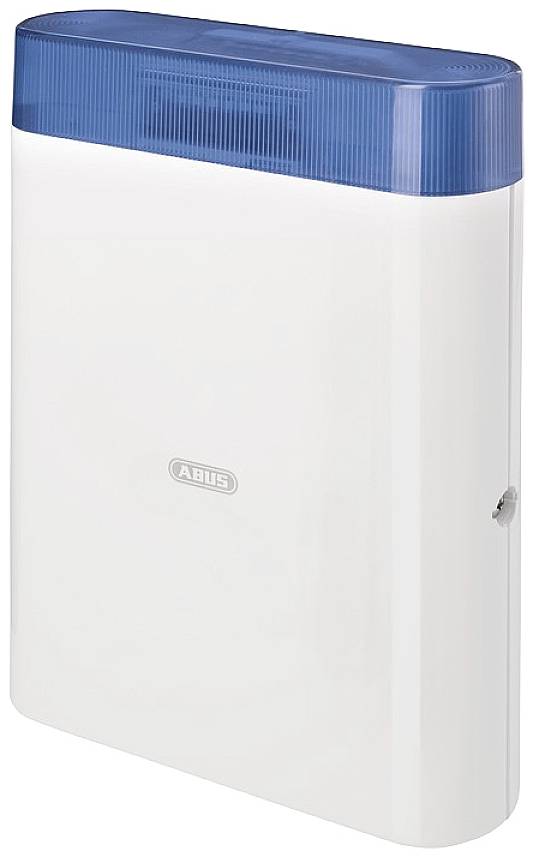

ABUS wire-outdoor siren (blue)

Robust, weatherproof outdoor sirenSound pressure of 100 dB(A) @ 1 m.Adjustable siren time and signalLED flash technologyFlash light can be mounted upwards or downwards

Technical specifications

Operating voltage 10 -15 V/DCCertifications: EN 50131 Grade 3, VSO GS-HFlash frequency 1 HzNiMH battery 7.2 V 330mAh

Dim: (L x W x H) 7.5 x 27.7 x 21 cm

Product type: Sounder

Factory colour: Blue
White

Width: 27.7 cm

Height: 21 cm

Depth: 7.5 cm

Length: 7.5 cm

Emergency piower supply: Yes

Tamperproof: Yes

: IP43

Power supply (LOV): mains-powered
rechargeable

SPL: 100 dB

Operating temperature: -25 to +60 °C

Weight: 1.26 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2620572 ABUS AZSG10011 AZSG10011 Sounder

User & Safety Instructions

User & Safety Instructions 2620572 ABUS AZSG10011 AZSG10011 Sounder

Description

The wire outdoor siren (compact alarm) can be mounted inside and outside your building. The alarm siren with LED flash technology is a combination signal generator and a decisive component of a fully functioning alarm chain. In the event of an alarm, the siren generates a very loud signal tone with over 100 dB sound pressure. The alarm duration is programmable. In addition to acoustic protection, an optical alarm is triggered by a colored flash light visible far away (flash frequency: 1 Hz). The control of siren and flashing light is possible separately. Thus, the flash light can flash until the alarm system is reset manually, while the signal tone ends after a defined time. Further adjustment variants are possible via jumper. The compact alarm system is sabotage-protected via a cover and wall tamper contact. The integrated emergency power supply also leads to an alarm in the event of a sabotage attempt by cutting the cable.

This text is machine translated.

Scope of delivery

ABUS wire-outer siren
Emergency battery (built-in)
ABUS sticker
Fitting Material
User manual.
