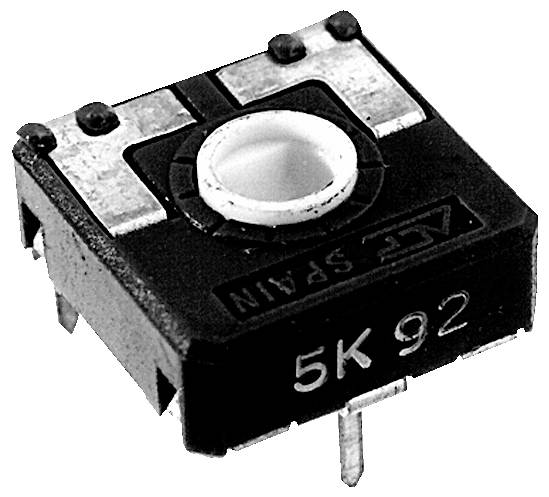

ACP CA14NV12,5-5KA2020 Carbon film pot Enclosed linear 0.25 W 5 kΩ 245 ° 265 ° 1 pc(s)
Product type
Carbon film pot
Resistance
5 kΩ
Resistance characteristic
linear
Power rating
0.25 W
Mechanical angle
265 °
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
ACP e-controller horizontal RM10/12.5 5K
Our service for you
Technical specifications
- Application: 14mm potentiometers are mainly used in control applications in different markets:
- • Electronic household appliances, heating, ventilation and air conditioning (HVAC), thermostats
- • Automotive: HVAC controls, lighting control (position adjustment and sensors), dimmer, seat heater controls
- • Industrial electronics: Multimeters, oscilloscopes, time relays, measurement and test equipment
- ESD Packaging: No ESD
- Series CA14
- Design: Horizontal
- Axle: Slotted hole
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.25 W
- Max voltage 250 V
- Confirmation: From above
- Mechanical rotation angle 265 °
- Electrical angle of rotation 245 °
- Stop strength 10 Ncm
- Torque 2.5 Ncm
- Product type
Carbon film pot
- Potentiometer features
Enclosed
- Resistance
5 kΩ
- Resistance characteristic
linear
- Power rating
0.25 W
- Cut-off voltage
250 V
- Electrical angle
245°
- Mechanical angle
265°
- Tolerance ±
20 %
- Width
14.0 mm
- CS
12.5 mm
- Dim
(L x W) 14.0 mm x 14.0 mm
- Content
1 pc(s)
- Type
CA14NV12,5-5KA2020
- RoHS-compliant
Yes
- Length
14.0 mm
- Mounting type
PCB mount
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- Certification marks
DIN 41450-1-4-5
Documents & Downloads
Datasheet
Datasheet 3464469 ACP CA14NV12,5-5KA2020 Carbon film pot Enclosed linear 0.25 W 5 kΩ 245 ° 265 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464469 ACP CA14NV12,5-5KA2020 Carbon film pot Enclosed linear 0.25 W 5 kΩ 245 ° 265 ° 1 pc(s)
Description
ACP carbon-film trimmer horizontal RM10/12,
This text is machine translated.
This text is machine translated.
Features
- • Resistance element made of plastic carbon film via highly flexible conductive film (carbon film trimmer)
- • Resistant to moisture and mechanical stress
- • Fully enclosed housing prevents the penetration of dust, rosin or other harmful substances
- • Metal parts made of non-ferrous metals prevent oxidation and increase the solderability
- • Very good contact between connections and substrate reduces the contact resistance
- • Used plastics are resistant to cleaning solutions and flame resistant according to flammability class HB according to UL94
- • Very soft, smooth running of the slider across the entire track
- • Rectangular shape allows automatic insertion
- • Double-contact sander in central position in delivery status
- • Pointer position readable on printed scale
