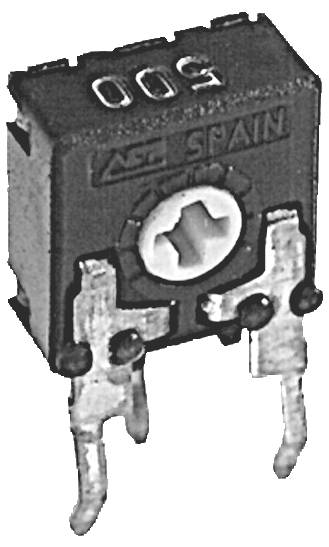

ACP CA6XH2,5-5KA2020 Carbon film pot linear 0.1 W 5 kΩ 1 pc(s)
Product type
Carbon film pot
Resistance
5 kΩ
Resistance characteristic
linear
Power rating
0.1 W
Cut-off voltage
100 V
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
ACP E-regulator vertical RM5/2.5 5K
Our service for you
Technical specifications
- Application: 6mm potentiometers are mainly used in trim applications in different markets:
- • Industry: Timers and relays, dimmers, power control
- • Electronic equipment: Volume control, temperature control and function selection
- • Automotive: Lighting control, dimmer
- • Measuring and testing devices
- • Telecommunications equipment (antenna amplifier and receiver, video communication, intercom)
- • Alarm systems
- ESD Packaging: No ESD
- Series CA6
- Design: Vertical
- Axle: Crosshead
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.1 W
- Max voltage 100 V
- Confirmation: Lateral
- Mechanical rotation angle 235 °
- Electrical angle of rotation 215 °
- Stop strength 4 Ncm
- Torque 2 Ncm
- Product type
Carbon film pot
- Resistance
5 kΩ
- Resistance characteristic
linear
- Power rating
0.1 W
- Cut-off voltage
100 V
- Tolerance ±
20 %
- Width
3.6 mm
- Height
11.0 mm
- CS
5 mm
- Dim
(L x W x H) 6.5 x 3.6 x 11.0 mm
- Content
1 pc(s)
- Type
CA6XH2,5-5KA2020
- RoHS-compliant
Yes
- Length
6.5 mm
- Mounting type
PCB mount
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
25 °C
- Certification marks
DIN 41450-1-4-5
Documents & Downloads
Datasheet
Datasheet 3464480 ACP CA6XH2,5-5KA2020 Carbon film pot linear 0.1 W 5 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464480 ACP CA6XH2,5-5KA2020 Carbon film pot linear 0.1 W 5 kΩ 1 pc(s)
Description
ACP Carbon Film Trimmer vertical RM5/2.5m
This text is machine translated.
This text is machine translated.
Features
- • Resistance element made of plastic carbon film via highly flexible conductive film (carbon film trimmer)
- • Resistant to moisture and mechanical stress
- • Fully enclosed housing prevents the penetration of dust, rosin or other harmful substances
- • Metal parts made of non-ferrous metals prevent oxidation and increase the solderability
- • Very good contact between connections and substrate reduces the contact resistance
- • Used plastics are resistant to cleaning solutions and flame resistant according to flammability class HB according to UL94
- • Very soft, smooth running of the slider across the entire track
- • Rectangular shape allows automatic insertion
- • Double-contact sander in central position in delivery status
- • The pointer position can be read on the printed scale
