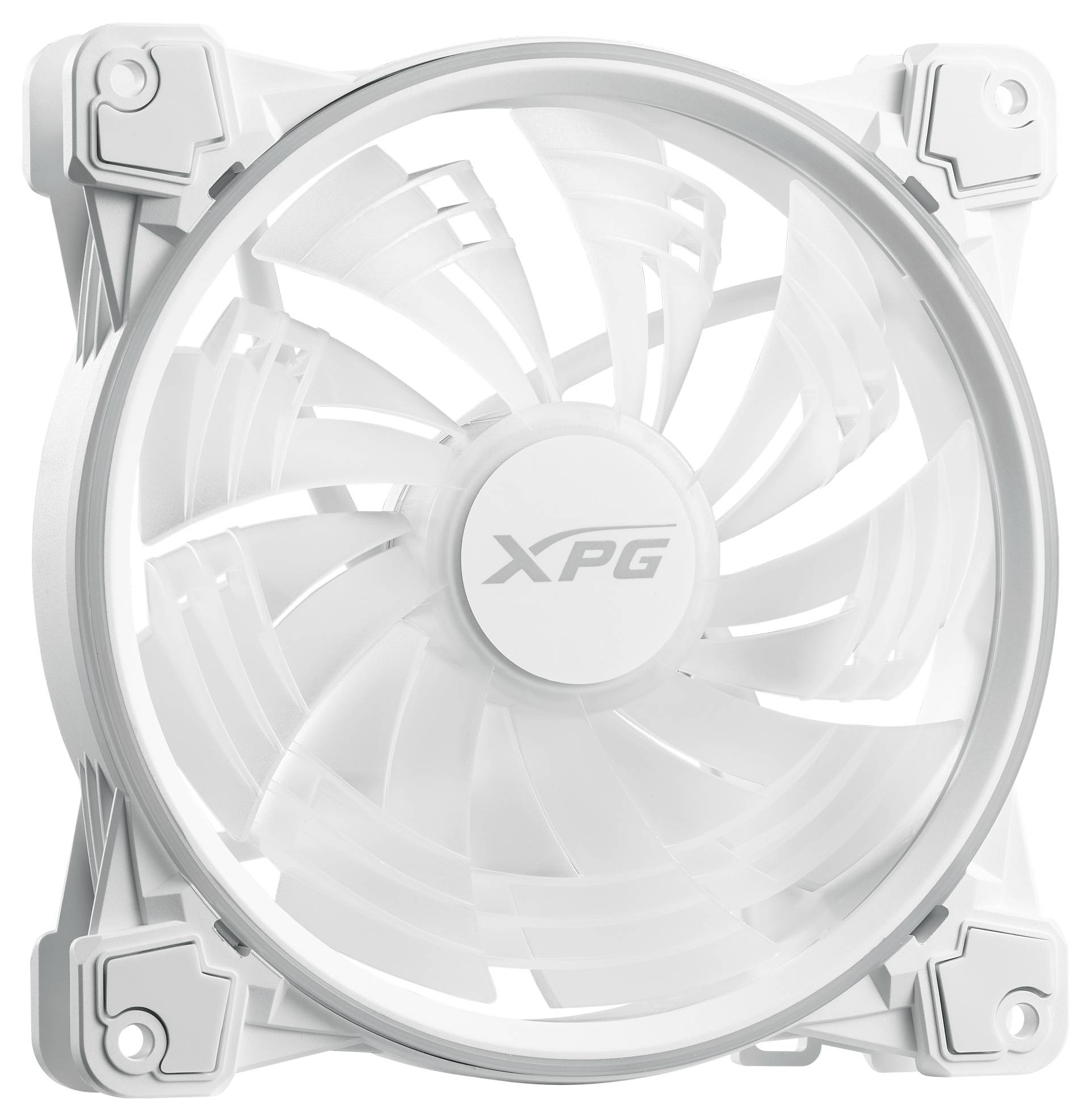

ADATA HURRICANE 140 PC fan White (W x H x D) 140 x 140 x 25 mm
EAN:
Part number:
Item no:
Highlights & Details
ADATA HURRICANE 140 PC fan
- Processor fan 14 cm
- 91 CFM 2.2 mmH2O Fluid dynamic bearing (FDB)
- 140 x 140 x 25 mm
- White
- 1 pieces(s)
Technical specifications
- Fan diameter 14 cm
- Storage type: Fluid dynamic bearing (FDB)
- Number of fans: 1 fans
- 4-pin fan connector
- Product type
PC fan
- Fan size
140 mm
- Noise emission (max.)
28.1 dB
- Noise emission
20.1 dB - 30 dB
- Rotational speed (min.)
700 U/min
- Rotational speed (max.)
1800 U/min
- Connection
4-pin
- Factory colour
White
- Weight
0.000
- Width
140 mm
- Height
140 mm
- Depth
25 mm
- Dim
(W x H x D) 140 x 140 x 25 mm
- Content
1 pc(s)
- Cable length
0.61 m
- Type
Fan
- Illumination LED
yes
- Fan dimensions (W x D x H)
140 x 140 x 25 mm
- Rated voltage
12 V
- Quantity per pack
1 Stück(e)
- Fan power consumption
4.8 W
- Rated current
0.4 A
- Fan's mean time to failure (MTTF)
230000 h
- Starting voltage
3.5 V
- Number of fan blades
9
- Maximum airflow
91 cfm
- Maximum air pressure
2.2 mmwc
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3415166 ADATA HURRICANE 140 PC fan White (W x H x D) 140 x 140 x 25 mm
Description
FEEL THE FORCE
Dual-RING-ARGB-LED-DESIGN
XPG HURRICANE ARGB PWM fans are available in 120 mm and 140 mm models. Both models offer fascinating Dual ring lighting effects and are compatible with the ARGB software of most popular motherboards.
EFFICIENT COOLING PERFORMANCE
The XPG HURRICANE 140 ARGB PWM-fan offers more than just the fascinating Dual-ring light effects. The fan speed is up to 1.800 rpm and the cooling air flow is up to 91 CFM at a static pressure of 2.2 mAq.

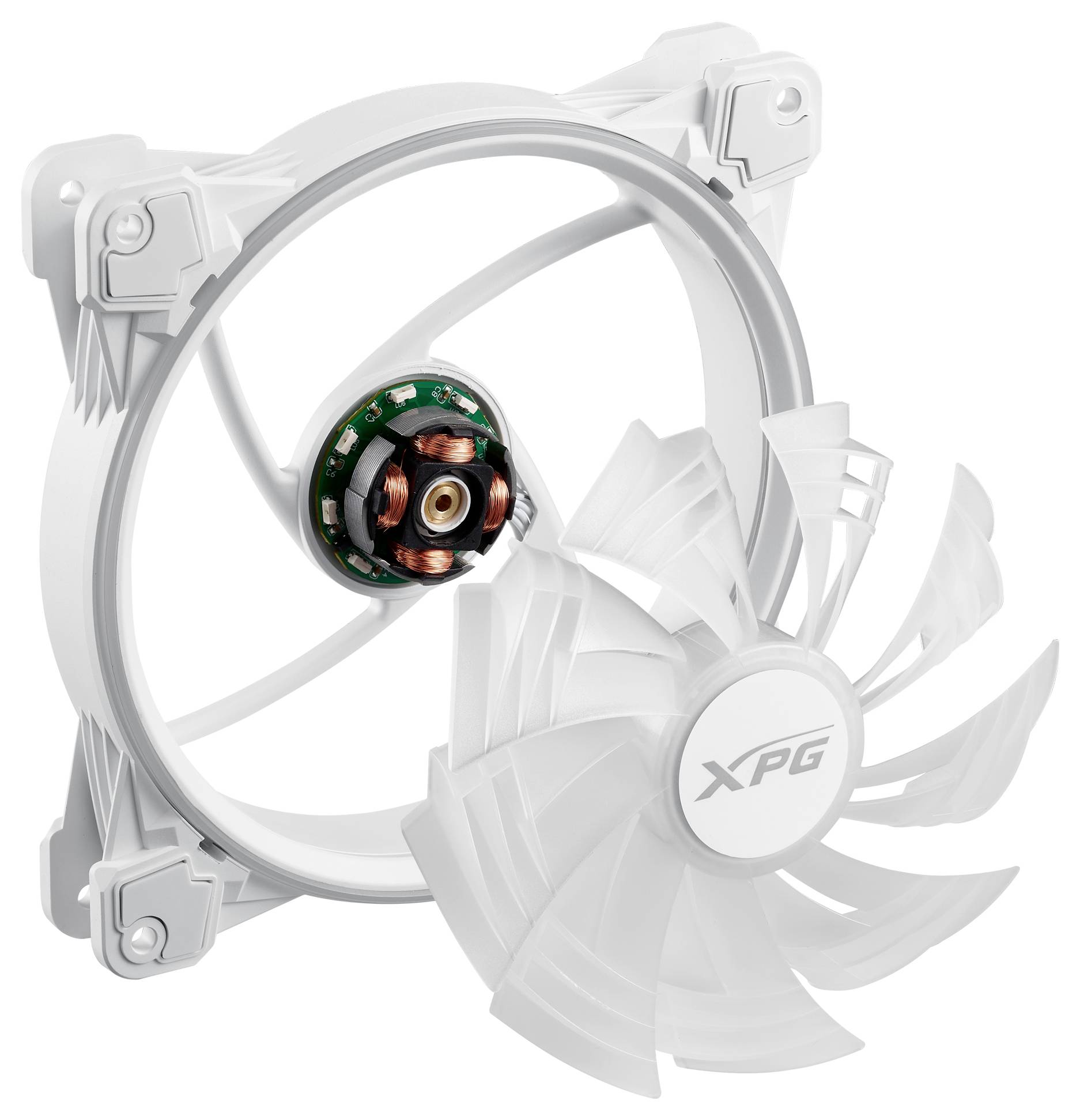

FLUID DYNAMIC BEARING (FDB)
Fluid Dynamic Bearing provides for a smooth operation and thus for a lower noise development, a better cooling performance, a lower power consumption and a longer life of the fan. The fluid provides lubrication between the bearings and the shaft when the shaft turns.
PATENTED FAN BLADE DESIGN
The innovative two-layered fan blade design consists of the main sheet and the booster blade. Both work simultaneously, WAS improves air flow and static pressure while minimizing wind resistance and thus noise during operation.
4-PIN PWM DESIGN WITH DAISY CHAIN CAPABILITY
Thanks to pulse width modulation (PWM), the fan can track the temperature of the component and adjust the speed of the fan accordingly.
QUIET FAN OPERATION
The design of the fan blades as well as the FDB contribute to the overall low-noise operation of the fan. The vibration-inhibiting rubber buffers provide for a further minimization of the noise level, which lies on average at 28.1 dBA.
This text is machine translated.
