Image similar

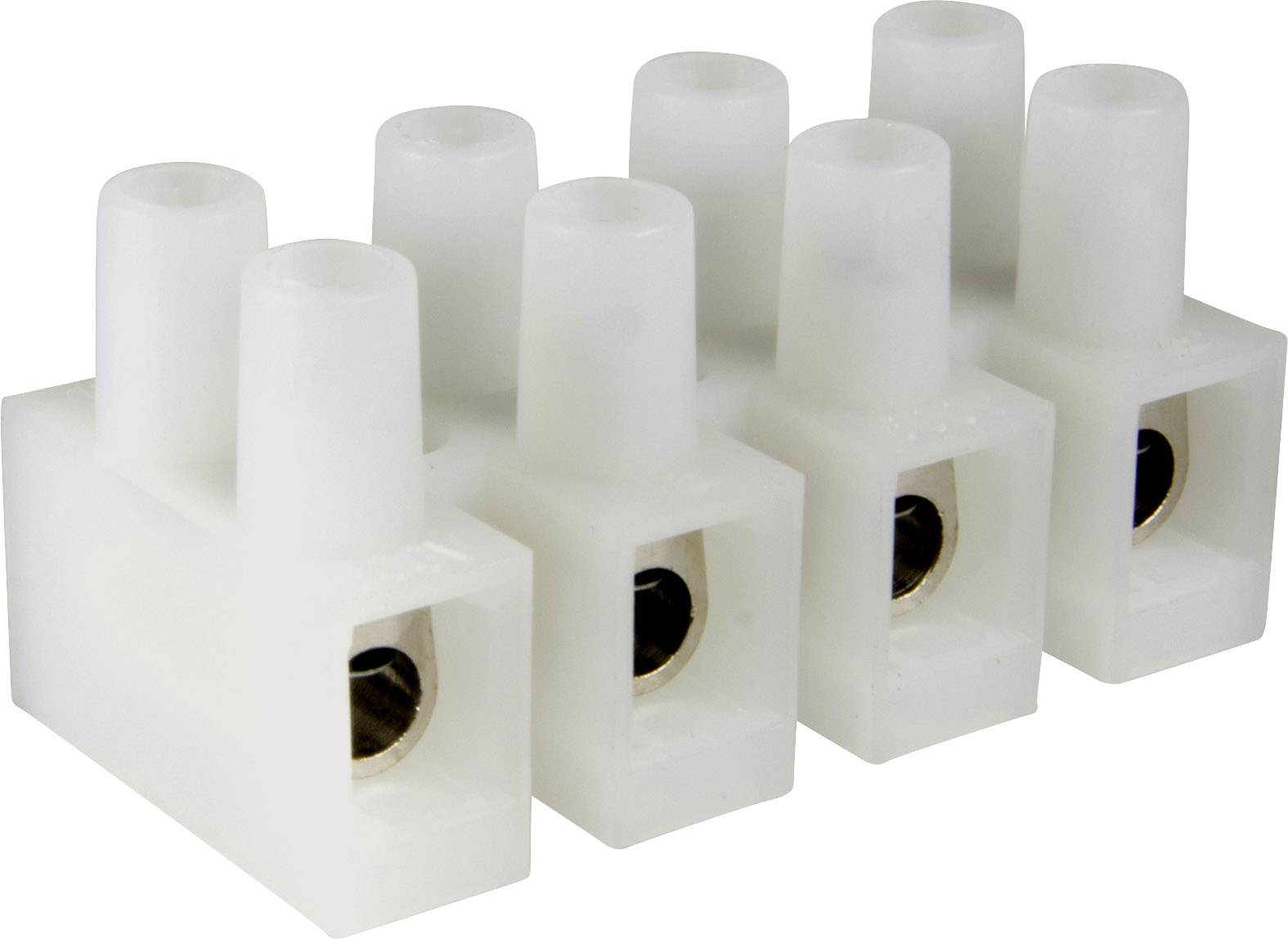

Adels-Contact 127104 Screw terminal flexible: 0.5-6 mm² fixed: - Number of pins: 4 400 pc(s) Ecru
EAN:
Part number:
Item no:
Product type
Screw terminal
Cross section (flexible) (min.)
0.5 mm²
Cross section (flexible) (max.)
6 mm²
Nominal current - rounded value
57 A
Number of pins
4
Technical specifications
- Stripping length min. 8 mm
- Stripping length max. 8.5 mm
- Connection type: Screws
- Flammability rating: V-2
- Wire protection: Yes
- Protection against incorrect insertion: no.
- Insulation material: PA 6
- Terminal points per pole: 1
- Conductor type flexible: Yes
- Conductor type flexible internal: no.
- Conductor type flexible external: no.
- Multi-wire conductor type: Yes
- Conductor type multi-strand internal: no.
- Conductor type: Multi-wire external: no.
- Conductor type rigid: Yes
- Conductor type rigid internal: no.
- Conductor type rigid external: no.
- Center-through protection: no.
- Mounting of contact screw: 0.8x4.0 / 1.2 Nm
- Nominal cross-section: 10 mm²
- Nominal cross-section AWG: 18-8
- Lock: no.
- Product type
Screw terminal
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Number of pins
4
- Factory colour
Ecru
- Content
400 pc(s)
- Manufacturer part #
127104
- Type
127104
18-8
- Stripping length
8.5 mm
- Connection
Screws
- Wire protection
Yes
- Insulation material
Polyamide
- Contact material
Brass
- Nominal voltage
500 V
- RoHS-compliant
Yes
- Temperature range
max. +85 °C
- Type
Terminal
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2270168 Adels-Contact 127104 Screw terminal flexible: 0.5-6 mm² fixed: - Number of pins: 4 400 pc(s) Ecru
Description
Scope of delivery
- 400 pieces: 127104 - 1500/ 4 DS
- This text is machine translated.
