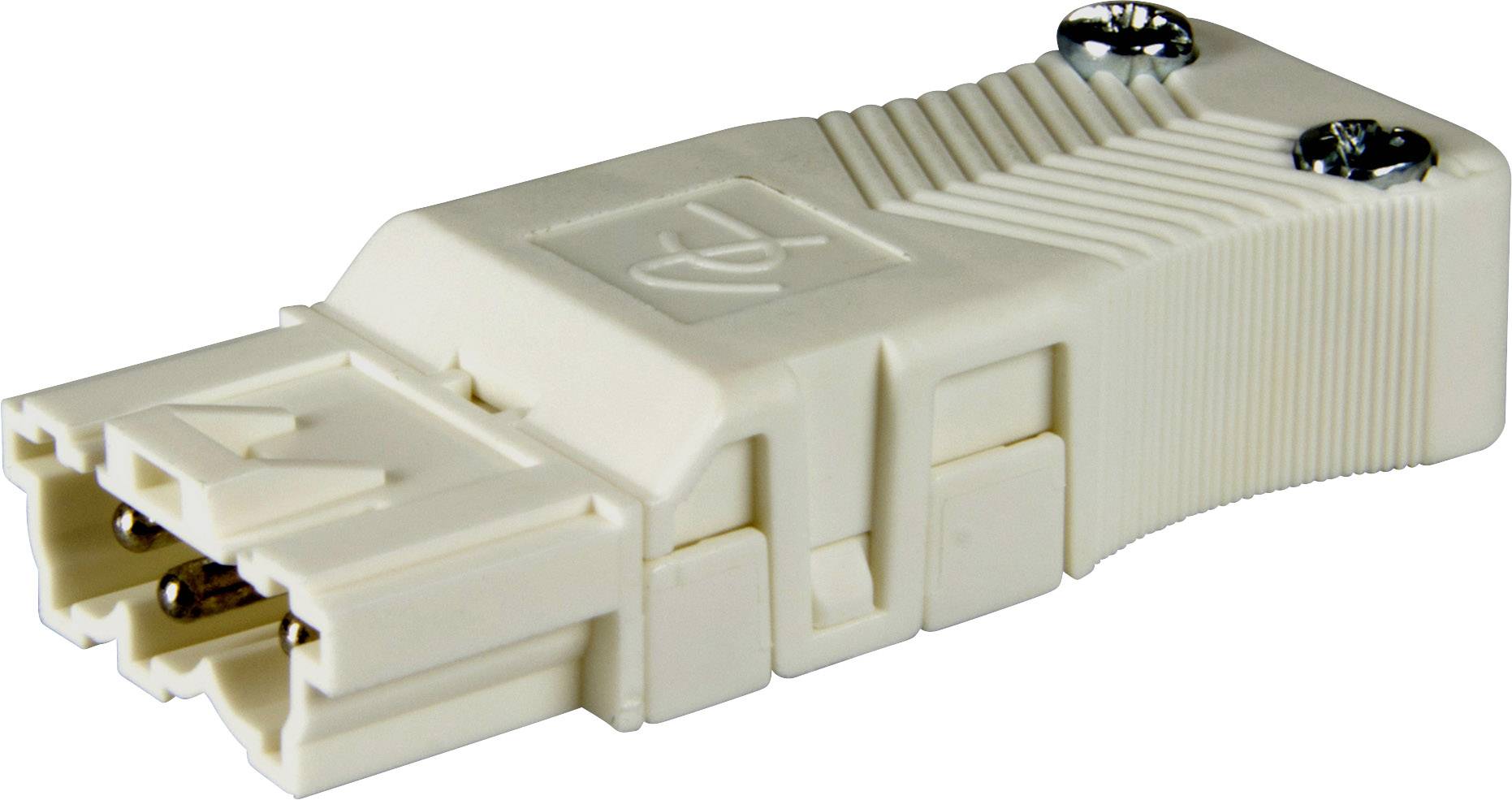

Image similar
Adels-Contact 12753 Mains connector Plug, straight Total number of pins: 3 + PE 16 A White 200 pc(s)
EAN:
Part number:
Item no:
Product type
Mains connector
Connector type
Plug, straight
Total no. of pins
3 + PE
Connection
Screws
Nominal voltage
240 V
400 V
Technical specifications
- Stripping length min. 7 mm
- Stripping length max. 7 mm
- Sheath length 22 mm
- PE cable length 29 mm
- Connection type: Screws
- Flammability rating: V-2
- Wire protection: no.
- Incorrect plug protection: Yes
- IP protection class IP20
- IP protection class plugged: IP40
- Insulation material PA 6.6
- Terminal points per pole: 1
- Conductor type flexible: Yes
- Conductor type flexible internal: no.
- Conductor type flexible external: no.
- Multi-wire conductor type: Yes
- Conductor type multi-strand internal: no.
- Conductor type: Multi-wire external: no.
- Conductor type rigid: Yes
- Conductor type rigid internal: no.
- Conductor type rigid external: no.
- Sheath diameter min.: 5.4 mm
- Sheath diameter max. 9 mm
- Center-through protection: no.
- Mounting of contact screw: PZ 1 / 0.5 Nm
- Mounting ZEL: PZ 1 / 0.5 Nm
- Nominal cross-section 1.5 mm²
- Nominal cross-section AWG: 16
- Nominal surge voltage 4 kV
- Lock: Yes
- Product type
Mains connector
- Connector type
Plug, straight
- Total no. of pins
3 + PE
- Connection
Screws
- Nominal voltage
240 V
400 V
- Factory colour
White
- Content
200 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
16
- Type
Connector
- Case material
PA 6.6
- Manufacturer part #
12753
- Cable Ø (max.)
9 mm
- Cable Ø up to
5.4 mm
- Cable Ø range
5.4 - 9 mm
- Coding
1 (Net)
- Contact material
Brass
- Material (details)
PA 6.6
- Number of pins
3
- RoHS-compliant
Yes
IP20
IP40
- Temperature range
max. +70 °C
- Type
12753
- Leading contact (PE)
Yes
- Insulation material
PA 6.6
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2270355 Adels-Contact 12753 Mains connector Plug, straight Total number of pins: 3 + PE 16 A White 200 pc(s)
Description
Scope of delivery
- 200 pieces: 146453V9 - AC 164 STF/ 3 white EV
