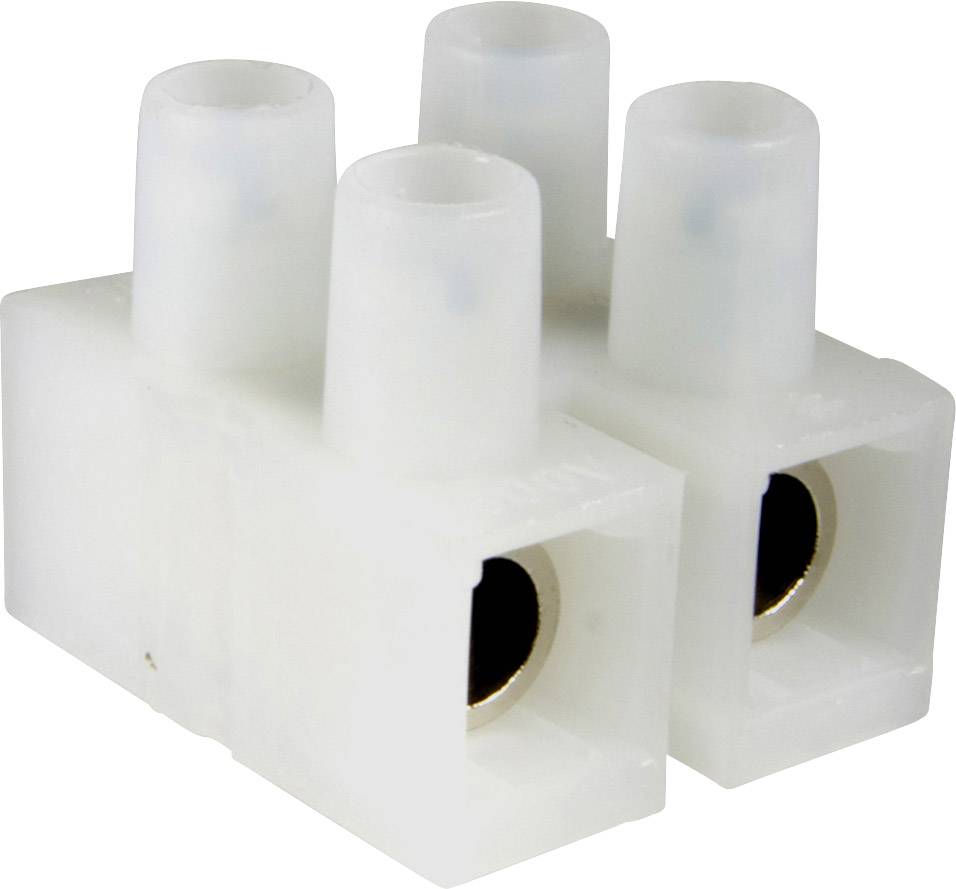

Image similar
Adels-Contact 128302 Screw terminal flexible: 0.5-10 mm² fixed: - Number of pins: 2 120 pc(s) Ecru
EAN:
Part number:
Item no:
Product type
Screw terminal
Cross section (flexible) (min.)
0.5 mm²
Cross section (flexible) (max.)
10 mm²
Nominal current - rounded value
76 A
Number of pins
2
Technical specifications
- Stripping length min. 10 mm
- Stripping length max. 10.5 mm
- Connection type: Screws
- Flammability rating: V-2
- Wire protection: Yes
- Protection against incorrect insertion: no.
- Insulation material: PA 6
- Terminal points per pole: 1
- Conductor type flexible: Yes
- Conductor type flexible internal: no.
- Conductor type flexible external: no.
- Multi-wire conductor type: Yes
- Conductor type multi-strand internal: no.
- Conductor type: Multi-wire external: no.
- Conductor type rigid: Yes
- Conductor type rigid internal: no.
- Conductor type rigid external: no.
- Center-through protection: no.
- Mounting of contact screw 1.0x5.5 / 2.0 Nm
- Nominal cross-section: 16 mm²
- Nominal cross-section AWG: 14-6
- Lock: no.
- Product type
Screw terminal
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Number of pins
2
- Factory colour
Ecru
- Content
120 pc(s)
- Manufacturer part #
128302
- Type
128302
14-6
- Stripping length
10.5 mm
- Connection
Screws
- Wire protection
Yes
- Insulation material
Polyamide
- Contact material
Brass
- Nominal voltage
500 V
- RoHS-compliant
Yes
- Temperature range
max. +85 °C
- Type
Terminal
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2270226 Adels-Contact 128302 Screw terminal flexible: 0.5-10 mm² fixed: - Number of pins: 2 120 pc(s) Ecru
Description
Scope of delivery
- 120 pieces: 128302 - 2000/ 2 DS
- This text is machine translated.
