Image similar

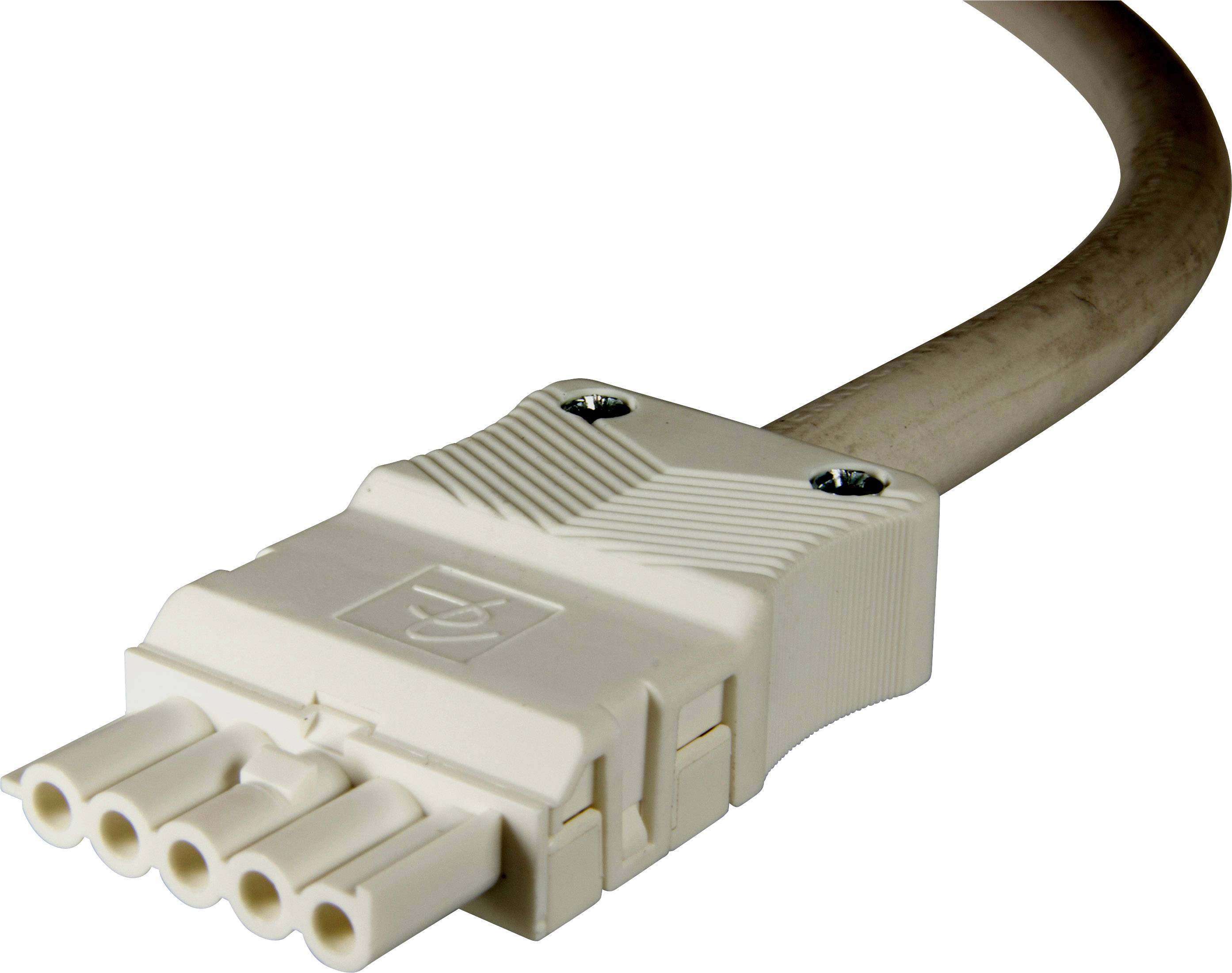

Adels-Contact 14845505 Mains cable Open cable ends - Mains socket Total number of pins: 4 + PE White 0.50 m 30 pc(s)
EAN:
Part number:
Item no:
Product type
Mains cable
Type A
Open cable ends
Type B
Mains socket
Connector type
Socket, straight
Total no. of pins
4 + PE
Technical specifications
- Stripping length min. 7 mm
- Stripping length max. 7 mm
- Sheath length 33 mm
- PE cable length 26 mm
- Wire cross-section 1.5 mm²
- Wire protection: no.
- Incorrect plug protection: Yes
- IP protection class IP20
- IP protection class plugged: IP40
- Insulation material PA 6.6
- Conductor type flexible: Yes
- Conductor type flexible internal: no.
- Conductor type flexible external: no.
- Multi-wire conductor type: no.
- Conductor type multi-strand internal: no.
- Conductor type: Multi-wire external: no.
- Conductor type rigid: no.
- Conductor type rigid internal: no.
- Conductor type rigid external: no.
- Line type: H05VV-F.
- Center-through protection: no.
- Lock: Yes
- Product type
Mains cable
- Type A
Open cable ends
- Type
Connection cable socket
- Factory colour
White
- Type B
Mains socket
- Connector type
Socket, straight
- Total no. of pins
4 + PE
- Content
30 pc(s)
- Material (details)
PA 6.6
- Cable length
0.50 m
- Cores
5
- Manufacturer part #
14845505
- Coding
1 (Net)
- Contact material
Brass
- Nominal voltage
250 V
400 V
- Nominal current
16 A
- Number of pins
4
- RoHS-compliant
Yes
IP20
IP40
- Temperature range
max. +70 °C
- Type
14845505
- Leading contact (PE)
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2269951 Adels-Contact 14845505 Mains cable Open cable ends - Mains socket Total number of pins: 4 + PE White 0.50 m 30 pc(s)
Description
Scope of delivery
- 30 pieces: 14845505 - AC 164 ALSB/515 050 white
- This text is machine translated.
