Adels-Contact 171224 Mains plug (Switzerland) Polyamide Black IP20
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Plug and coupling flat 3-pin 20A/250V IP20
- Individual connection of device plug and coupling to cable
- Connection with screw terminals
- Can be locked to prevent accidental disconnection
- Integrated strain-relief
Technical specifications
- Plug type AC 166
- Socket type AC 166
- L+N+PE pin number (3-pin)
- Product type
Mains plug (Switzerland)
- Material
Polyamide
- Factory colour
Black
IP20
- Dim
(L x W x H) 68.2 x 28 x 12.6 mm
- Width
28 mm
- Height
12.6 mm
- Length
68.2 mm
Documents & Downloads
Datasheet
Datasheet 3399812 Adels-Contact 171224 Mains plug (Switzerland) Polyamide Black IP20
User & Safety Instructions
User & Safety Instructions 3399812 Adels-Contact 171224 Mains plug (Switzerland) Polyamide Black IP20
Description
Plug and clutch AC 166 flat / voltage: 250V / current: 20A / additional function: Lockable, strain relief and screw connection / color: Black / number of poles: 3 / jacket diameter min. 7.5mm max. 8.5mm

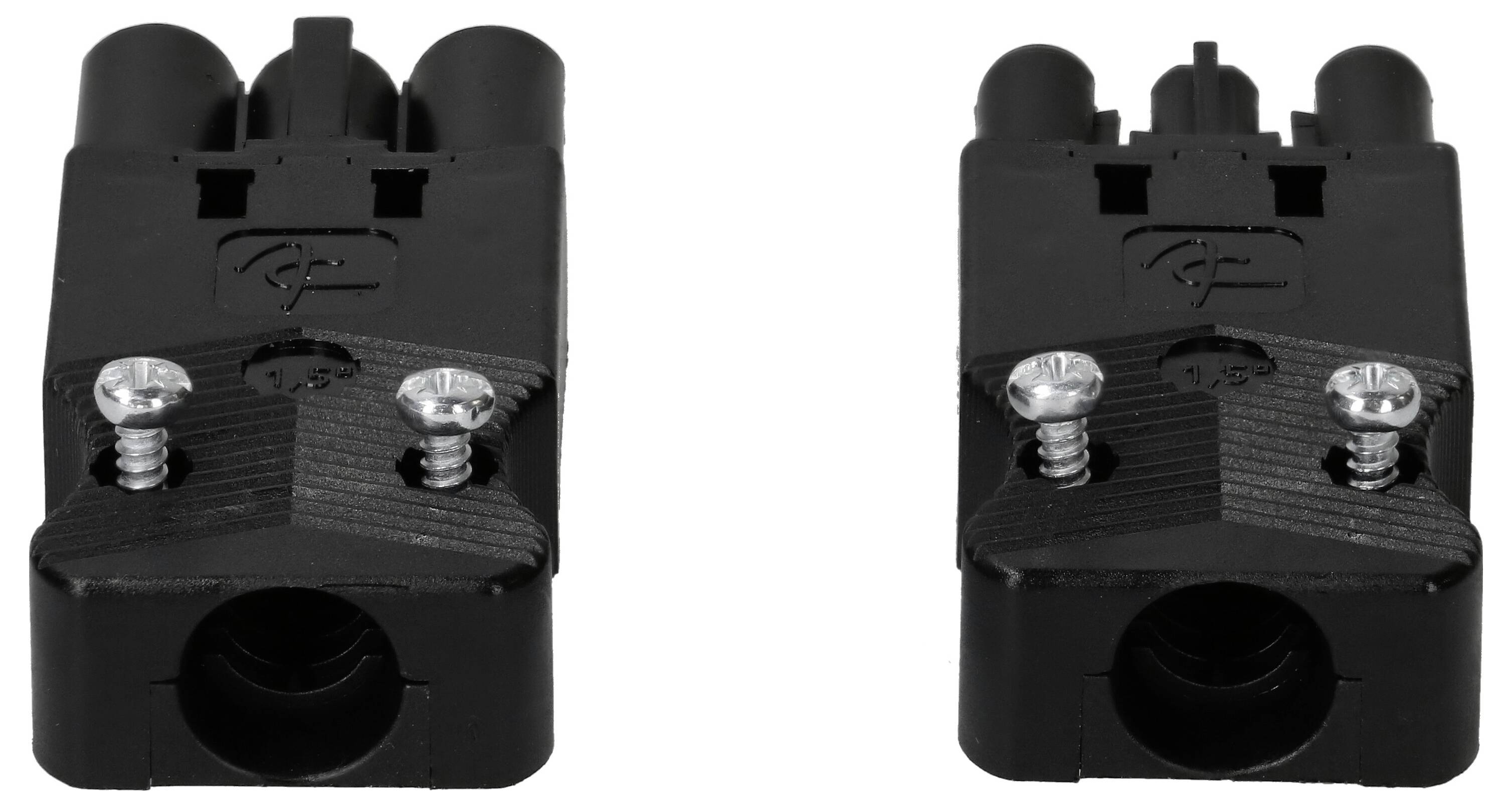

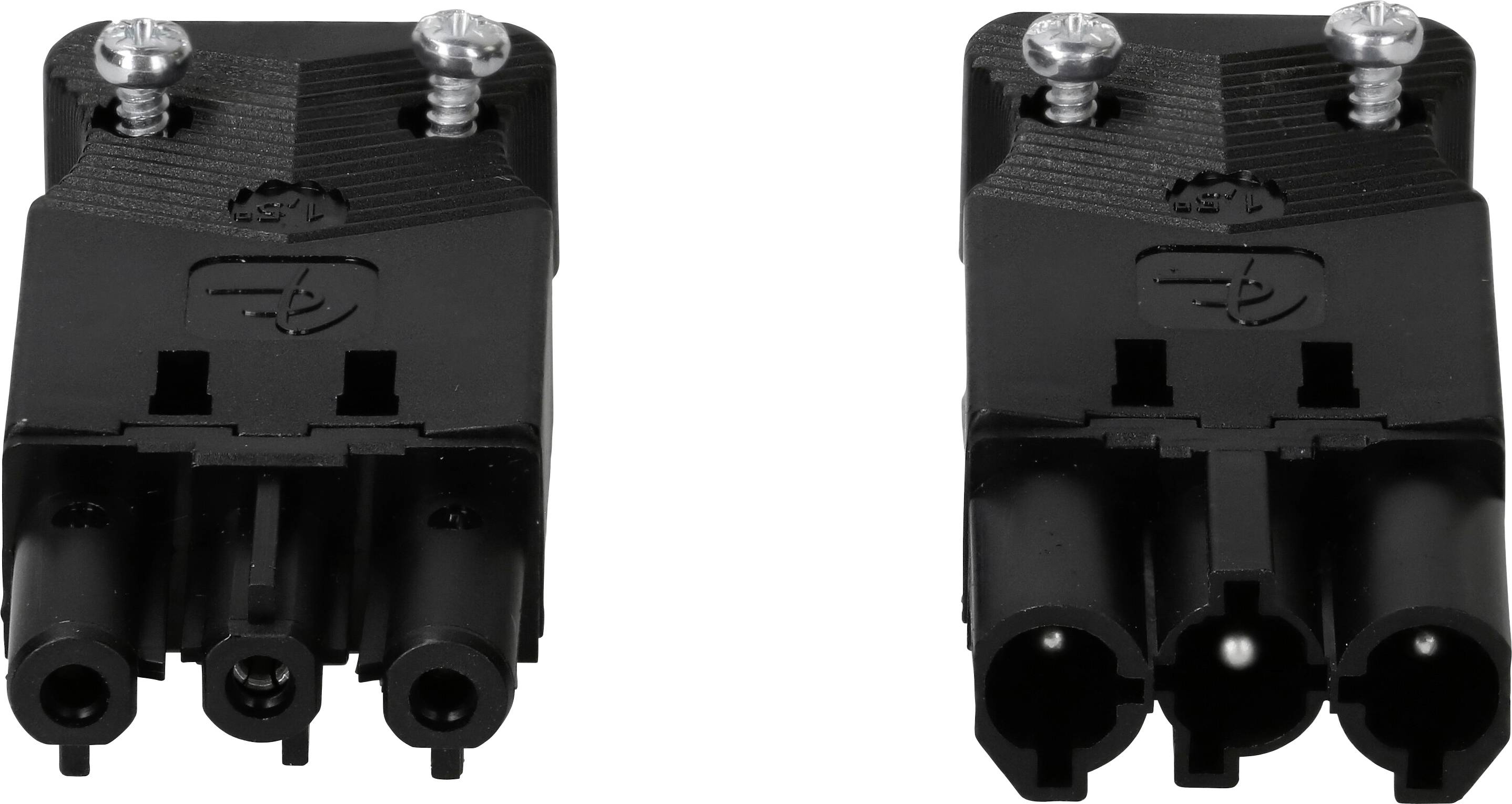

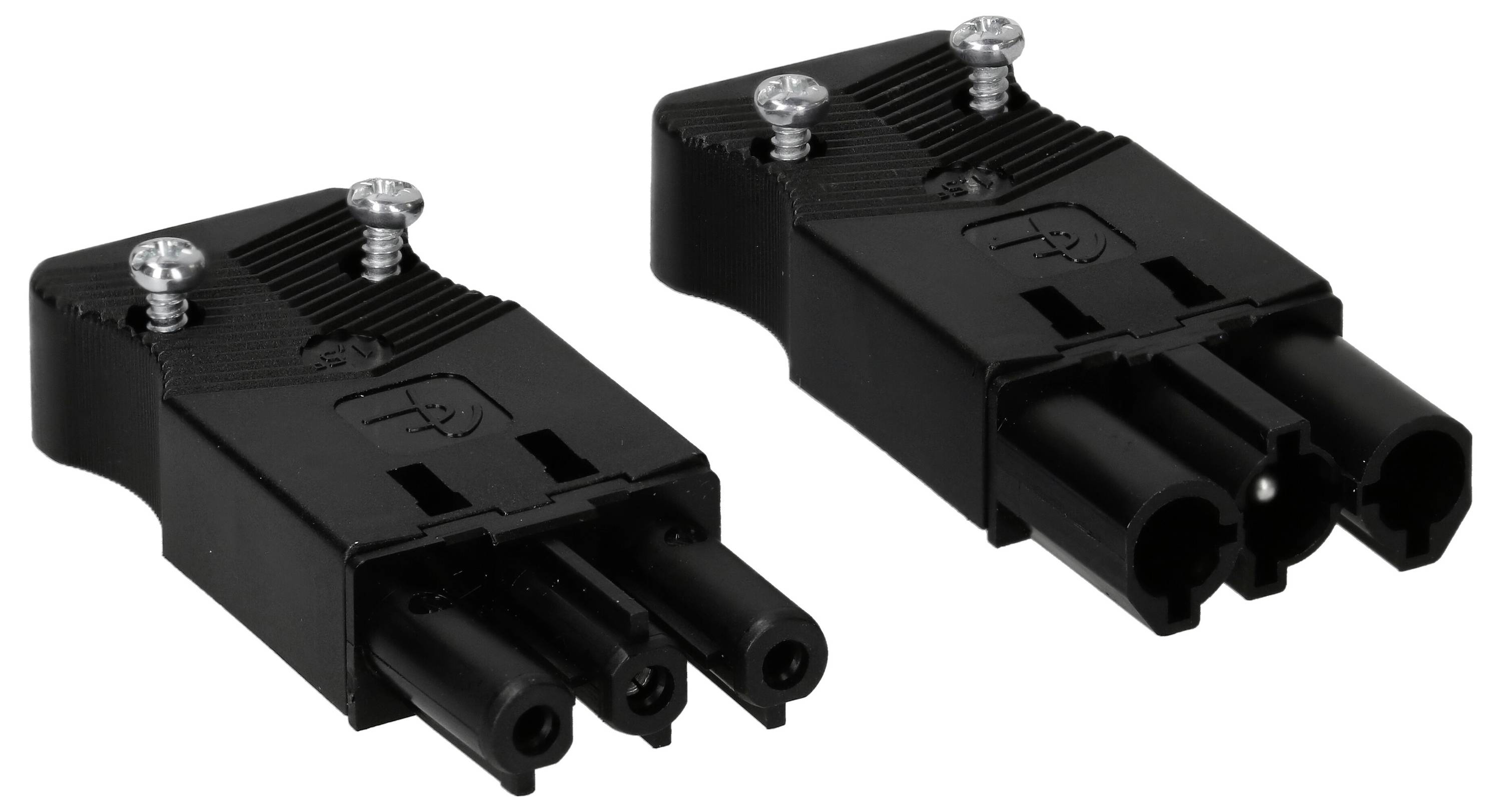

This three-pin installation connector consists of a device plug and a coupling. They are connected to the desired cable by means of screw connections and have a strain relief. To prevent accidental separation, the device plug and device coupler are locked against each other.
This text is machine translated.
This three-pin installation connector consists of a device plug and a coupling. They are connected to the desired cable by means of screw connections and have a strain relief. To prevent accidental separation, the device plug and device coupler are locked against each other.
