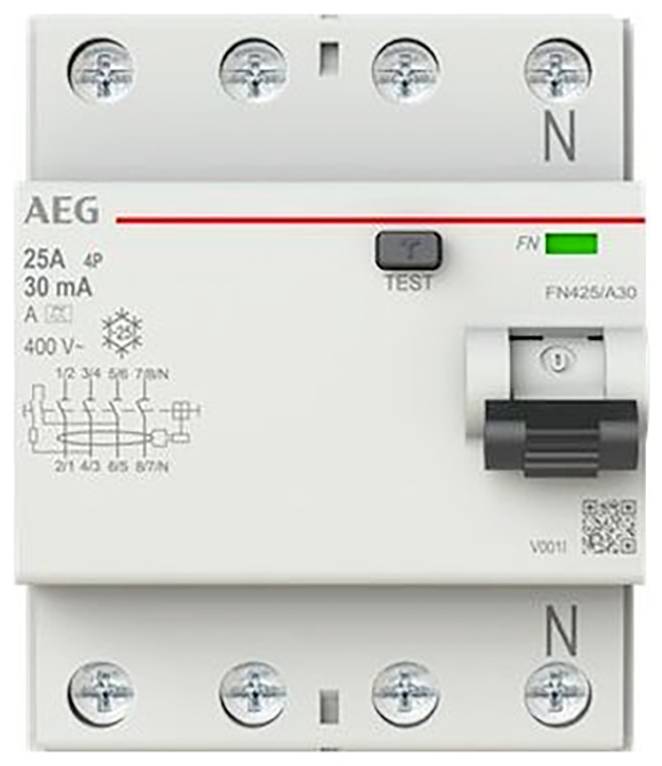

AEG 2CSF704156R1250 RCCB 25 A 0.03 A
EAN:
Part number:
Item no:
Product type
RCCB
Differential current rating
0.03 A
Nominal current - rounded value
25 A
Nominal current
25 A
Content
1 pc(s)
Technical specifications
- Product type
RCCB
- Differential current rating
0.03 A
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3819318 AEG 2CSF704156R1250 RCCB 25 A 0.03 A
Description
RCCB trip detector is designed for detection and protection of faults. They provide fault protection, additional protection (personal protection) and protection in the event of electrically ignited fires due to fault currents against earth. The FN series circuit breakers in the AEG portfolio are used primarily in household and commercial applications. Combined with the wide range of accessories, the portfolio offers everything you need for WAS for your installation tasks. FI types A, AI, AS, B and F. nominal currents from 25A to 100A as well as rated fault currents up to 500mA (30, 300, 500 mA). Type A residual current circuit breakers protect against sinusoidal AC and pulsating currents with a smooth DC fault current share of up to 6mA against earth.
