1/7
EAN:
Part number:
Item no:
Highlights & Details
AG Neovo LCD
- Screen size 60.5 cm (23.8 inch) Full HD, 1920 x 1080 p;Response time: 5 msEnergy efficiency rating (calc): E (A - G)
- Interfaces: VESA Mount 100 x 100 mm
Technical specifications
- Screen technology: LCD
- Panel type VA
- Contrast ratio (dynamic): 20000000:1
- 0.274 x 0.274 mm pixel distance
- Market positioning: Medical
- HDMI Version 1.4
- Panel-mounting interface 75 x 75.100 x 100 mm
- Energy efficiency rating (HDR): Not available
- Product type
LCD
- Resolution (max.)
1920 x 1080 p
- Screen size diagonal (cm)
60 cm
- Screen size diagonal (inches)
23.8 inch
- Screen size diagonal (inches)
24 inch
- Image format
16:9
- Panel technology
VA LCD
- Touchscreen (display)
No
- Frame rate
60 Hz
- Response time
5 ms
- Brightness
250 cd/m²
- Factory colour
White
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- Features
VESA Mount 100 x 100 mm
- Audio power (max.)
4 W
- Power consumption (standby)
0.5 W
- Hor. viewing angle
178°
- Vertical viewing angle
178°
- Display size
24 inch - 29 inch
- Display type
16:9
- Display resolution mode
Full HD
E (A - G)
- Display
60.5 cm (23.8 inch)
- Screen resolution
Full HD (1920 x 1080 Pixel)
- Display (cm)
60.5 cm
- Power consumption (off)
0.3 W
- Power consumption (ON)
18 W
- Device depth (without stand)
56.2 mm
- Display resolution
1920 x 1080 Pixel
- Material (details)
Metal
- Height (without base)
352.6 mm
- Type
External
- Number of speakers
2
- Anti-glare screen
yes
- Operating temperature (T-T)
0 - 40 °C
- Weight (without stand)
7.4 kg
- Width (without stand)
562.4 mm
- Cable lock slot
yes
- Storage relative humidity (H-H)
5 - 95 %
- VESA mounting
yes
- Audio RCA outputs
1
- Height adjustment
no
- NVIDIA G-SYNC
no
- Built-in USB hub
no
- USB Type-A downstream ports quantity
1
- DC-in jack
yes
- DVI port
yes
- Built-in speaker(s)
yes
- Digital horizontal frequency
24 - 83 kHz
- Digital vertical frequency
50 - 75 Hz
- Haze rate
40 %
- DVI-D ports quantity
1
- AMD FreeSync
no
- Composite video out
2
- S-Video inputs quantity
1
- Picture-in-Picture
yes
- NTSC coverage (typical)
72 %
- Composite video in
2
- PC Audio in
yes
- RS-232 ports
1
- Power adapter included
yes
- Flicker-free technology
yes
- Picture-by-Picture (PbP)
yes
- Quick start guide
yes
- Energy consumption (SDR) per 1000 hours
18 kWh
- HDMI
yes
- Operating relative humidity (H-H)
10 - 90 %
- Storage temperature (T-T)
-20 - 60 °C
- Package weight
10.6 kg
- Built-in camera
no
- Glass thickness
3 mm
- Power cable length
5 m
- Light sensor
yes
- Micro HDMI ports quantity
1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3843214 AG Neovo LCD EEC E (A - G) 60.5 cm (23.8 inch) 1920 x 1080 p 16:9 5 ms VA LCD
Description

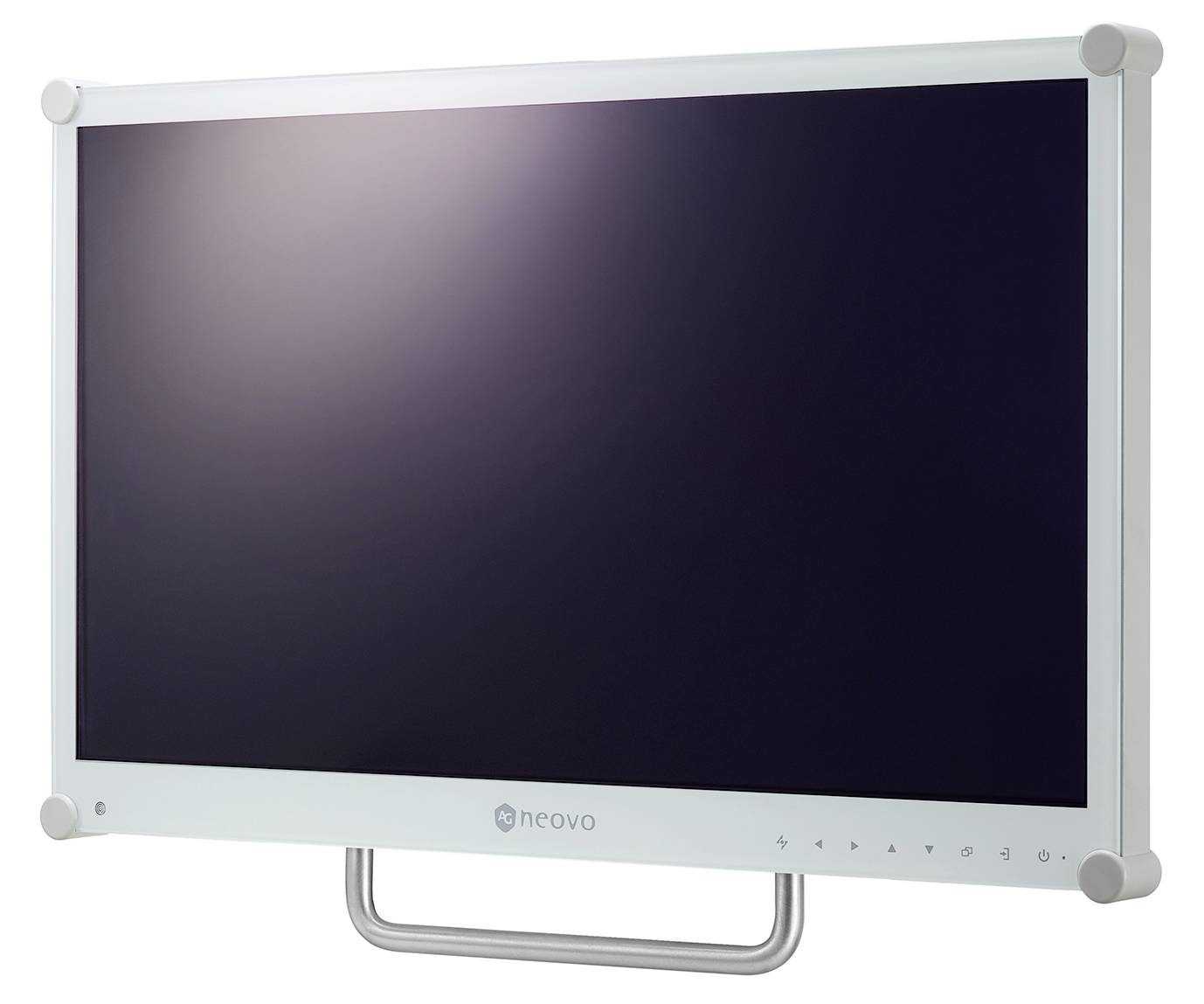

DR-24G
The AG Neovo DR-24G is a 24-L dental monitor that switches to the Illuminator mode at the touch of a button to view classic X-ray films, thus eliminating the need for a separate X-ray box. Thanks to modern gamma correction, black value selection and Hohem contrast value, dentists can check tooth and bone status of the patient before treatment. The NeoV™ glass surface, the white metal housing, meets medical-grade cleaning and disinfection requirements.
VERSATILITY AND ADAPTABILITY
The DR-Series is equipped with an IEC / EN 60601-1 certified 24 V DC power supply and is thus perfectly suitable for longer supply lines (up to 5 meters) between devices and displays. The display is compatible with VESA standard mounts and can be mounted on a swivel arm with optional handles for easy movement.
EASY TO CLEAN AND ROBUST PROTECTION
The DR-24G with NeoV™ glass surface and white metal housing is dust and waterproof, providing easy cleaning and robust protection.

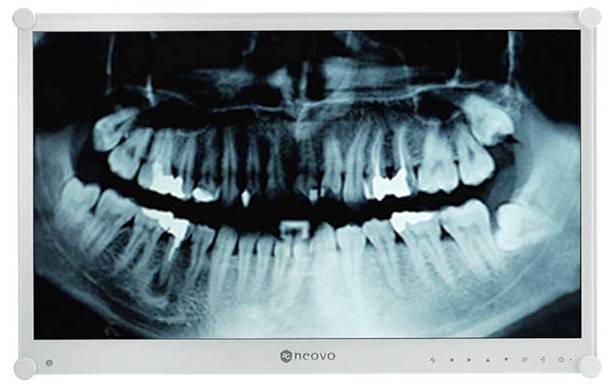

QUICKLY SWITCH TO X-RAY VIEWING MODE
The DR-24G 24″ dental monitor has built-in hot-key operation to switch to X-ray viewing mode, saving you from an X-ray viewing box.
PIP/PBP SUPPORT
PiP/PbP functions enable the simultaneous viewing and comparison of two images from different sources.
MOBILITY
The DR-24G is equipped with VESA mounting devices (75 mm/100 mm) and an optional handle for maximum flexible installation and operation on the treatment chair.
This text is machine translated.
Features
- 1920 x 1080p Full HD resolution
- Medical Grade Power supply in accordance with EN/IEC 60601-1

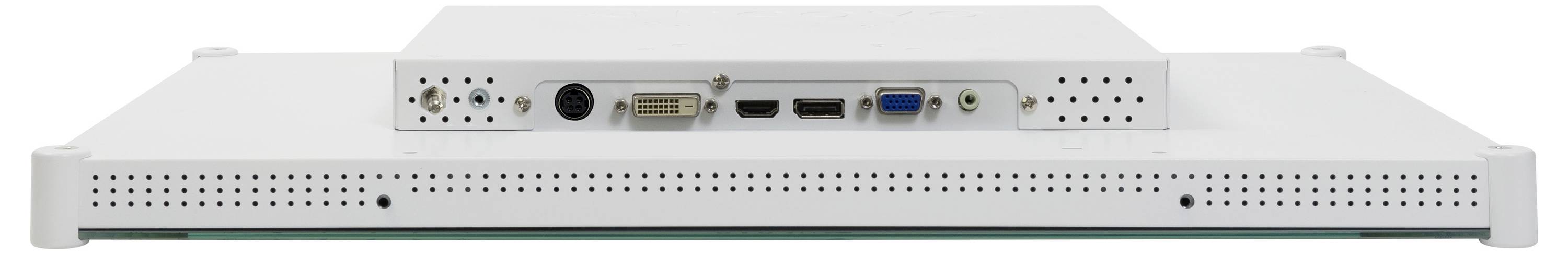

- VGA, DVI, HDMI, DISPLAYPORT, BNC, S-video inputs and 2 speakers
- NeoV™ Optical Glass and metal housing for clinical hygiene
- Metal housing
- Quick switching in the X-ray Illuminator Mode
- Optional clip for X-ray recordings and hand-grip for easy handling at the dental unit
Scope of delivery
- Cable
- Quick guide.
