Akyga AK-EC-24 eMobility charging cable [1x CEE plug - 1x GB/T (20234.2-2015) plug] 5 m Flame-retardant
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications

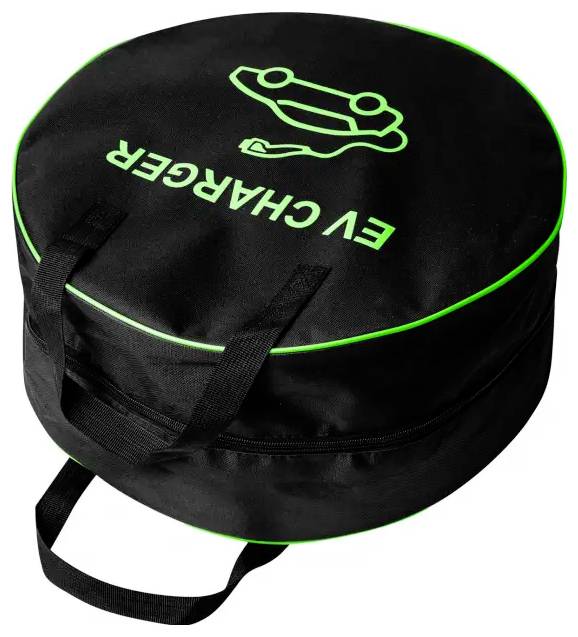

- Packing: Protective bag
- Grounding: Yes
- Cable length: 5 m

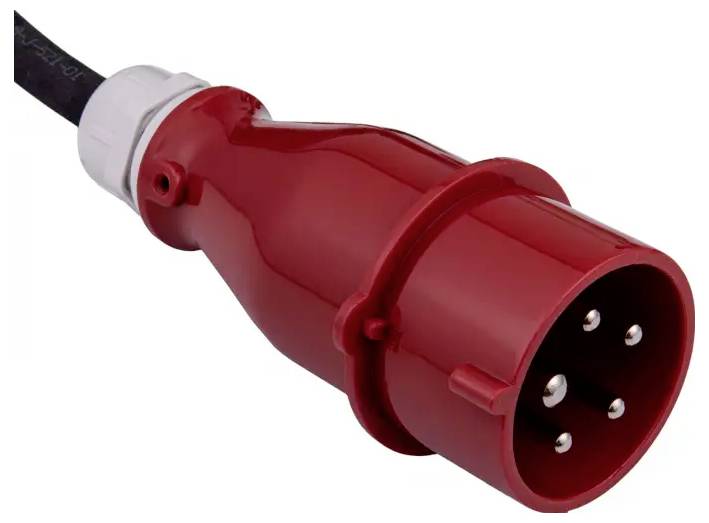

- Connection 1:CEE 5-pin (IEC 60309)

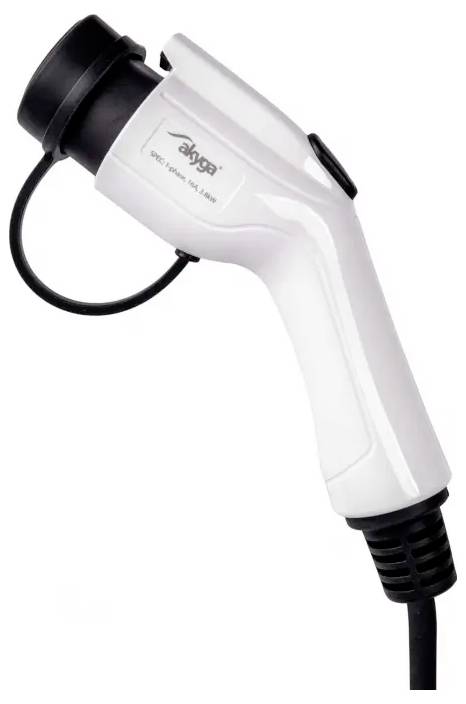

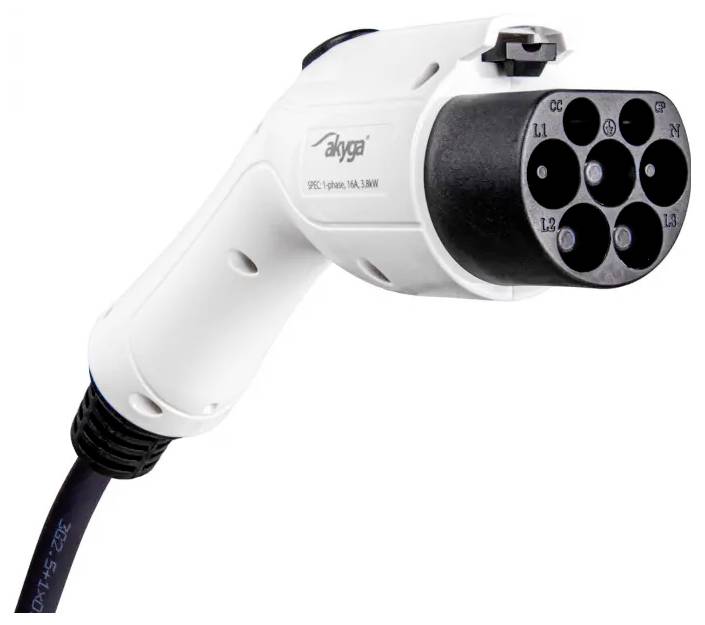

- Connection 2: GB/T (20234.2-2015) plug
- Material of the cable: Copper
- Wire average: 5 x 6 mm² + 2 x 0.5 mm²
- Product color: Blue
- Power supply voltage 240-450 V/50/60 Hz
- Number of phases: 3 phases
- Max. Current 32 A.
- Power: 22 kW
- Flame protection UL94V-0
- IP rating: IP54
- Manufacturing material: ABS
- OVP fuse: Yes
- OCP Backup: Yes
- OTP fuse: Yes
- OPP fuse: Yes
- SCP fuse: Yes
- MTBF 10000 h
- Display: Yes
- Accessories included: AK-AC-02
- Henkel on the padlock: No.
- Insulation material TPE
- Product type
eMobility charging cable
- Type A
CEE plug
- Type B
GB/T (20234.2-2015) plug
- No. of phases
3-phase
- Cable length
5 m
- Cable features
Flame-retardant
- Nominal voltage
450 V AC
- Nominal current
32 A
- Nominal current - rounded value
32 A
IP54
- Min. temperature
-30 °C
- Max. temperature
50 °C
- Charging capacity
22 kW
- Charging current
32 A
- Factory colour
Blue
- No. of A connectors
1 x
- No. of B connections
1 x
Copper
- Weight
3.7 kg
Documents & Downloads
Datasheet
Datasheet 3731389 Akyga AK-EC-24 eMobility charging cable [1x CEE plug - 1x GB/T (20234.2-2015) plug] 5 m Flame-retardant
User & Safety Instructions
User & Safety Instructions 3731389 Akyga AK-EC-24 eMobility charging cable [1x CEE plug - 1x GB/T (20234.2-2015) plug] 5 m Flame-retardant
Description

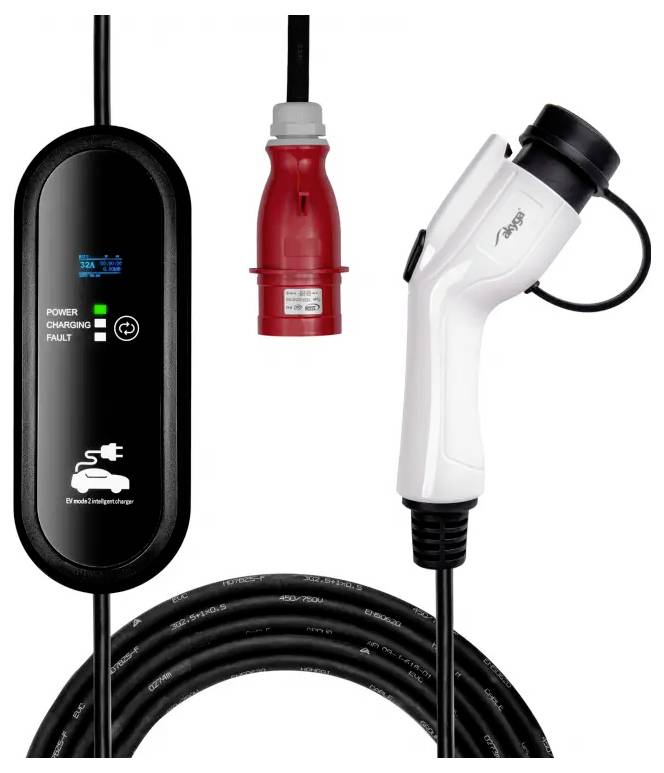

Akyga® AK-EC-24 is a three-phase GB/T charger designed for electric vehicles imported from China. This professional solution eliminates the compatibility problem between the GB/T standard and European charging stations. The adapter allows quick charging at home — without the need to use public charging stations. The adapter enables owners of electric vehicles from manufacturers BYD, NIO, Xpeng and SAIC to make full use of the Polish and European retail network.
An alternative way to charge Chinese electric vehicles
The AK-EC-24 GB/T charger has a three-phase CEE 5-pin plug (400 V), which allows charging up to 22 kW — much faster than single-phase solutions. This makes it Ideal for use in the domestic garage. It is a practical and economical option for any standard GB/T vehicle that requires a reliable power source every day.
Adjustable charging current – full control over the power
The AK-EC-24 enables the manual adjustment of the charging current and offers five selectable levels: 8 A, 10 A, 13 A, 16 A and 32 A. This gives the user the flexibility to adapt the charging current to its electrical installation or to temporary conditions – for instance, to reduce the load on a household circuit. This function is important for greater safety and comfort, especially when charging at different locations.
A handy replacement for a lost or damaged GBT charger
The AK-EC-24 model is also an ideal replacement, if the original charger is lost or damaged. Its rugged design, reliable connections and full compatibility with the Chinese-made electric cars BYD, NIO, Xpeng and SAIC mean that the adapter can safely and effectively replace the factory equipment — without compromising on quality or performance.
Advanced security protocols

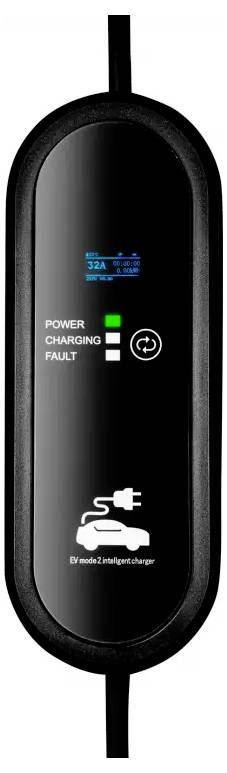

The built-in LCD screen allows you to monitor the operating parameters in real time – voltage, current, power consumption and charging time. Built-in safety features (over-voltage, overload and overheating protection) protect both the vehicle and the user and throughout the charging process.
Ready for use under different conditions
The 5 meter long cable enables you to connect your vehicle also in less favorable places. The IP54-certified casing is resistant to external influences and enables the use of the charger even under slightly more difficult weather conditions, e.g. in open objects or under a roof.
This text is machine translated.
