Name: Akyga AK-EV-13 Charger Suitable for: Electric scooter Black
Brand: Akyga
SKU: 2588261
Availability: SoldOut

Technical specifications

Supply voltage 100-240 V.Power consumption: Less than 2.5 A.Performance: Greater than 80%Current output 42 VOutput current 4 A.Output cable Cannon (3 DIN) XLR (m)Maximum power 168 W.Mechanical switch: No.Earthing: Without (II protection class)OVP fuse: YesOCP fuse: YesOPP fuse: YesSCP fuse: YesManufacturing material: ABSDisplay: No.MTBF 10000 hProduct dimensions (L x W x H): 180 x 80 x 40 mmPacking dimensions (L x W x H) 220 x 120 x 50 mmNet weight 695 gGross weight 780 gIP Rating: IP20Output cable length 1 mPin of a socket: IEC C8Soft Start: YesSupply cable in the set: No.Illumination color: Two-color diode

Product type: Charger

Weight: 695 g

Factory colour: Black

Suitable for: Electric scooter

Width: 80 mm

Documents & Downloads

Datasheet

Datasheet 2588261 Akyga AK-EV-13 Charger Suitable for: Electric scooter Black

User & Safety Instructions

User & Safety Instructions 2588261 Akyga AK-EV-13 Charger Suitable for: Electric scooter Black

Warranty Terms

Warranty Terms 2588261 Akyga AK-EV-13 Charger Suitable for: Electric scooter Black

Description

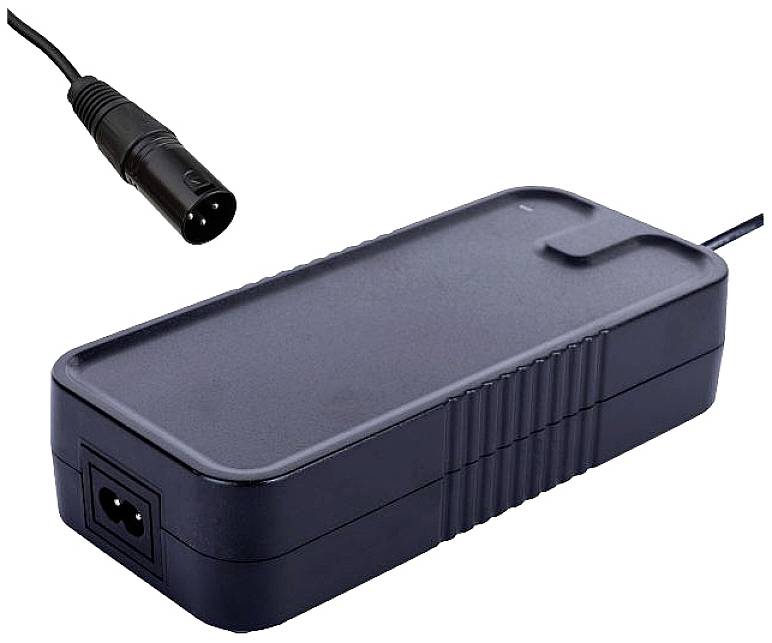

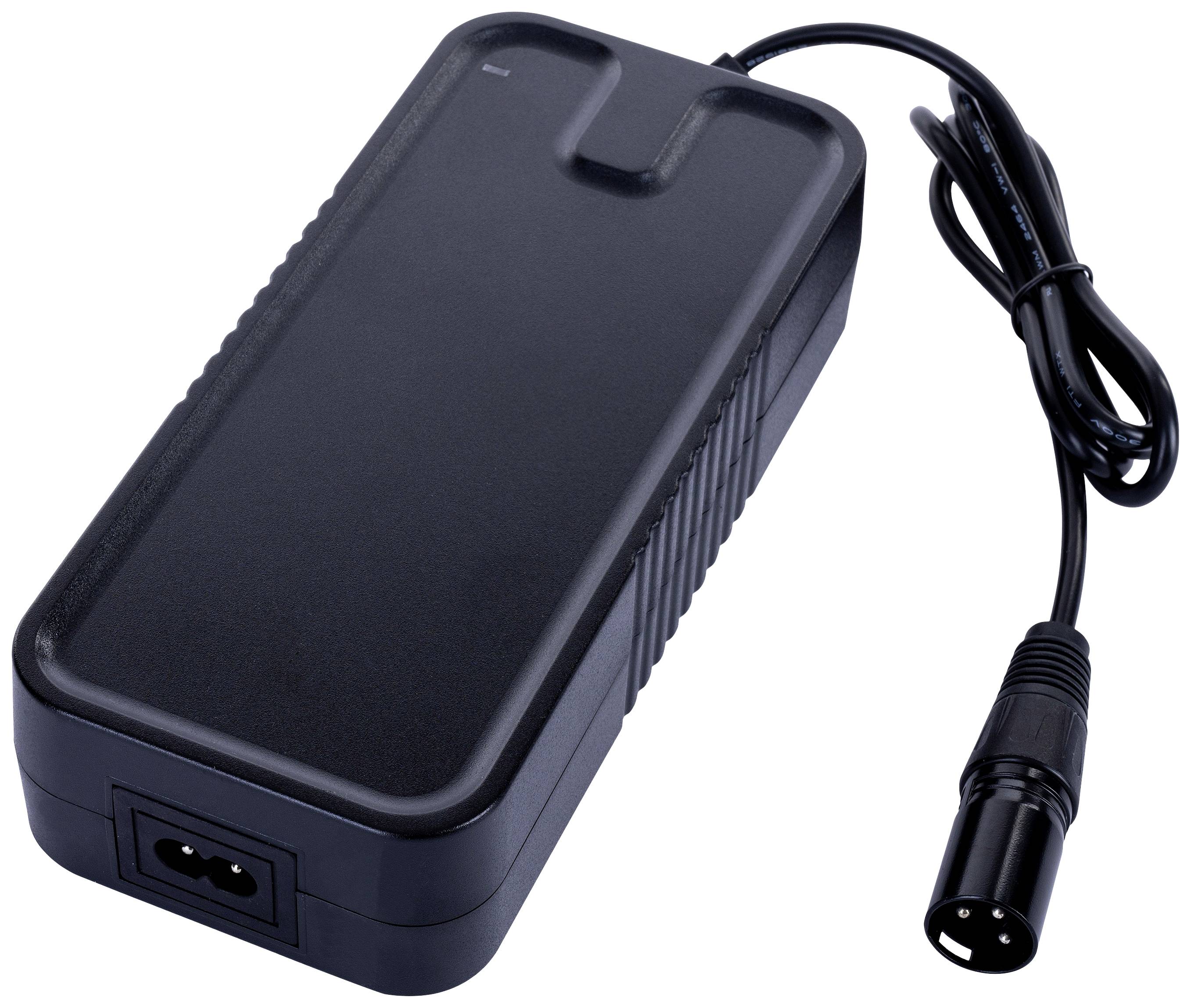

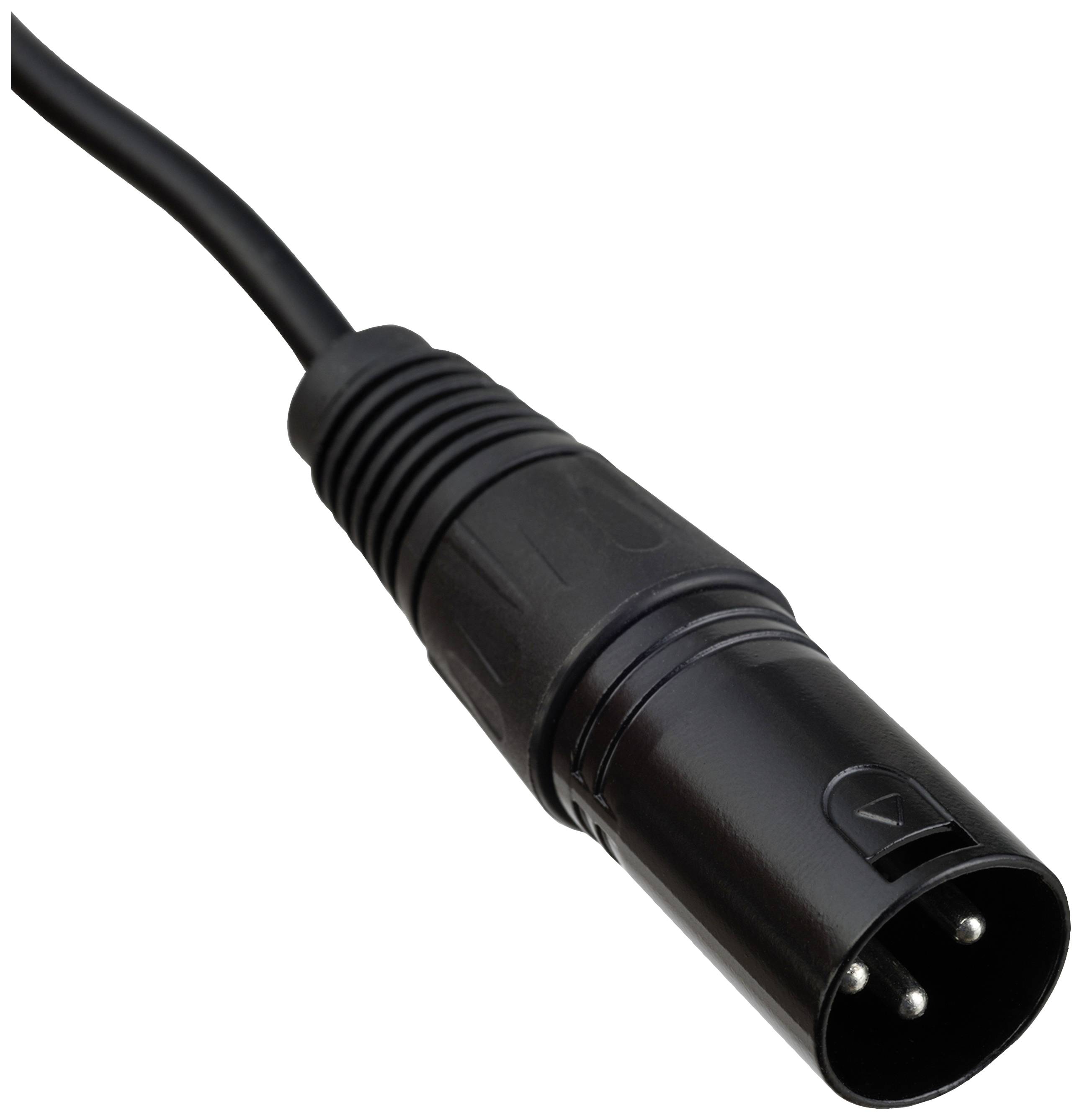

Akyga® AK-EV-13 is a charger for electric bicycles. It has a high-quality 3-pin XLR plug, tooCannon. This connector is often used in professional audio devices, industrial machines and electric vehiclesused. You can use it to charge e-bikes and electric scooters from brands such as Giant, Koga or Sparta.In addition, the power supply provides 42 V/4 A, which makes charging a lithium-ion battery in an E-vehicle muchIs shorter than a conventional 2 A charger. An undeniable advantage of the charger is that it is not fixedConnected power cable. This allows you to adapt the charger to your own needs. If you are in theTraveling abroad, you do not need to buy another power supply, but only the suitable cable for the socket inYour country.

This text is machine translated.

Description

Akyga® AK-EV-13 is a charger for electric bicycles. It has a high-quality 3-pin XLR plug, tooCannon. This connector is often used in professional audio devices, industrial machines and electric vehiclesused. You can use it to charge e-bikes and electric scooters from brands such as Giant, Koga or Sparta.In addition, the power supply provides 42 V/4 A, which makes charging a lithium-ion battery in an E-vehicle muchIs shorter than a conventional 2 A charger. An undeniable advantage of the charger is that it is not fixedConnected power cable. This allows you to adapt the charger to your own needs. If you are in theTraveling abroad, you do not need to buy another power supply, but only the suitable cable for the socket inYour country.

This text is machine translated.
