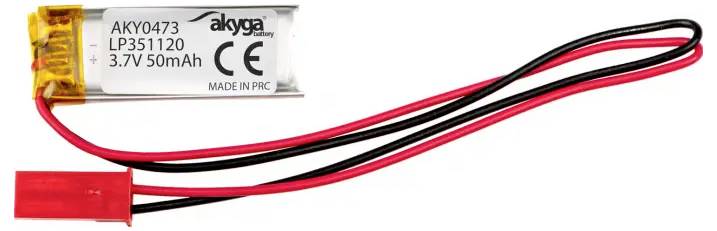

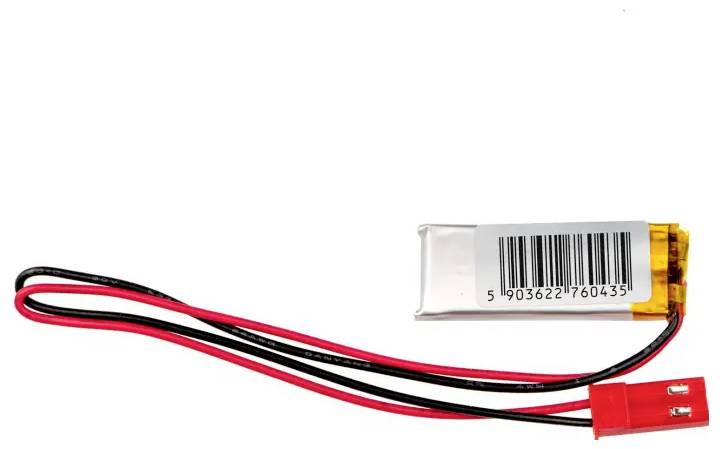

Akyga Scale model battery pack (LiPo) 3.7 V 50 mAh JST-SYP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- PCM fuse
- Lead: Wires, connector + socket
- Connector type 2.54 JST, 2 pin
- Connector part number: JST SYP-02T-1
- Technology
LiPo
- Product type
Scale model battery pack (LiPo)
- Voltage
3.7 V
- Capacity (mAh, Ah)
50 mAh
- Weight
2 g
- Dim
(Ø x H) 20 mm x 3.5 mm
- Connector system
JST-SYP
- Height
3.5 mm
- Width
11 mm
- Manufacturer part #
AKY0473
- Content
1 pc(s)
- (Ø)
20 mm
- Range of use
Model making
Documents & Downloads
Datasheet
Datasheet 3841249 Akyga Scale model battery pack (LiPo) 3.7 V 50 mAh JST-SYP
User & Safety Instructions
User & Safety Instructions 3841249 Akyga Scale model battery pack (LiPo) 3.7 V 50 mAh JST-SYP
Description
The lithium polymer battery is a high-quality power source with a wide range of applications. The nominal voltage is 3.7 V and the capacity is 40 mAh. The PCM protects against battery damage from short circuit, excessive discharge or charging. To facilitate the installation of the battery, two 150 mm long cables with 2.54 JST connectors and 2 pins are led out. The technology used enables a small battery size without restricting the freedom in selecting the capacity. For this reason, Akyga Ideal lithium polymer batteries are suitable for supplying power to all types of portable devices of different sizes and shapes.
Improper use can damage them. Read the rules for using lithium-polymer batteries before using them.
This text is machine translated.
Improper use can damage them. Read the rules for using lithium-polymer batteries before using them.
This text is machine translated.
