All steel screw clamp GZ-K 1250/120 Bessey GZ125K Span width (max.):1250 mm Nosing length:120 mm

EAN:
Part number:
Item no:
A G-clamp with a metal frame, screw mechanism and removable pressure plate. Arrows indicate the insertion and removal of the pressure plate.

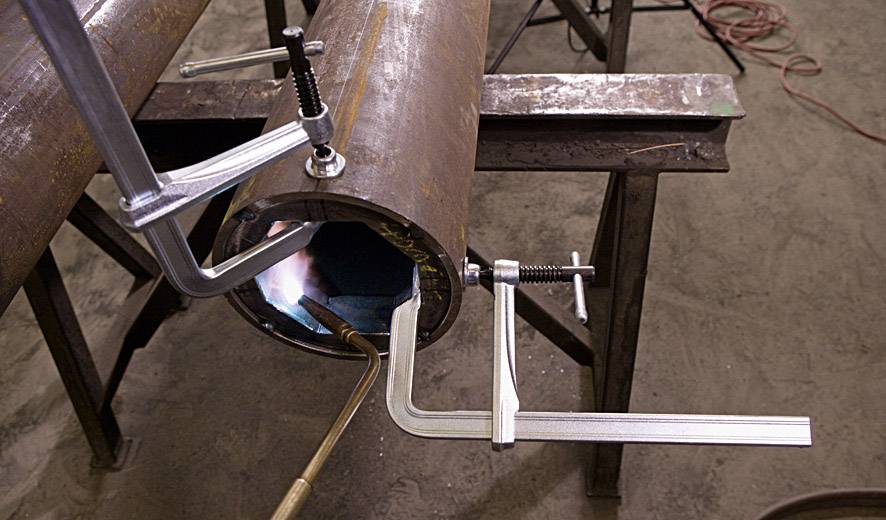

A metal pipe is secured to a table with two G-clamps. A blowtorch heats the inner area of the pipe.

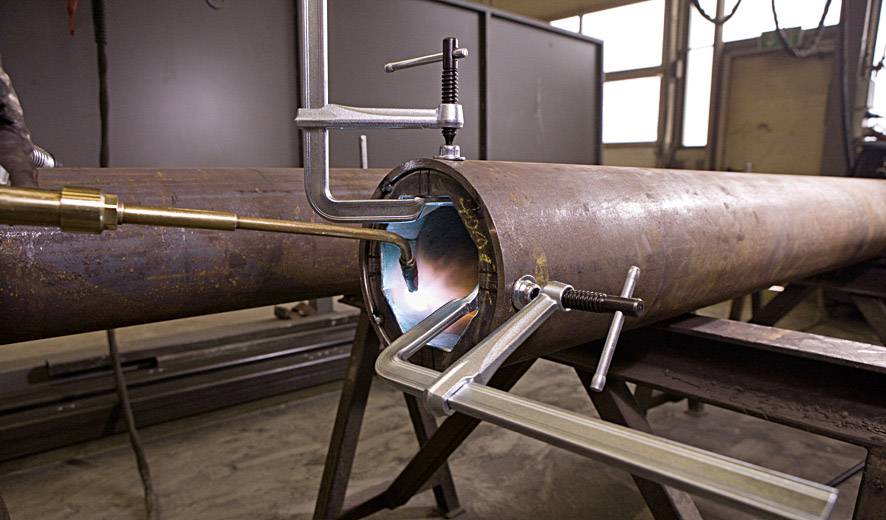

A large metal cylinder is welded internally and secured by two G-clamps. A soldering tip is visible.
1/3
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

All steel screw clamp GZ-K 1250/120

  • 20 % more clamping force per spindle rotation with optimised rail profile
  • Maximum security with linear transfer of force at the sliding arm
  • Clamping force up to 6,000 N
  • Fixed jaw and sliding arm are constructed of tempered steel for resilient clamping
  • Tom

Technical specifications

Product type

L clamp

Span width (max.)

1250 mm

Nosing

120 mm

Weight

3.65 kg

Content

1 pc(s)

Clamping range

1250 mm mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 647123 All steel screw clamp GZ-K 1250/120 Bessey GZ125K Span width (max.):1250 mm Nosing length:120 mm

Description

Features

  • 20% more clamping force per spindle revolution by optimized rail profile
  • Highest safety by direct transmission of power at pantograph
  • Tempered sliding and fixed bracket for elastic and elastic tension
  • T-handle with rounded ends for easy transmission of power when hooking up
  • Manually changeable pressure discs

Hints
