Allnet ALL1682511v2 Powerline adapter ALL1682511v2 500 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Allnet 500 Mbit - Powerline adapter & 300Mbit WiFi AP (ALL1682511v2)
- 500 Mbps HomePlug AV
- 300 Mbps wireless N point
- 2.4 GHz or 5 GHz can be selected
- WPS function
- 2ter LAN port
Technical specifications
- Product type
Powerline adapter
- Powerline data transfer rate
500 MBit/s
- No. of LAN ports
2 x
- Wi-Fi transmission rate (max.)
300 MBit/s
- Built-in socket
No
- Hub
Not required
- Weight
140 g
- Width
62 mm
- Height
82 mm
- Depth
42 mm
- Operating current
3.6 W
- Standby current consumption
0.5 W
- Length
150 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2352026 Allnet ALL1682511v2 Powerline adapter ALL1682511v2 500 MBit/s
User & Safety Instructions
User & Safety Instructions 2352026 Allnet ALL1682511v2 Powerline adapter ALL1682511v2 500 MBit/s
Description

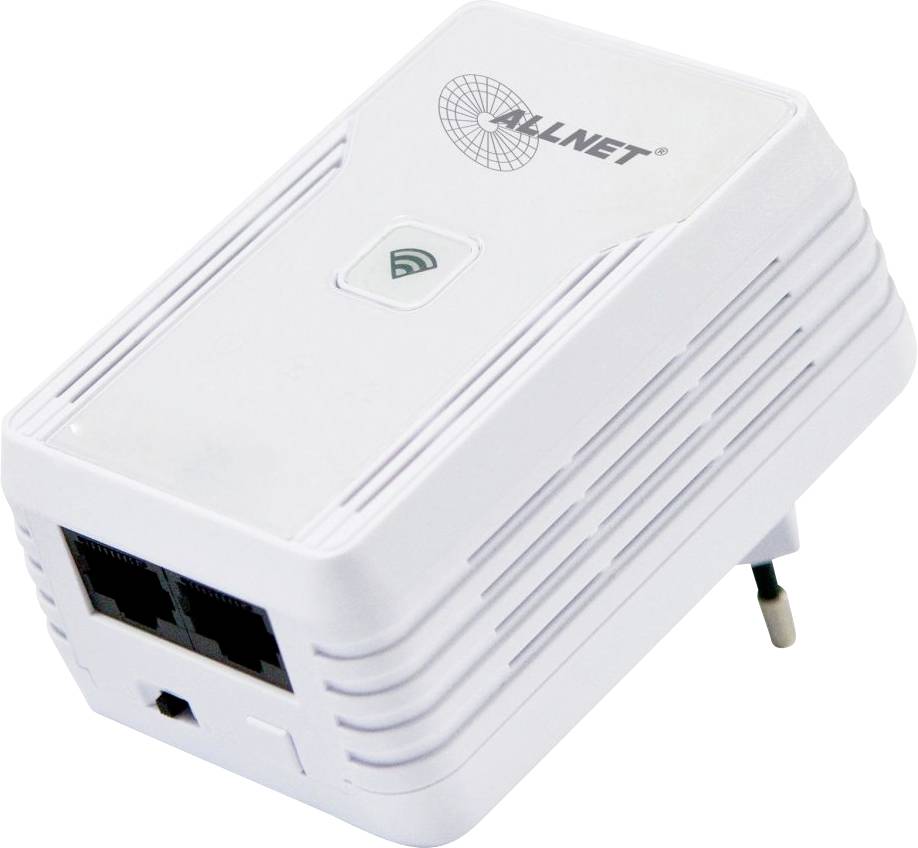

The Allnet ALL1682511v2 is a 500 Mbps HomePlug AV Wireless N Adapter, which combines Powerline and Wireless LAN in one device. It establishes the network connection to other HomePlug AV adapters via the 230V home power network and communicates simultaneously with wireless devices such as laptops, smartphones and tablets via her 300 Mbps wireless LAN interface (IEEE802.11b/g/n or IEEE802.11a/n selectable).

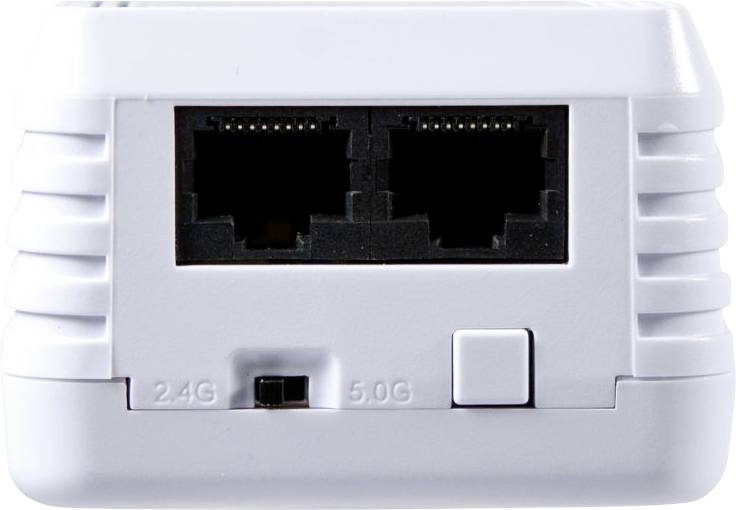

In addition, the ALL1682511v2 HomePlug AV Wireless N Adapter has two RJ45 network ports for connecting wired network devices. Highest encryption standards for wireless LAN and Powerline, which can be activated by pressing a button, provide for secure data exchange over all interfaces.
Quality of Service (QoS) for HomePlug offers the necessary bandwidth for modern multimedia applications such as Broadband TV (IPTV), higher data rate broadband sharing, online gaming, VoIP calls, audio-video transmission over the network as well as IP camera connectivity.
With an average power consumption of less than 7 watts, the ALL1682511v2 HomePlug AV Wireless N Adapter fulfills all the requirements that modern Green-IT products have to fulfill today.

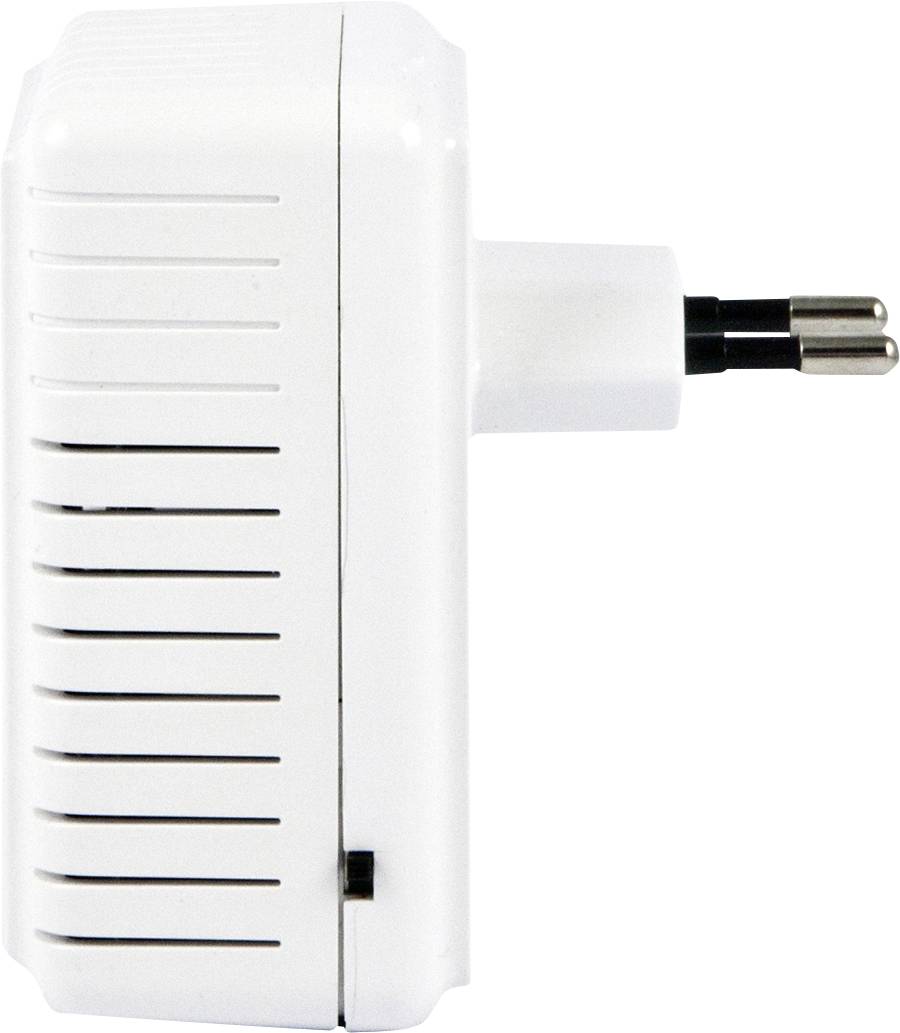

The compact design, no larger than a normal wall plug transformer, enables an inconspicuous installation, without covering neighboring power sockets.
This text is machine translated.
In addition, the ALL1682511v2 HomePlug AV Wireless N Adapter has two RJ45 network ports for connecting wired network devices. Highest encryption standards for wireless LAN and Powerline, which can be activated by pressing a button, provide for secure data exchange over all interfaces.
Quality of Service (QoS) for HomePlug offers the necessary bandwidth for modern multimedia applications such as Broadband TV (IPTV), higher data rate broadband sharing, online gaming, VoIP calls, audio-video transmission over the network as well as IP camera connectivity.
With an average power consumption of less than 7 watts, the ALL1682511v2 HomePlug AV Wireless N Adapter fulfills all the requirements that modern Green-IT products have to fulfill today.
The compact design, no larger than a normal wall plug transformer, enables an inconspicuous installation, without covering neighboring power sockets.
