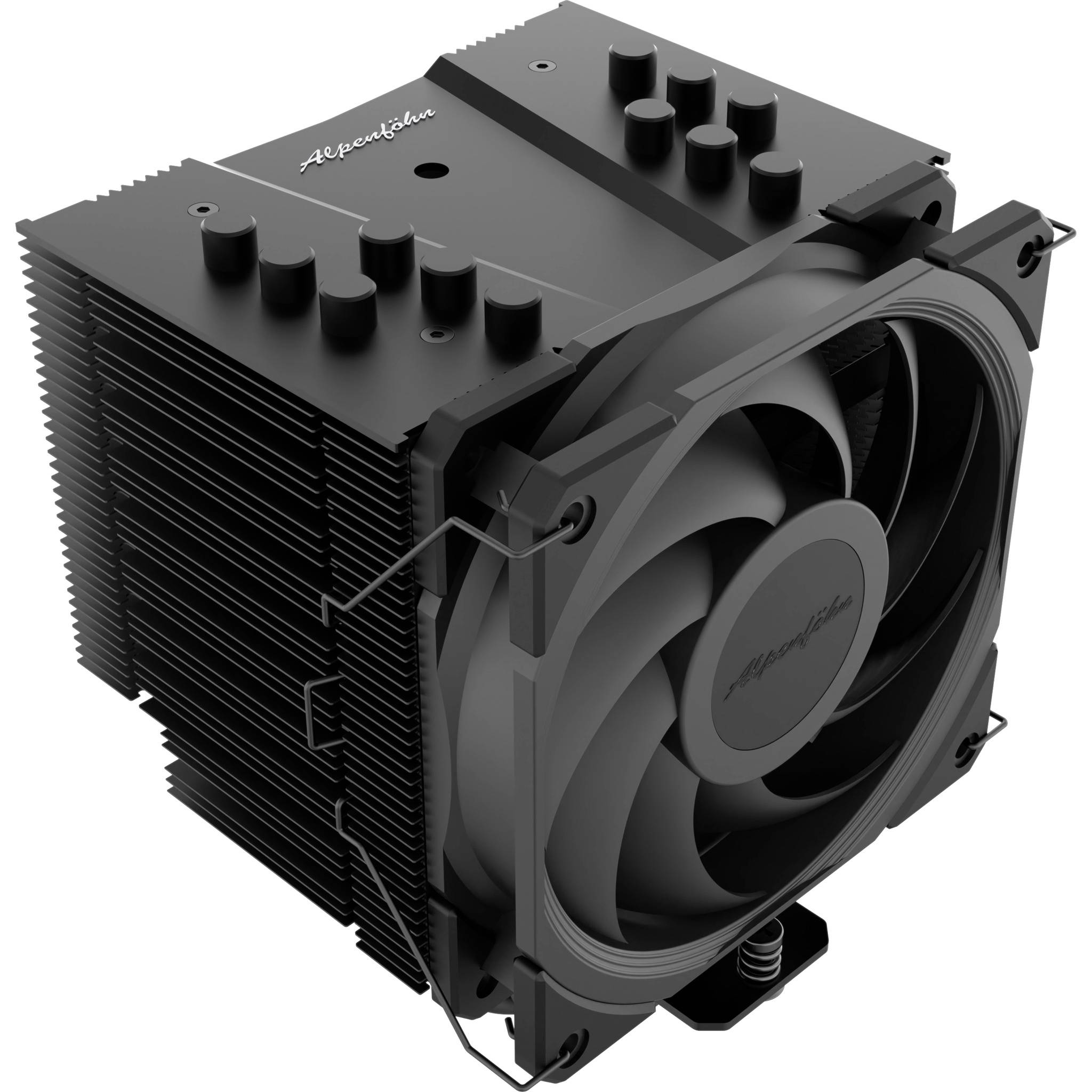

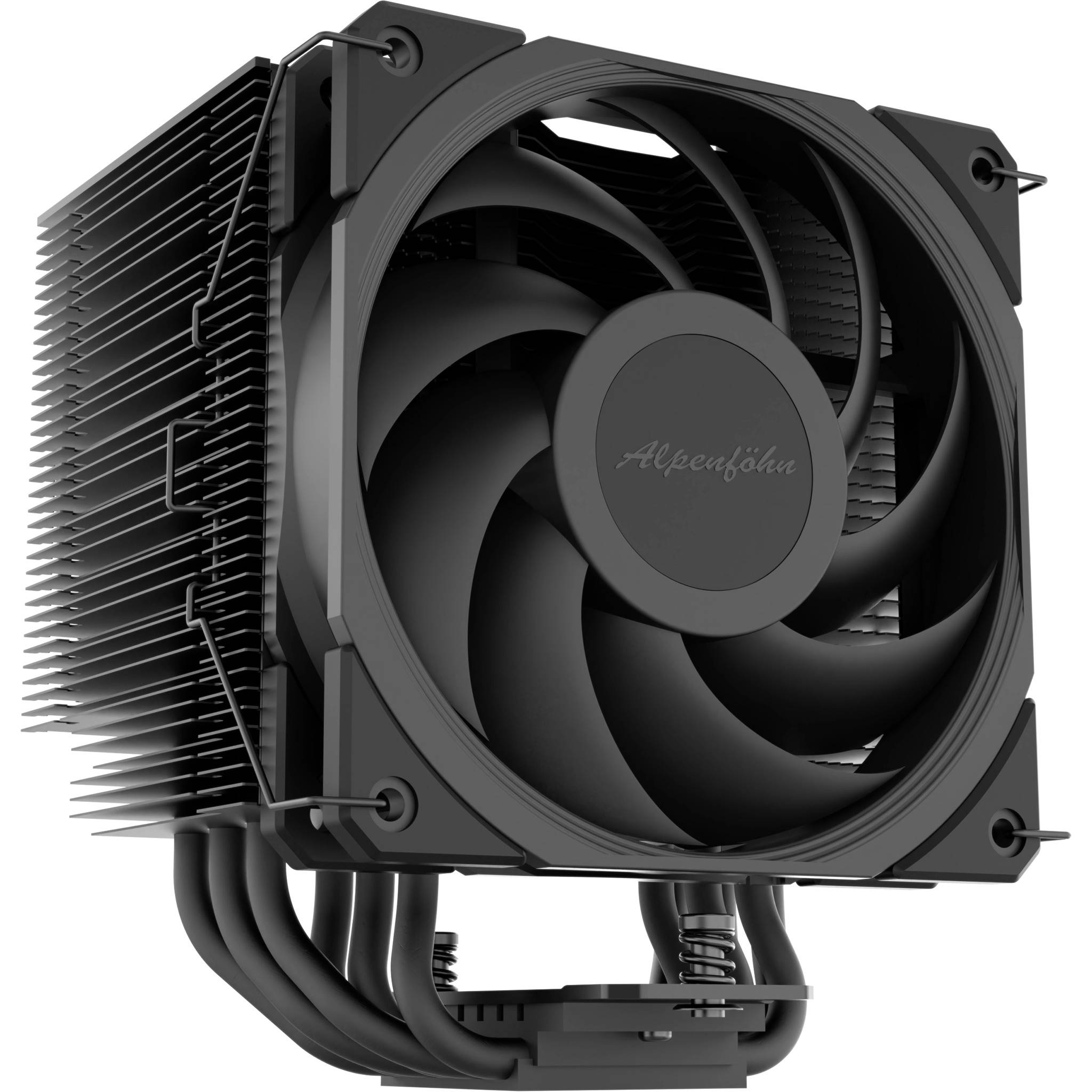

Alpenföhn Cooler Alpenföhn Brocken 4 CPU cooler + fan
EAN:
Part number:
Item no:
Highlights & Details
Alpenföhn Cooler Alpenföhn Brocken 4 CPU cooler + fan
- Processor air cooling 12 cm
- LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4
- 1.74 mmH2O
- Support for pulse width modulation
- 120 x 120 x 27 mm
- Black
- 1 pieces(s)
Technical specifications
- Fan diameter 12 cm
- LGA 1150 (Socket H3),LGA 1151 (Socket H4),LGA 1155 (Socket H2),LGA 1156 (Socket H),LGA 1200 (Socket H5),LGA 1700,LGA 2011 (Socket R),LGA 2011-v3 (Socket R),LGA 2066,Socket AM4
- Fan bearing technology: Hydrobearing
- Number of fans: 1 fans
- 4-pin fan connector
- Product type
CPU cooler + fan
- Noise emission (max.)
22.8 dB
- Rotational speed (min.)
400 U/min
- Rotational speed (max.)
1600 U/min
- Air discharge
94 m³/h
- Heatsink material
Aluminium
- Weight
1.1 kg
- Width
127 mm
- Height
155 mm
- Depth
92 mm
- Noise emission
20.1 dB - 30 dB
- Factory colour
Black
- Type
Air cooling
- Power consumption (max.)
220 W
- Screws included
yes
- Fan voltage
12 V
- Heat pipes diameter
6 mm
- Number of heat pipes
6
- Fan dimensions (W x D x H)
120 x 120 x 27 mm
- Quantity per pack
1 Stück(e)
- Installation instruction
yes
- Fan power consumption
1.8 W
- Pulse-width modulation (PWM) support
yes
- Rated current
0.15 A
- CPU bracket(s)
yes
- Fan's mean time to failure (MTTF)
300000 h
- Number of fan blades
9
- Mounting kit
yes
- Maximum air pressure
1.74 mmwc
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818498 Alpenföhn Cooler Alpenföhn Brocken 4 CPU cooler + fan
Description
High-performance 220W TDP single tower for demanding systems
Matt black surface coating, 6x6mm heat pipes, large-area asymmetric heat sink and an aerodynamically optimized fin design – Brocken 4 combines Pure performance with almost silent operation even in demanding systems.

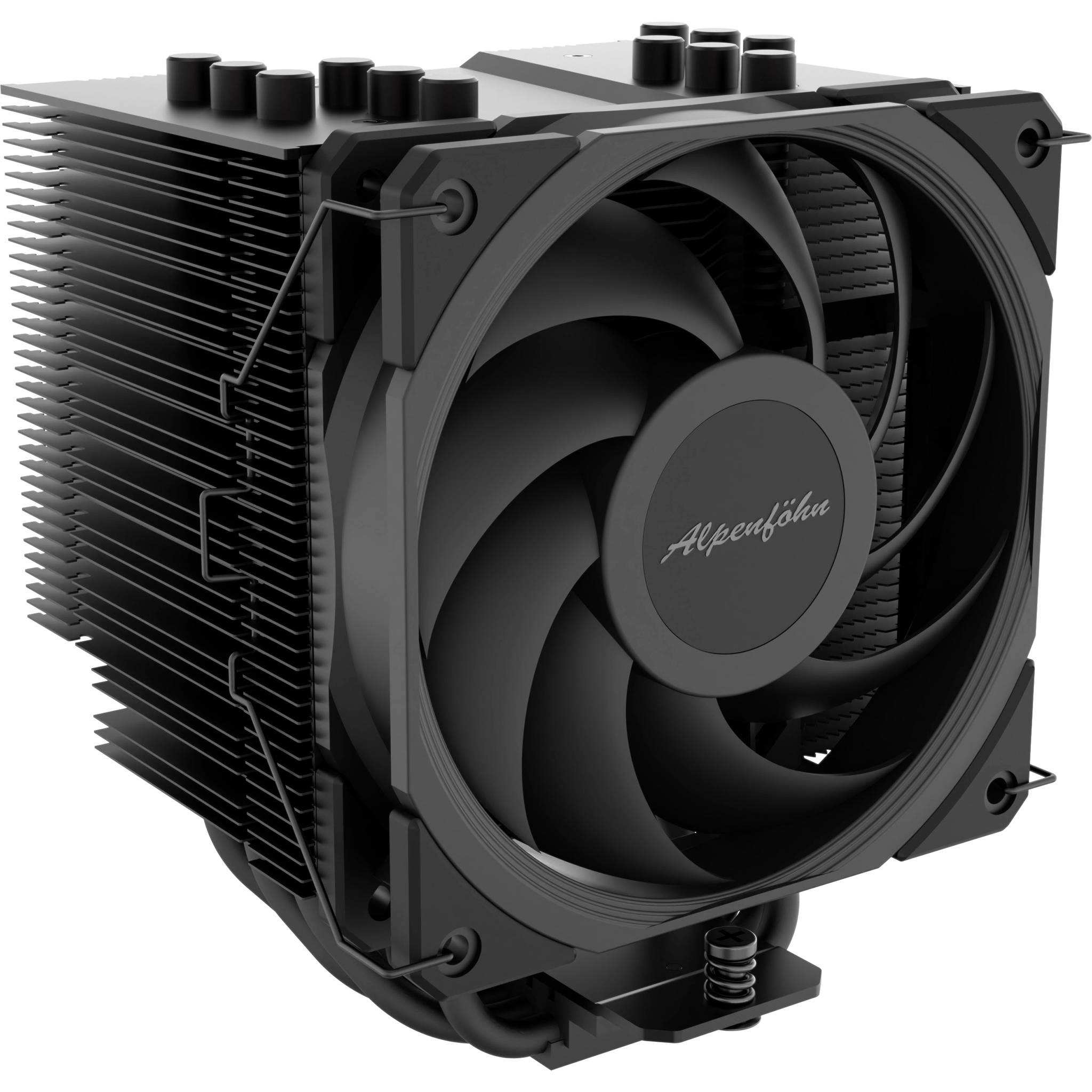

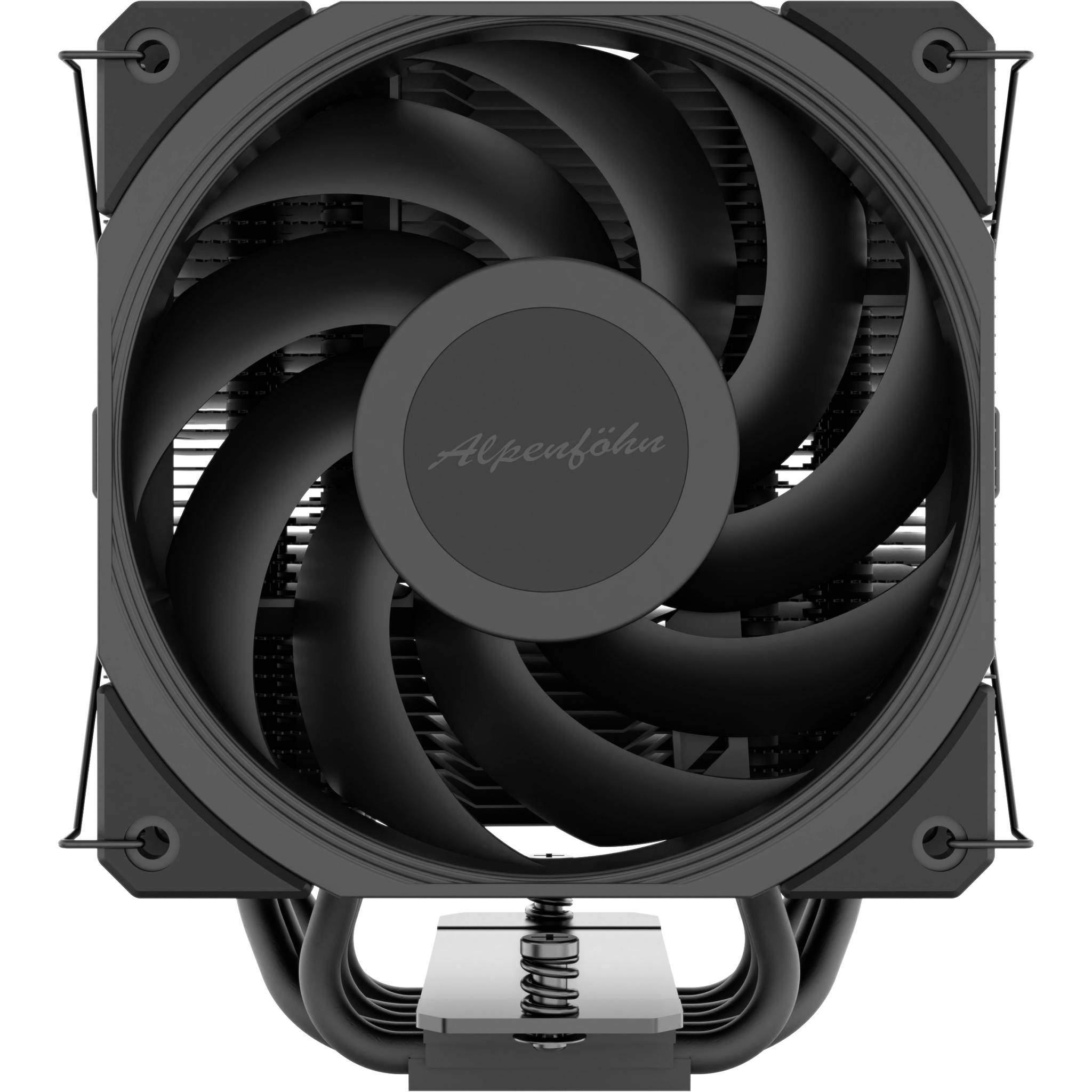

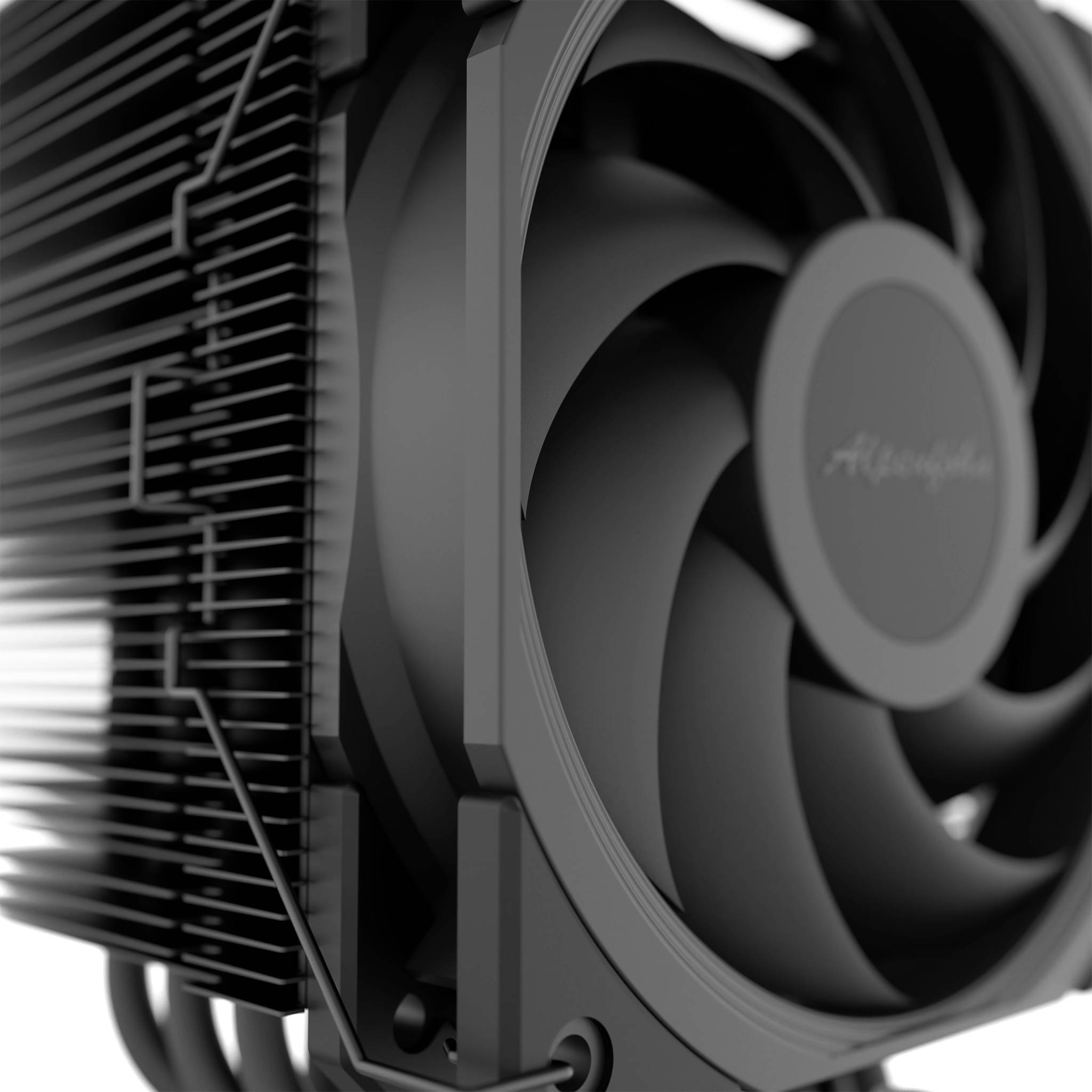

The completely newly developed JetStream fan
The new JetStream fan sets standards in the Alpenföhn portfolio! An airflow-optimized impeller, an enhanced frame and a Next-Gen bearing provide for excellent smoothness at maximum performance. The anti-vibration pads of the stream jet also reduce any vibrations to a minimum.

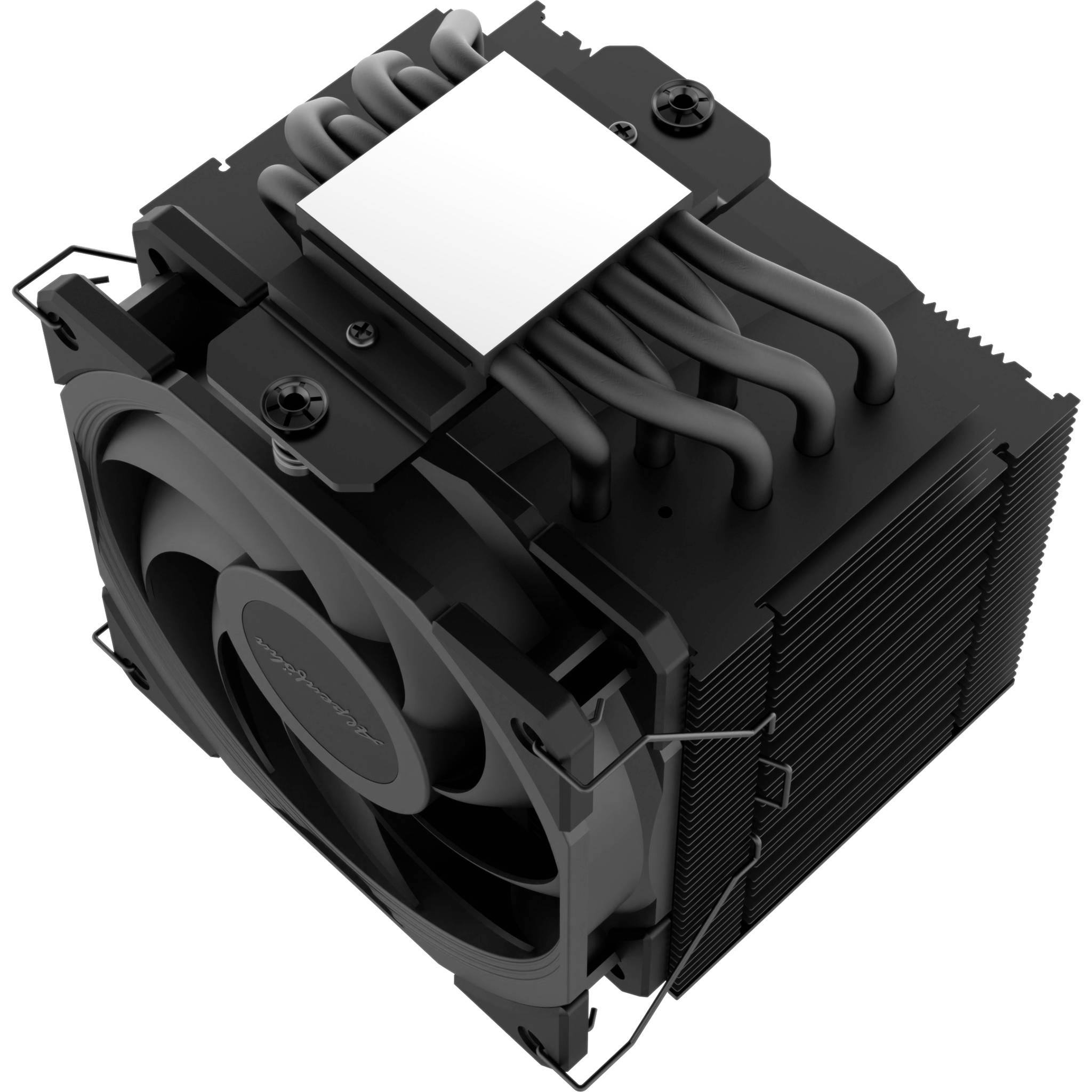

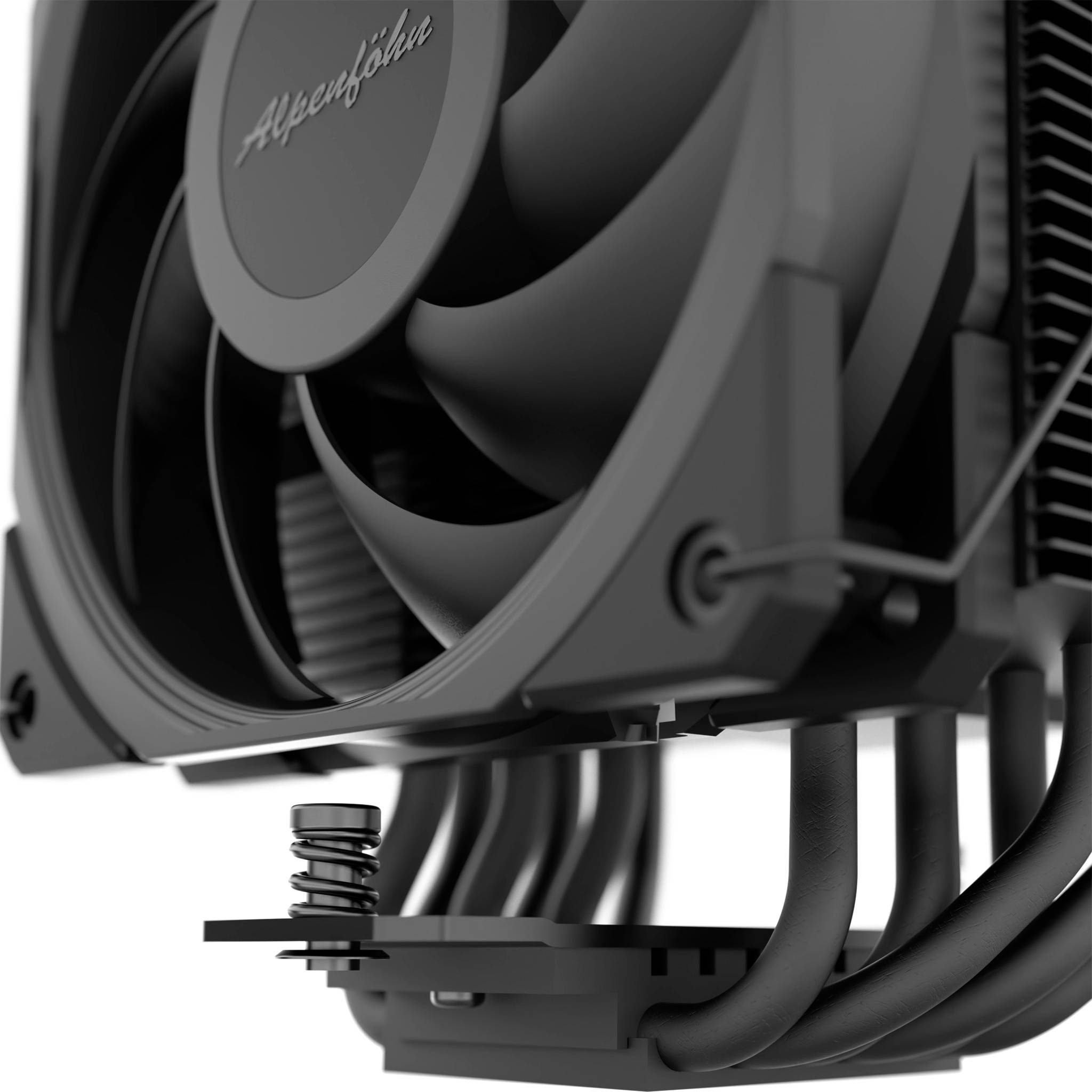

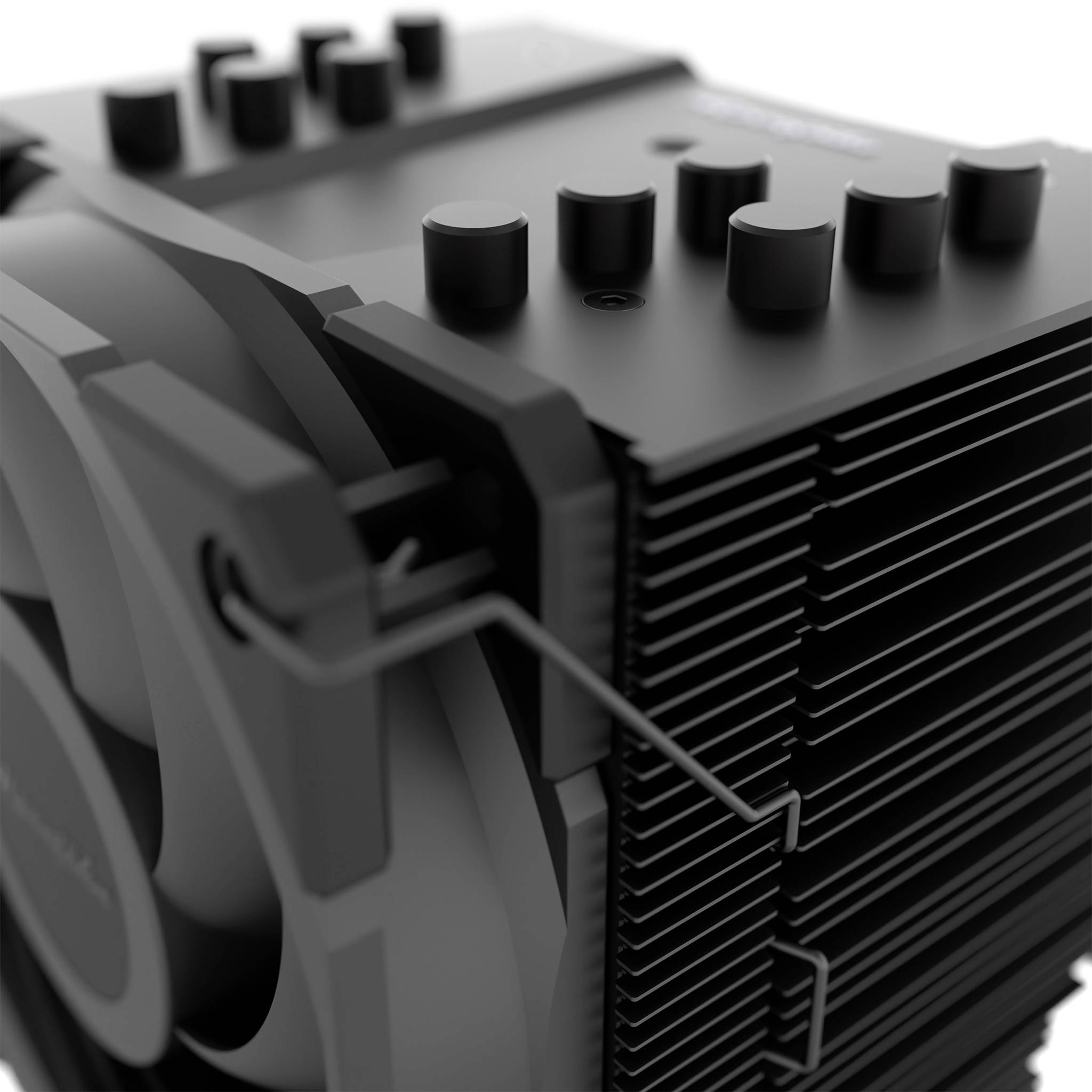

High-End Heatpipes & copper base plate
The 6 high-end heat pipes possess a very large connection to the nickel-plated copper base plate and can through this optimally absorb the waste heat of the CPU. This means the heat pipes transport the waste heat of the processor quickly and efficiently to the large heat sink.

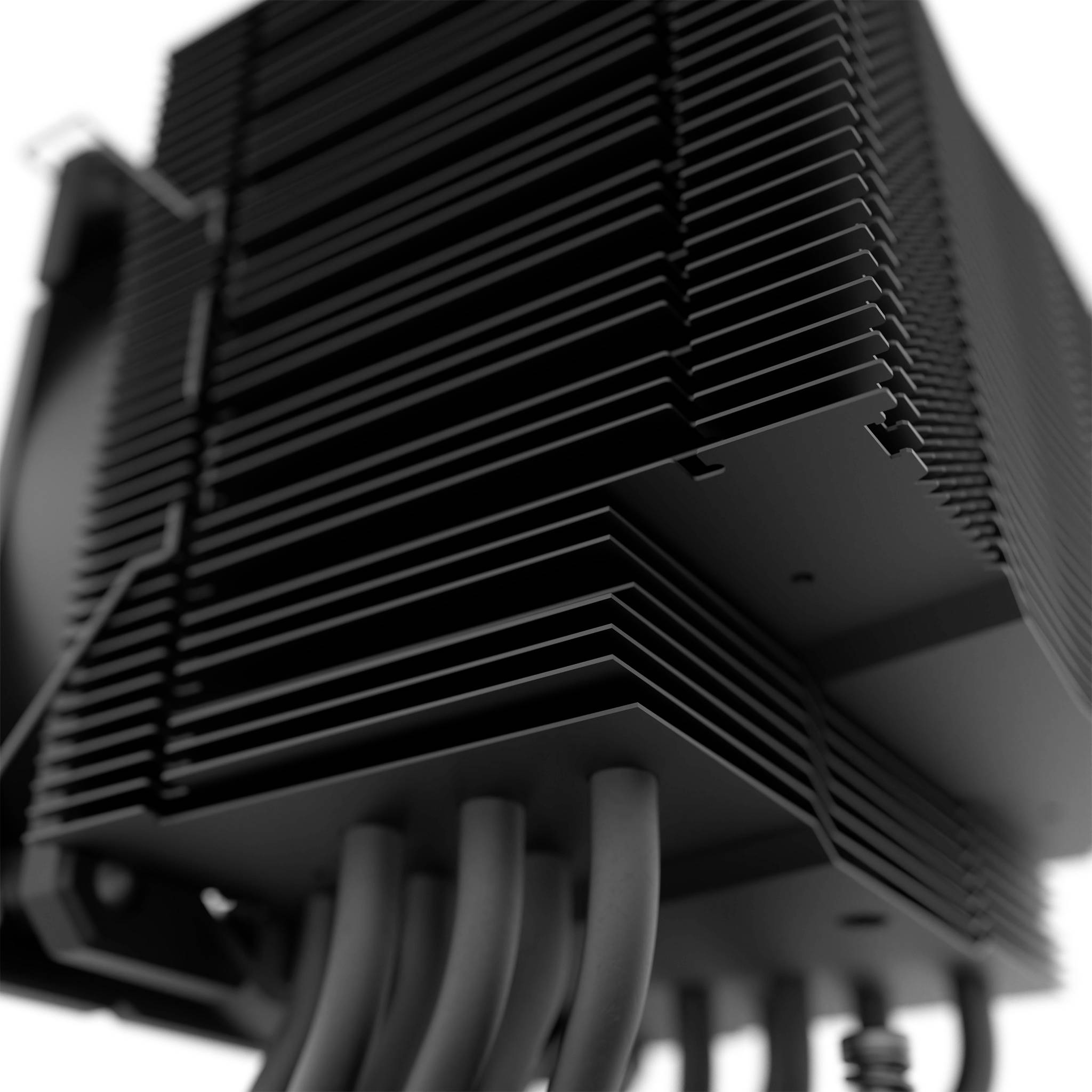

Matt black surface coating
The complete heat sink of the Brocken 4 is equipped with a classic matte black coating. Black is beautiful - we think so!

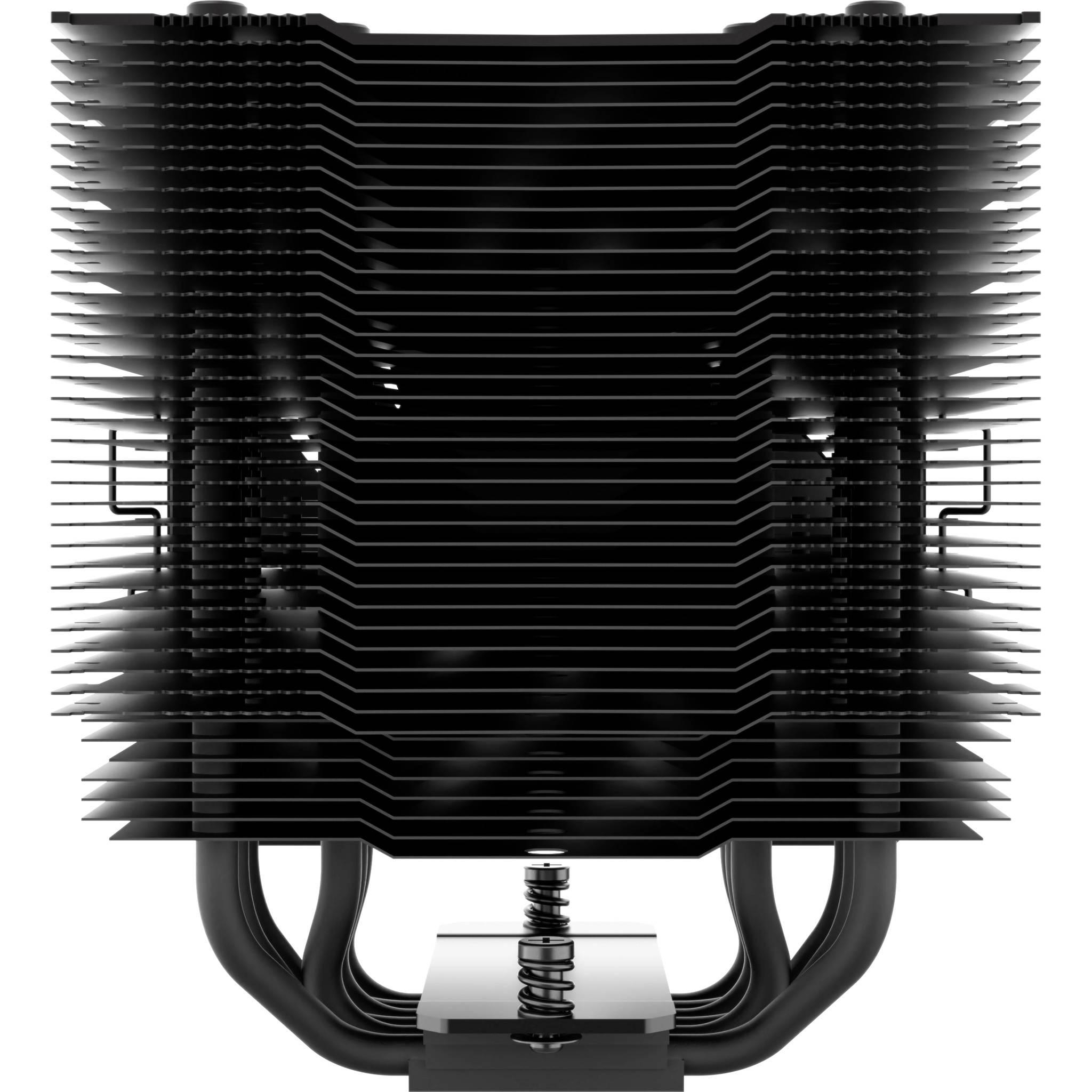

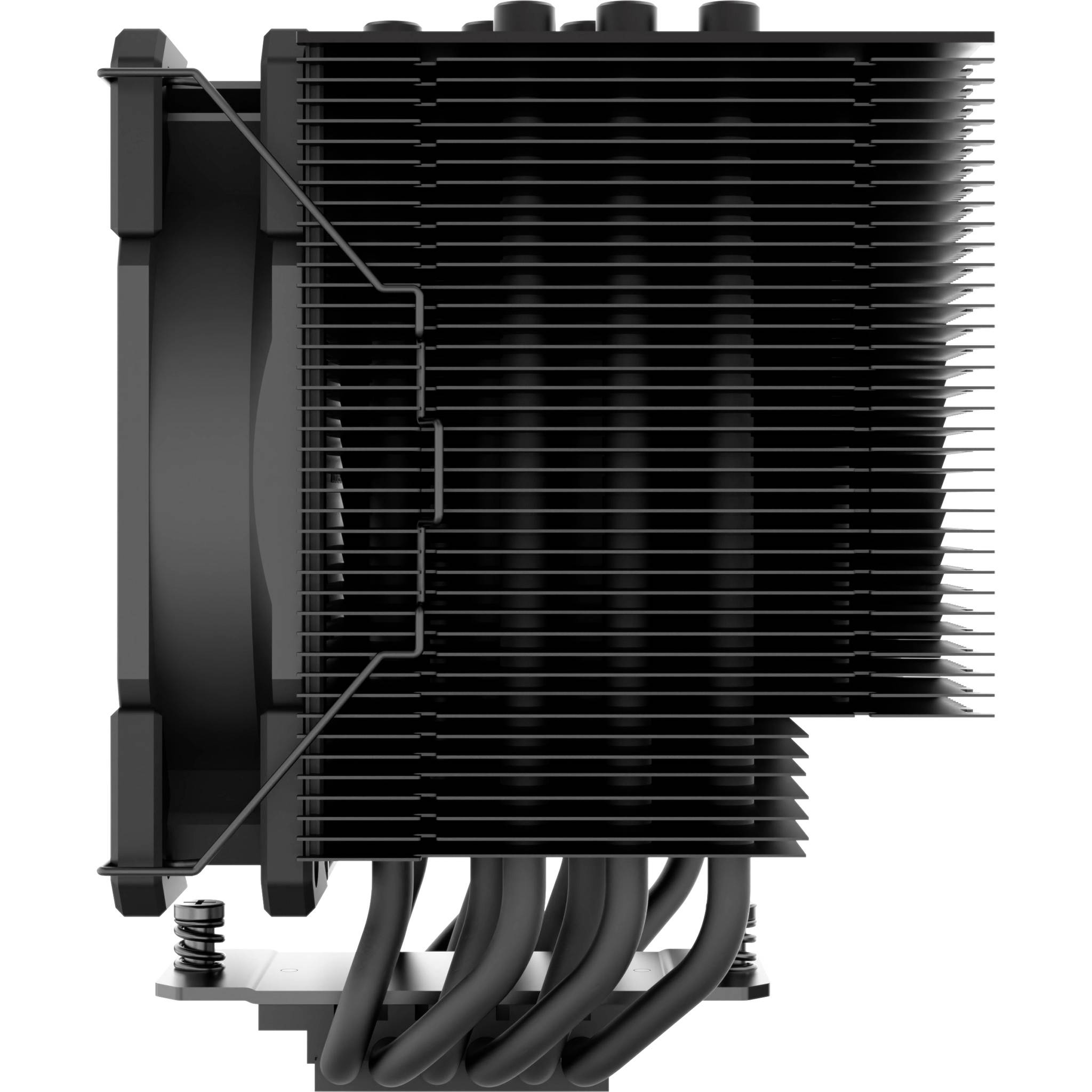

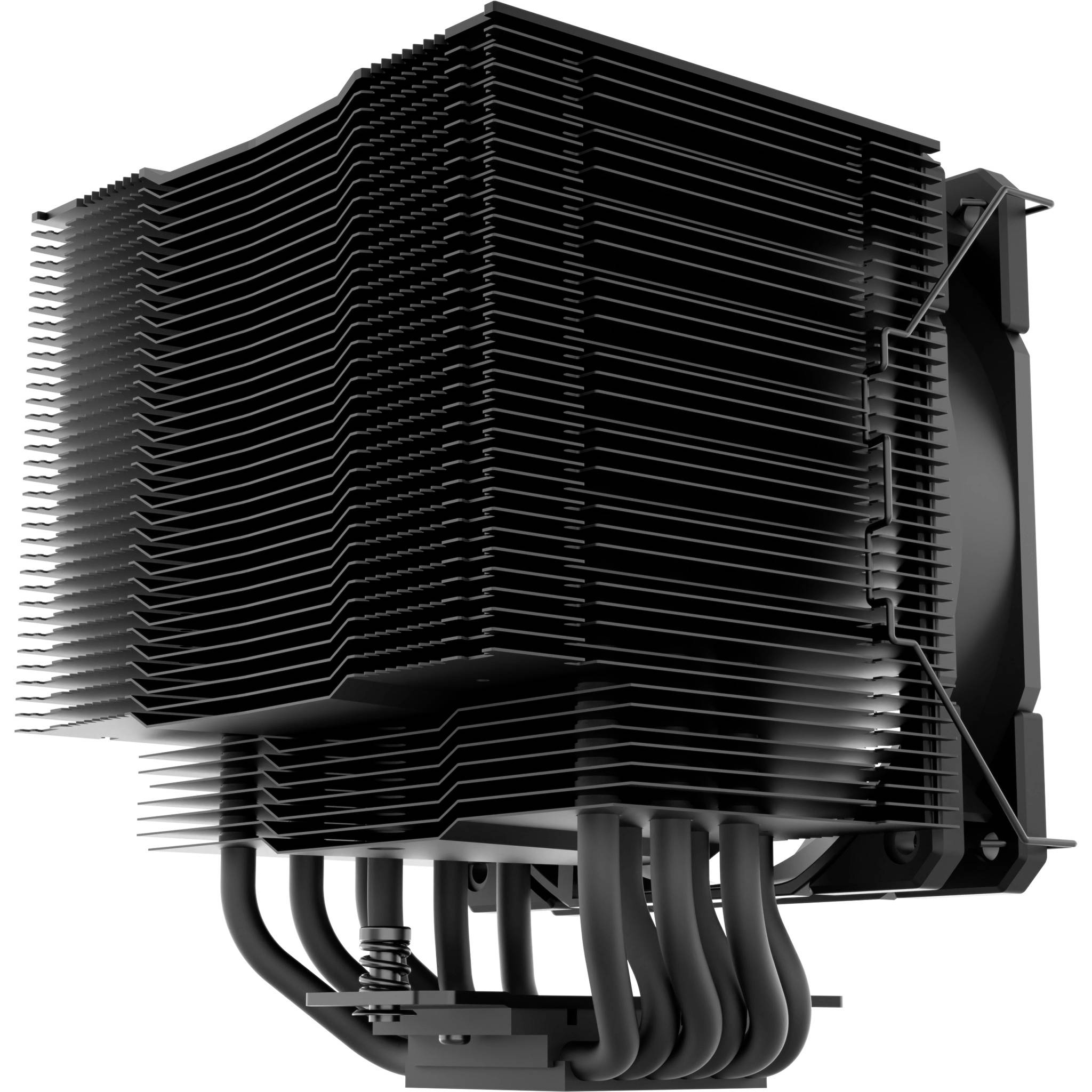

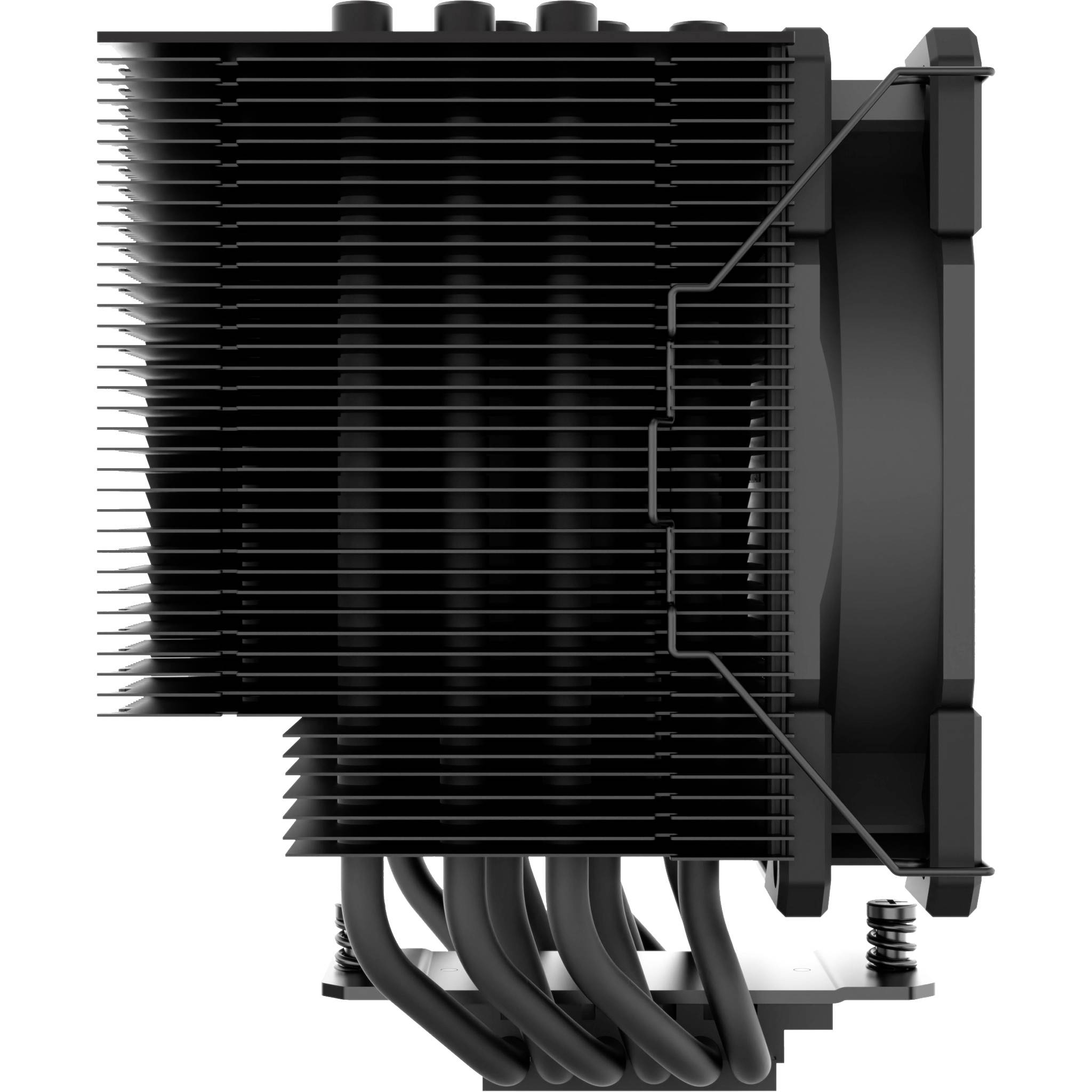

Asymmetrical heat sink
The asymmetric design of the Brocken 4 permits maximum flexibility in the selection of the RAM modules. No matter how high the module heat spreader is – it fits easily!
100% RAM compatibility on socket 1700, 1200, 115X, AM5 and AM4.
Rock Mount 3 mounting system
The RockMount3 mounting system included in the delivery offers a secure hold on the socket:
Intel® LGA 1700, 1200, 115X, 20XX
AMD: AM5, AM4

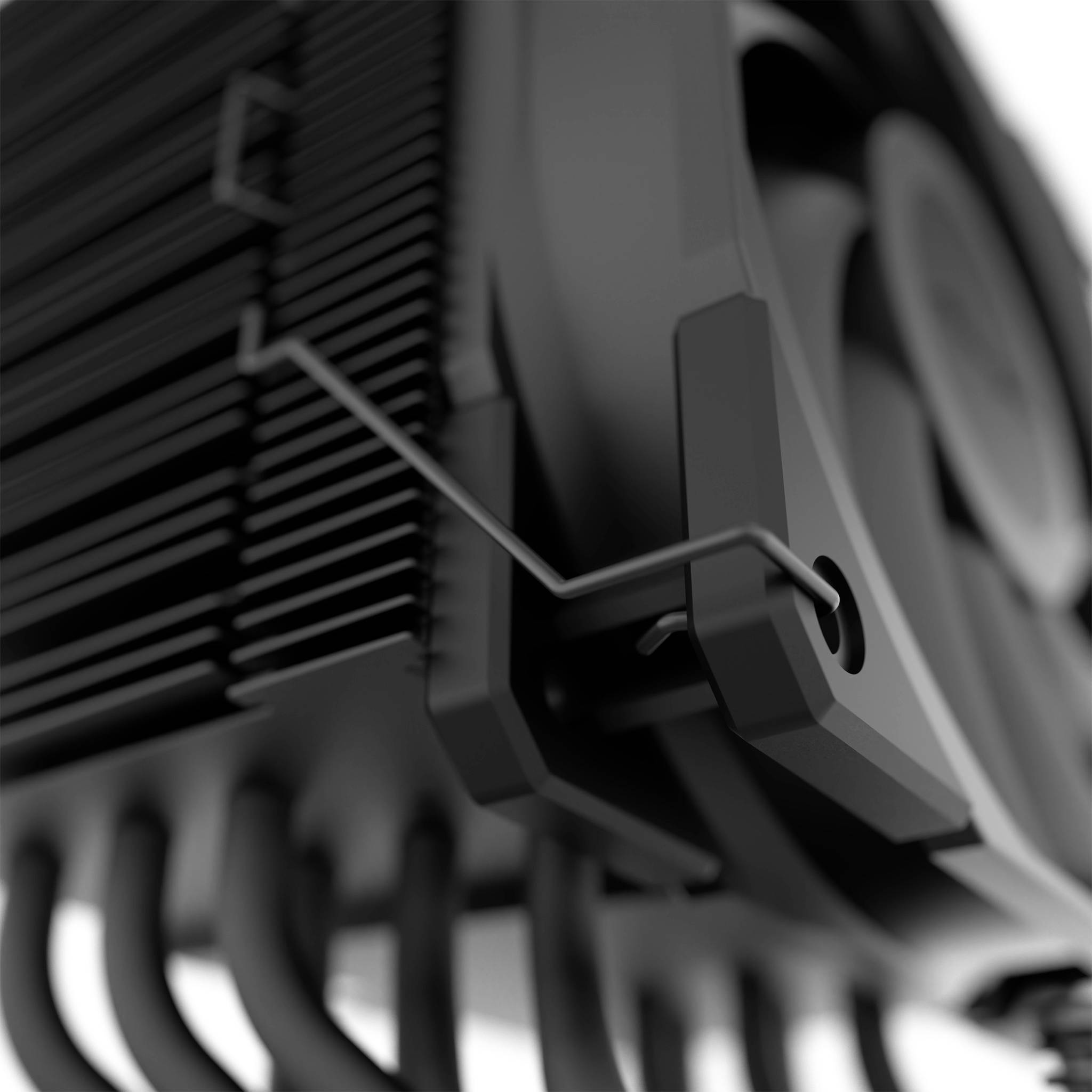

Fan mounting which can be extended
Delivery includes four fan clamps and appropriate decoupling elements for even more power Thus you can mount an additional 120 mm fan without any problem on the rear side of the heat sink and thus the cooling power further increase.
This text is machine translated.
Features
- Powerful and quiet thanks to the new Jetstream fan
- Single tower with 6x 6mm heat-pipes and 220W TDP
- Matt black surface coating
- Airflow-optimized lamellae with decoupling elements
- Asymmetrical design of heat sink for nearly 100% RAM compatibility
- 6 high-performance heat-pipes made of copper
- Nickel-plated full copper base plate
- Rock Mount 3 mounting system
- Extendable fan assembly
- Mounting brackets/decoupling elements are already included in the delivery
- German development and quality standards
