Amewi RC-Modell RC model helicopter RtF
EAN:
Part number:
Item no:
Highlights & Details
Amewi RC-Modell RC model helicopter RtF
- RtF set (Ready-to-Fly) incl. remote control, battery, charger
- CNC-machined components for more durability

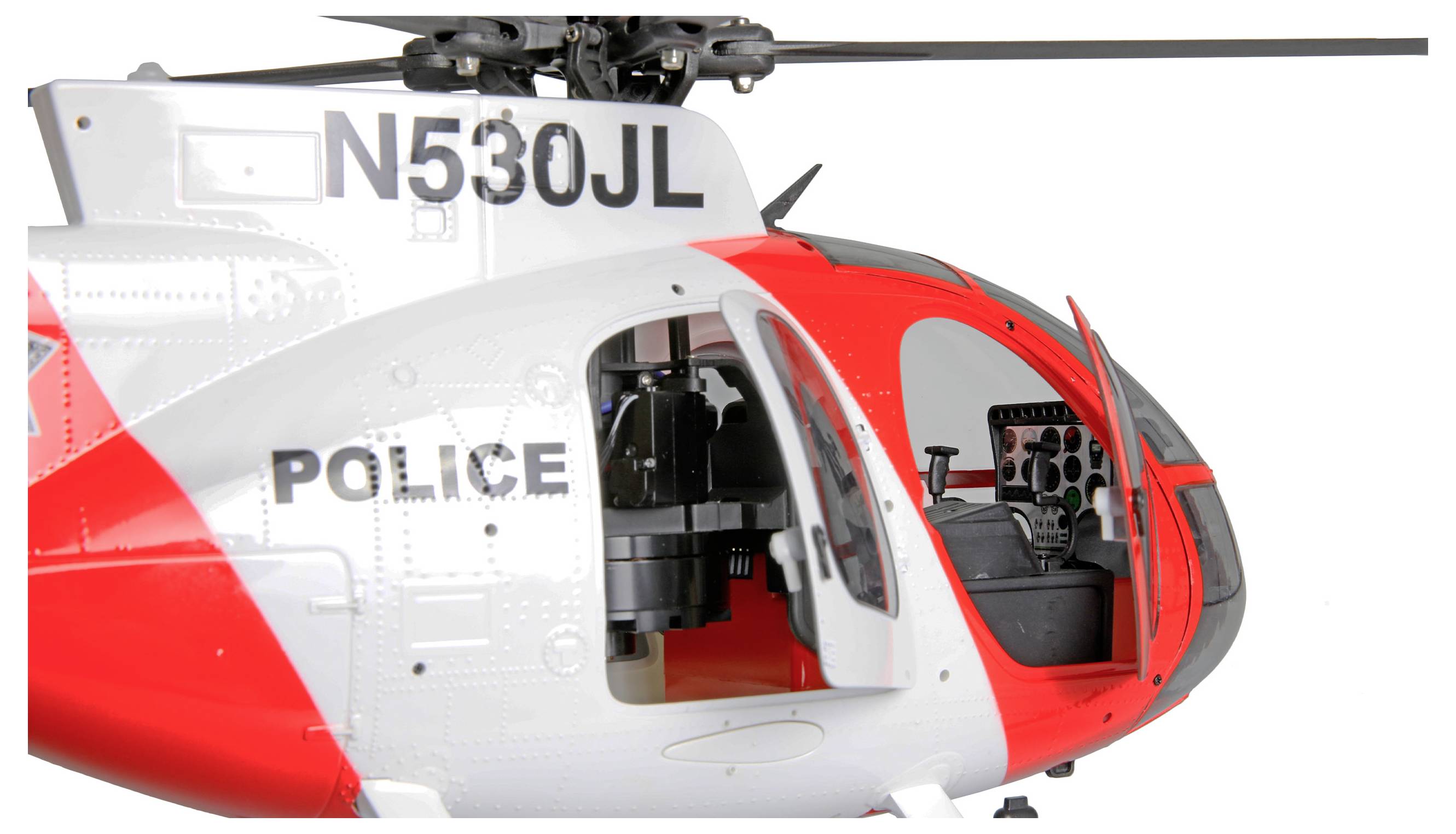

- Scale look inclusive of all attachment parts, chassis, functional doors, expanded cockpit and finish as with the original
- New compass for precise positioning of the model
- High range of up to 350 meters thanks to bi-directional data transmission between model and remote control
- Fast digital metal gear servos with 0.05ms adjustment time and only 4.3g weight

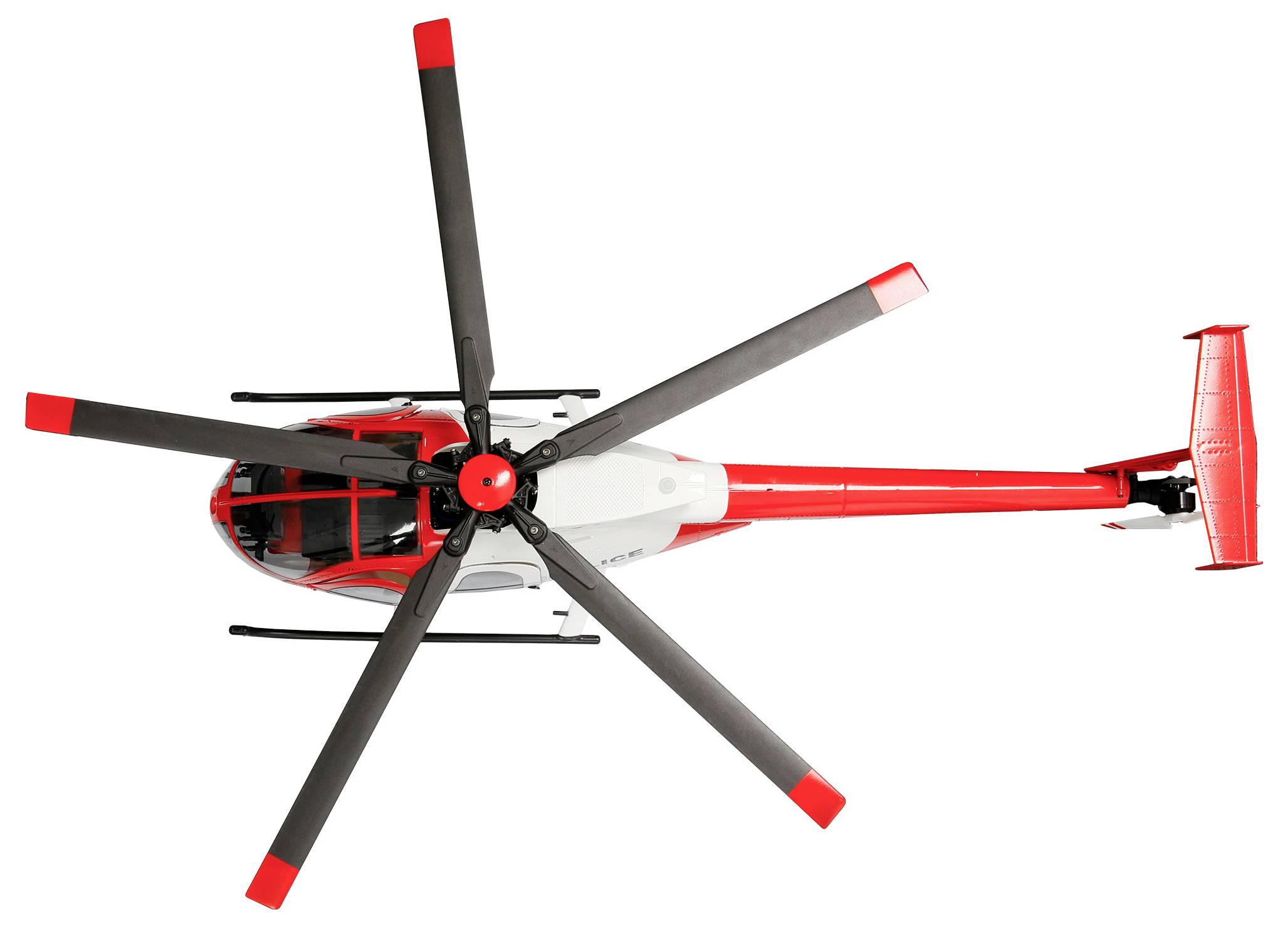

- Flybarless 5-blade main and tail rotor as in the original for high efficiency
- Large 11.1 V LiPo battery with 3500mAh, optional 5 V output for example lighting, camera etc. and integrated LiPo-tester
- Brushless motor
Technical specifications
- 01:16 scale
- Length of body: 485mm
- Fuselage width: 140mm (via landing gear)
- Body height: 200 mm (via elevator)
- Main motor: Brushless 4306 560KV
- Rear motor: Brushless 1304 4400KV
- Main material: Plastic composite material
- Servos:3 x micro digital metal gear box 0.5ms / 60°

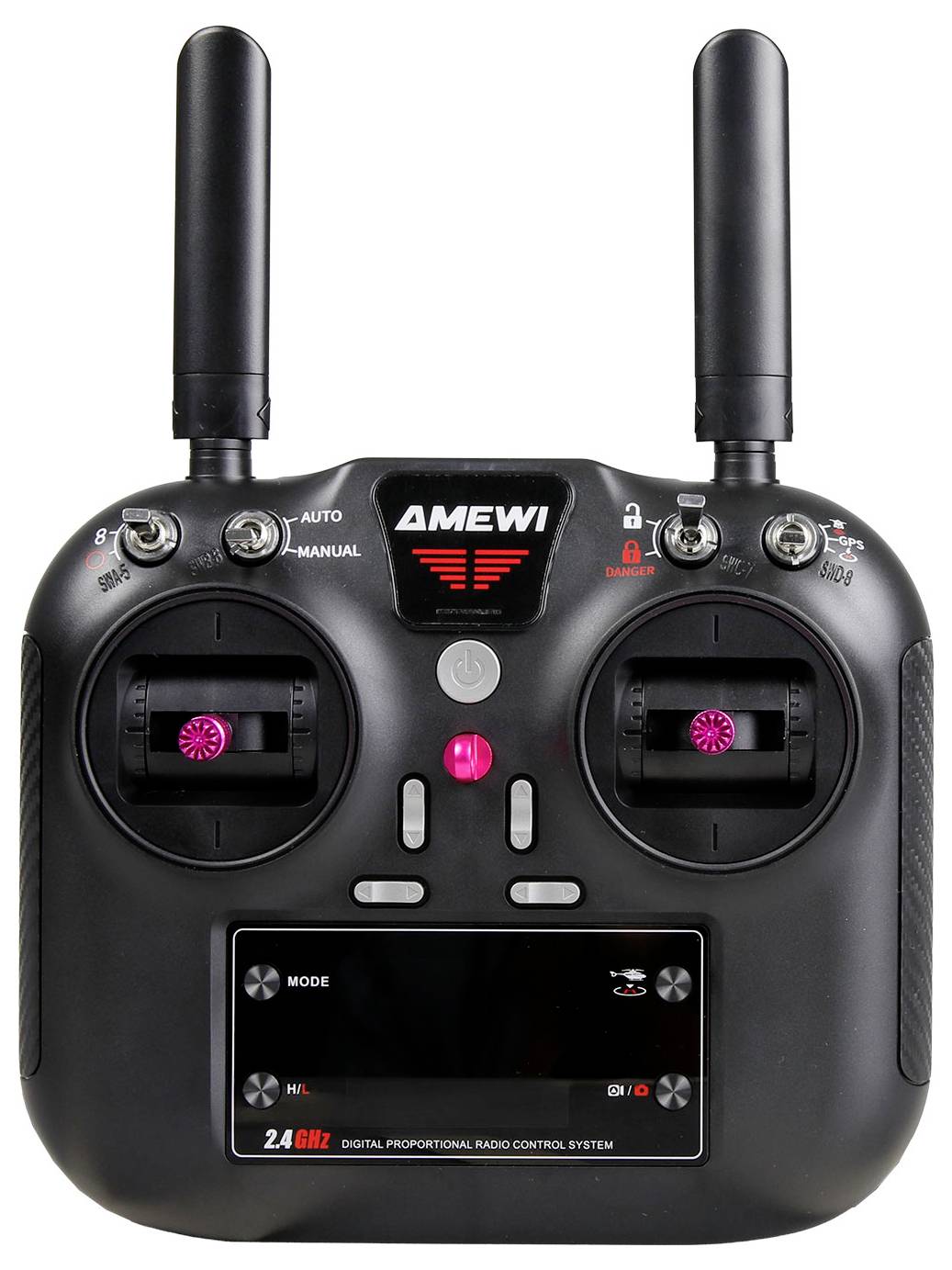

- Remote control: 8-channel 2.4 GHz mode 1+2 telemetry-compatible
- Range: Approx. 350 m (limited)
- Battery: LiPo 3S 11.1V 3500mAh 30C casing, 95x47x49mm, 221g
- Flight time: Approx. 15 minutes

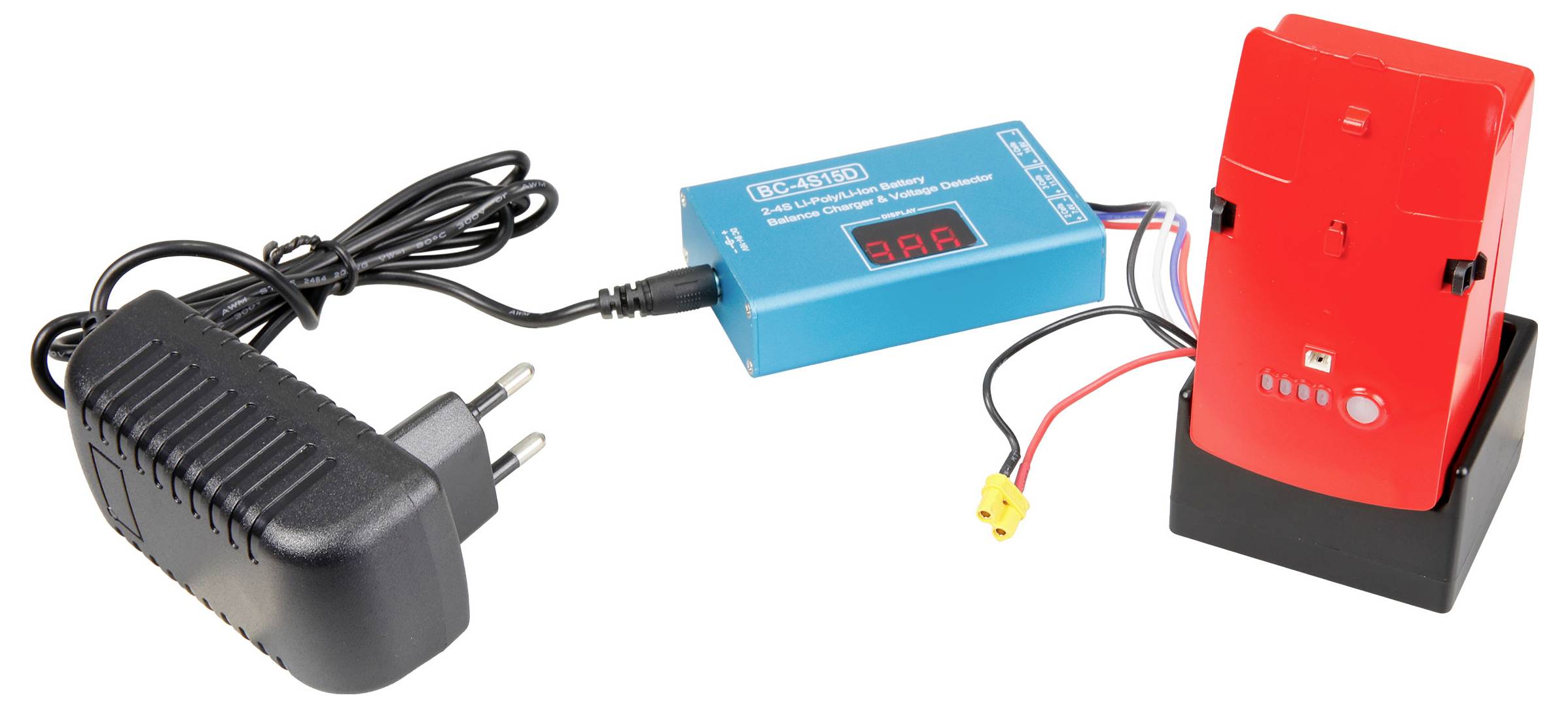

- Charger: Charging dock with 2-4S balancer charger 220V incl. LiPo-otester
- Product type
RC model helicopter
- Model version
RtF
- Weight
683 g
- Weight class
500 g - 1999 g
- UAS Reg ID label required
Yes
- Recommended minimum age
16 years
- Flight duration
15 min
- Main rotor Ø
430 mm

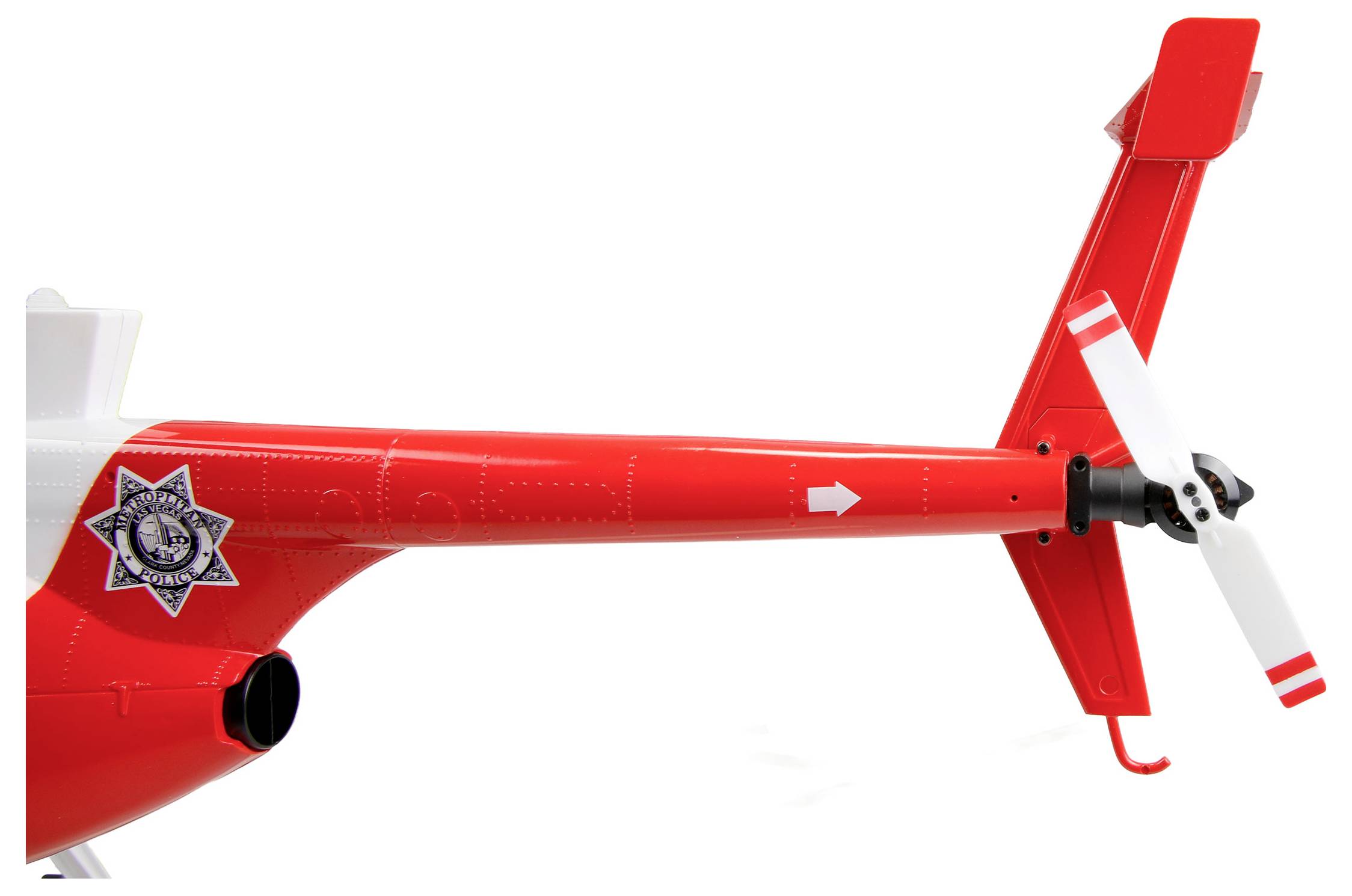

- Tail rotor diameter
85 mm
- Charging time
90 min
- Model
MD500
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3743774 Amewi RC-Modell RC model helicopter RtF
Description

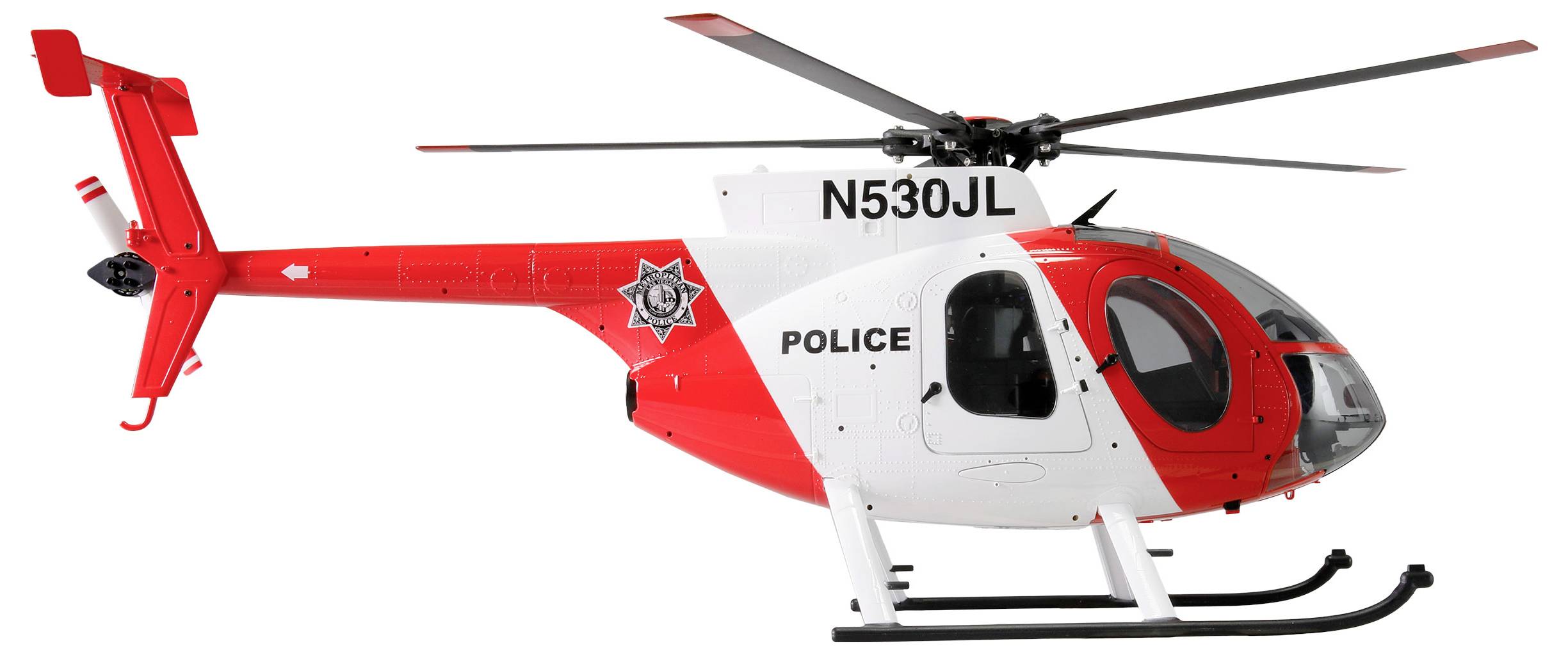

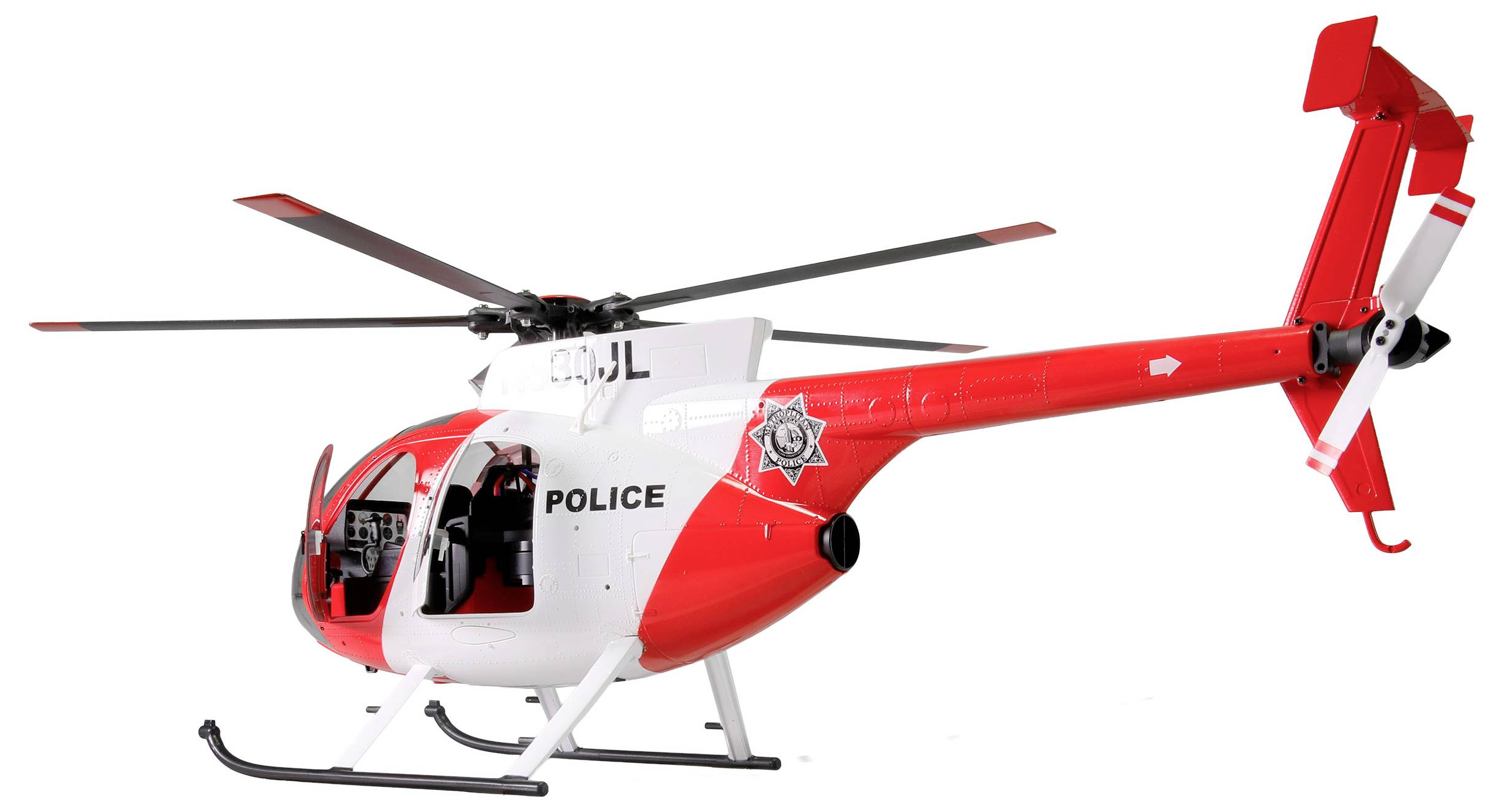

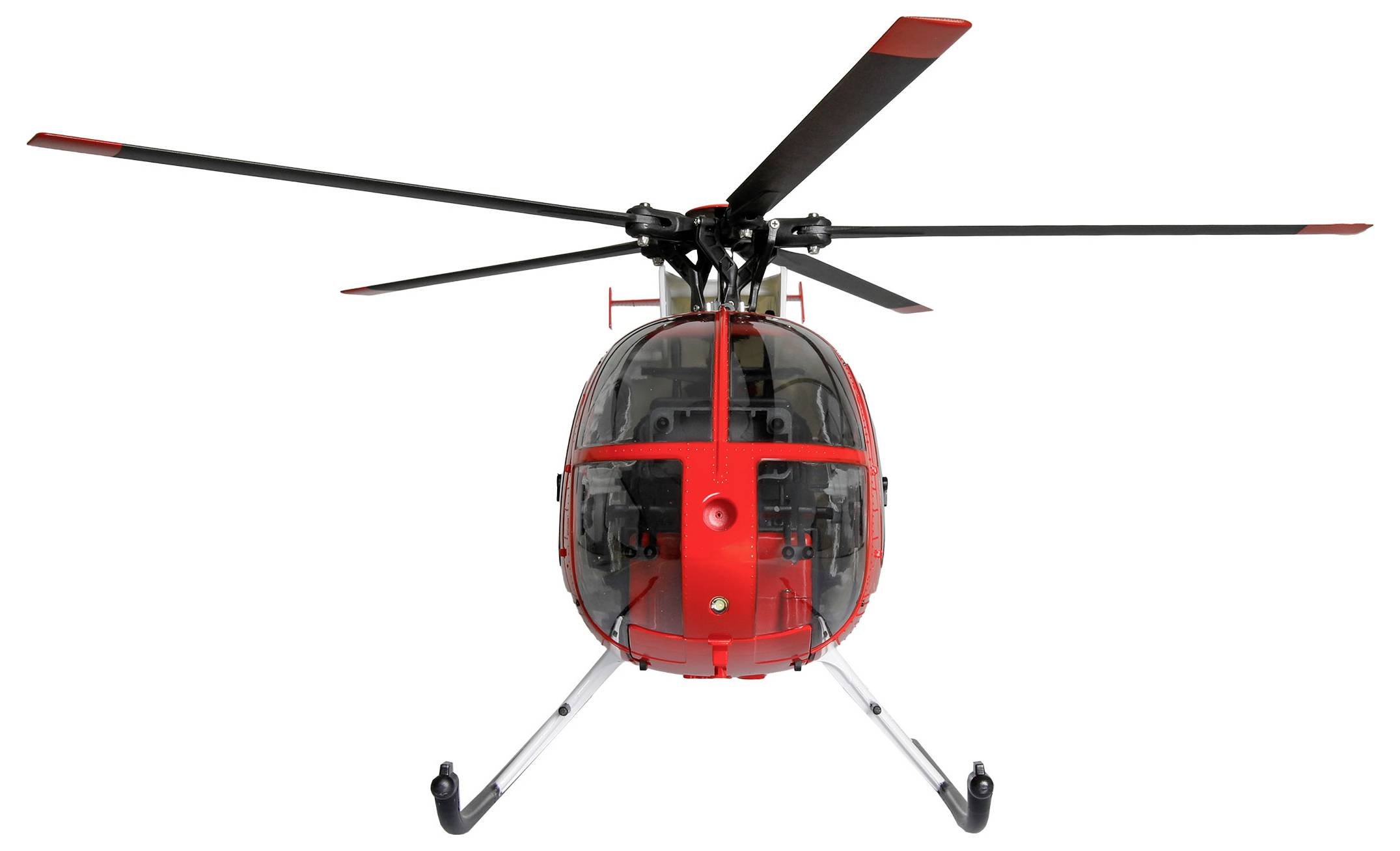

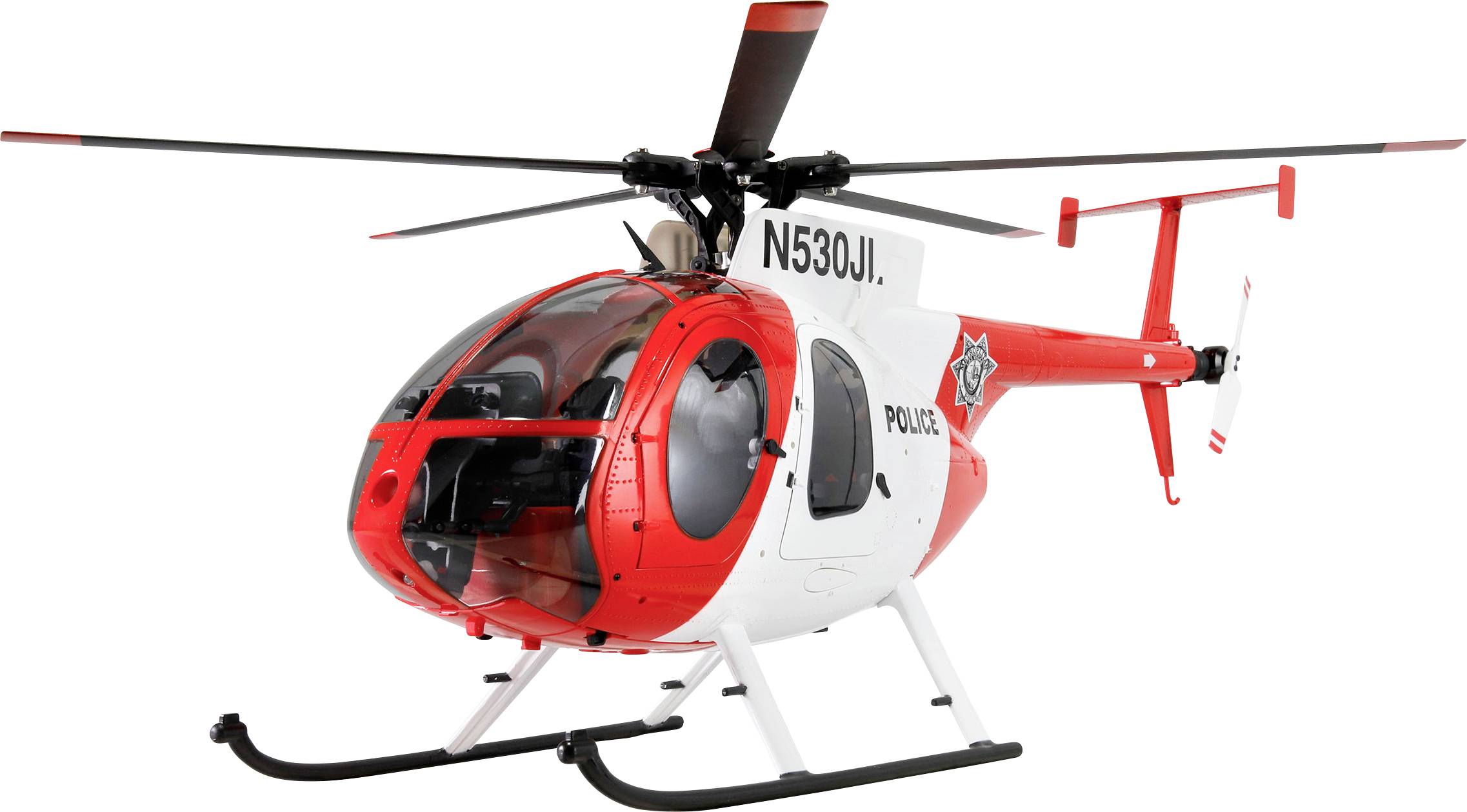

Based on the legendary Hughes 500, the remote-controlled MD500 Pro helicopter is a true-to-detail scale replica in the scale 1:16, which combines modern flying technology with realistic appearance. The model features a LiDAR-TOF and geomagnetic GPS positioning system that enables a stabilized flying mode, precise lifting as well as numerous automatic functions such as auto-start, auto-return, auto-landing and automatic circular or eighth flight. The system is complemented by an optical flight mode and a newly developed stabilization system for all axles, which offers especially calm flight characteristics and enables the pilot a controlled flying experience. An integrated compass, one-key return as well as an electronic safety fence with a range of up to 350 meters and a maximum flying height of 120 meters provide additional security.

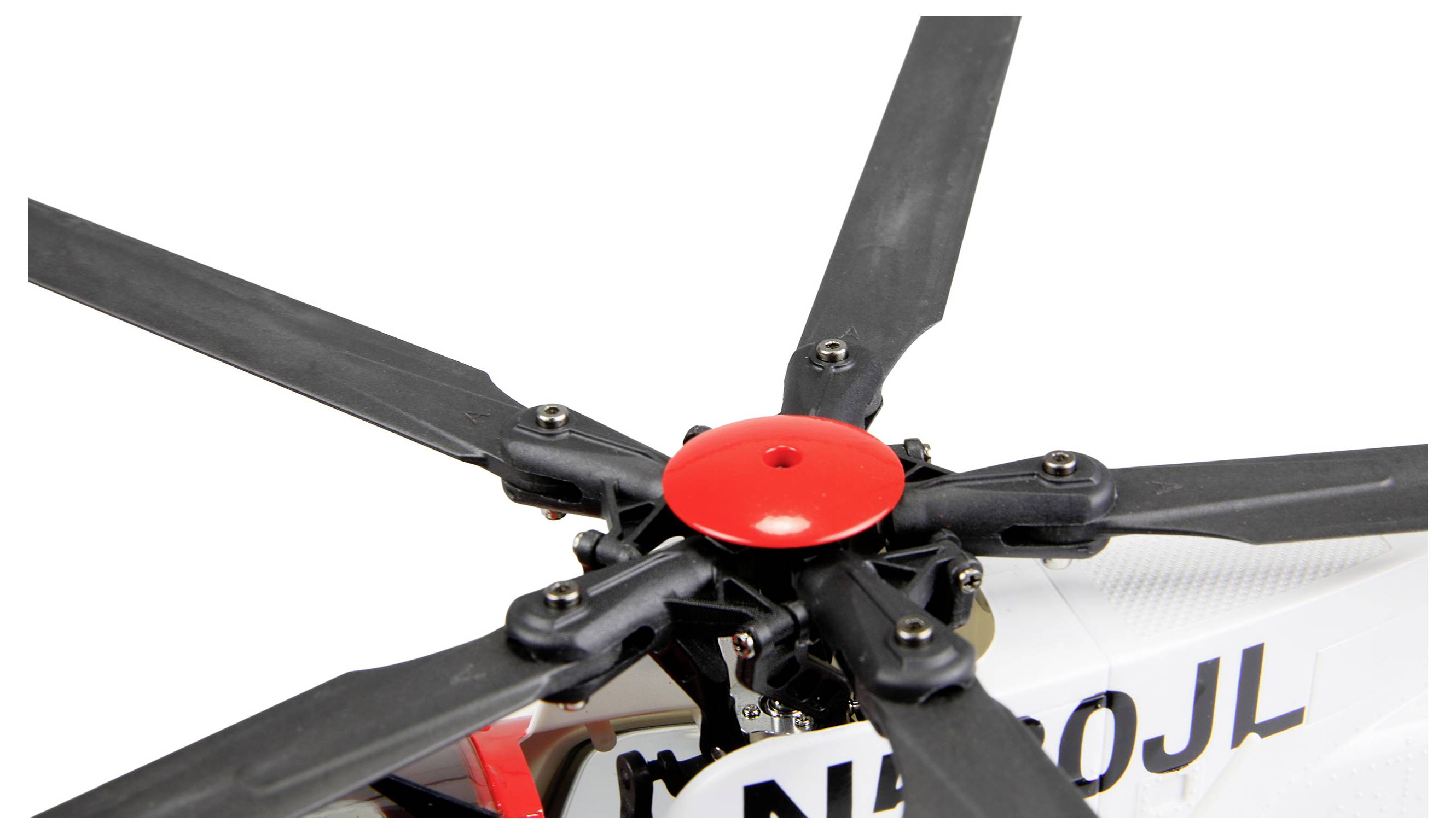

The robust construction combines a resistant plastic chassis with precise CNC-milled components such as rotor head and swashplate, some of which are made of aluminum. The flybarless rotor system with five rotor blades is oriented to the original and ensures high efficiency and realistic flight patterns. Powerful brushless motors drive the main and rear rotors and ensure a reliable performance. The model also visually convinces with a detailed scale design including chassis, functional doors, expanded cockpit and true-to-original paint.
The control takes place via a programmable 9-channel remote control with 2.4 GHz technology and bi-directional data transmission, which transmits the telemetry data like GPS signal, altitude, speed, orientation and battery status in real time. Fast digital 4.3g servos with metal drive and an adjustment time of approx. 0.05 seconds ensure precise control reactions and a direct flight feeling.

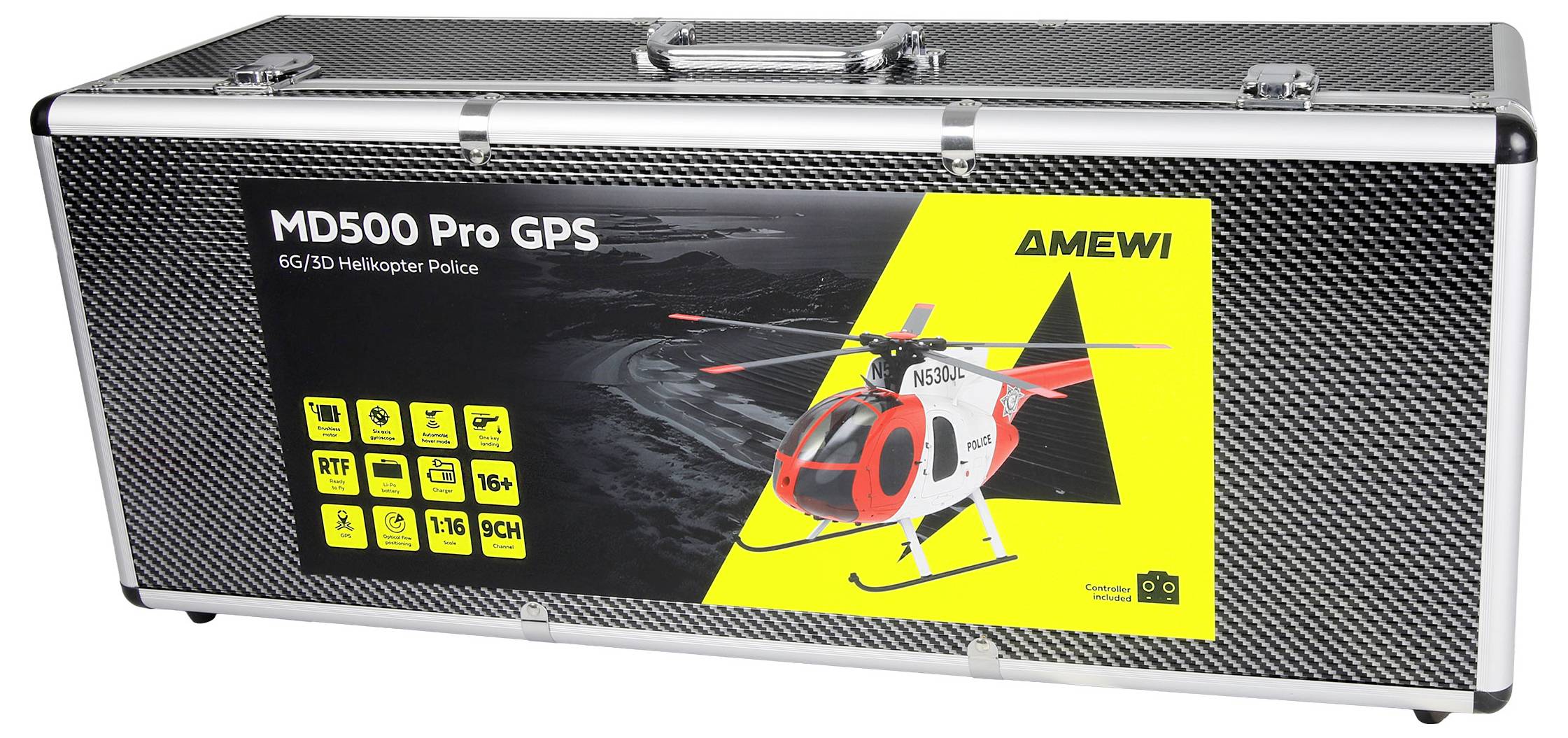

The model is delivered as a ready-to-fly complete set including remote control, charger and a powerful 3S LiPo battery with 11.1V and 3500mAh, which enables flight times of up to approx. 15 minutes. An integrated LiPo tester monitors the battery status continuously and activates the return or landing function automatically if required. All components are stored securely in a high-quality aluminum carrying case.
This text is machine translated.
The robust construction combines a resistant plastic chassis with precise CNC-milled components such as rotor head and swashplate, some of which are made of aluminum. The flybarless rotor system with five rotor blades is oriented to the original and ensures high efficiency and realistic flight patterns. Powerful brushless motors drive the main and rear rotors and ensure a reliable performance. The model also visually convinces with a detailed scale design including chassis, functional doors, expanded cockpit and true-to-original paint.
The control takes place via a programmable 9-channel remote control with 2.4 GHz technology and bi-directional data transmission, which transmits the telemetry data like GPS signal, altitude, speed, orientation and battery status in real time. Fast digital 4.3g servos with metal drive and an adjustment time of approx. 0.05 seconds ensure precise control reactions and a direct flight feeling.
The model is delivered as a ready-to-fly complete set including remote control, charger and a powerful 3S LiPo battery with 11.1V and 3500mAh, which enables flight times of up to approx. 15 minutes. An integrated LiPo tester monitors the battery status continuously and activates the return or landing function automatically if required. All components are stored securely in a high-quality aluminum carrying case.
This text is machine translated.
Features
- LIDAR TOF and geomagnetic GPS positioning system: For stabilized flying mode, lifting and other useful functions like auto-start, auto-return, auto-landing, auto-circular flight and automatic eight-flying
- Optical Flight Mode Sensor System: Allows both beginners and experienced pilots to experience a smooth and controlled flying experience
- New stabliisation system for all axles of the model: Substantially improved flight characteristics for persons who are not so experienced pilots with many safety features

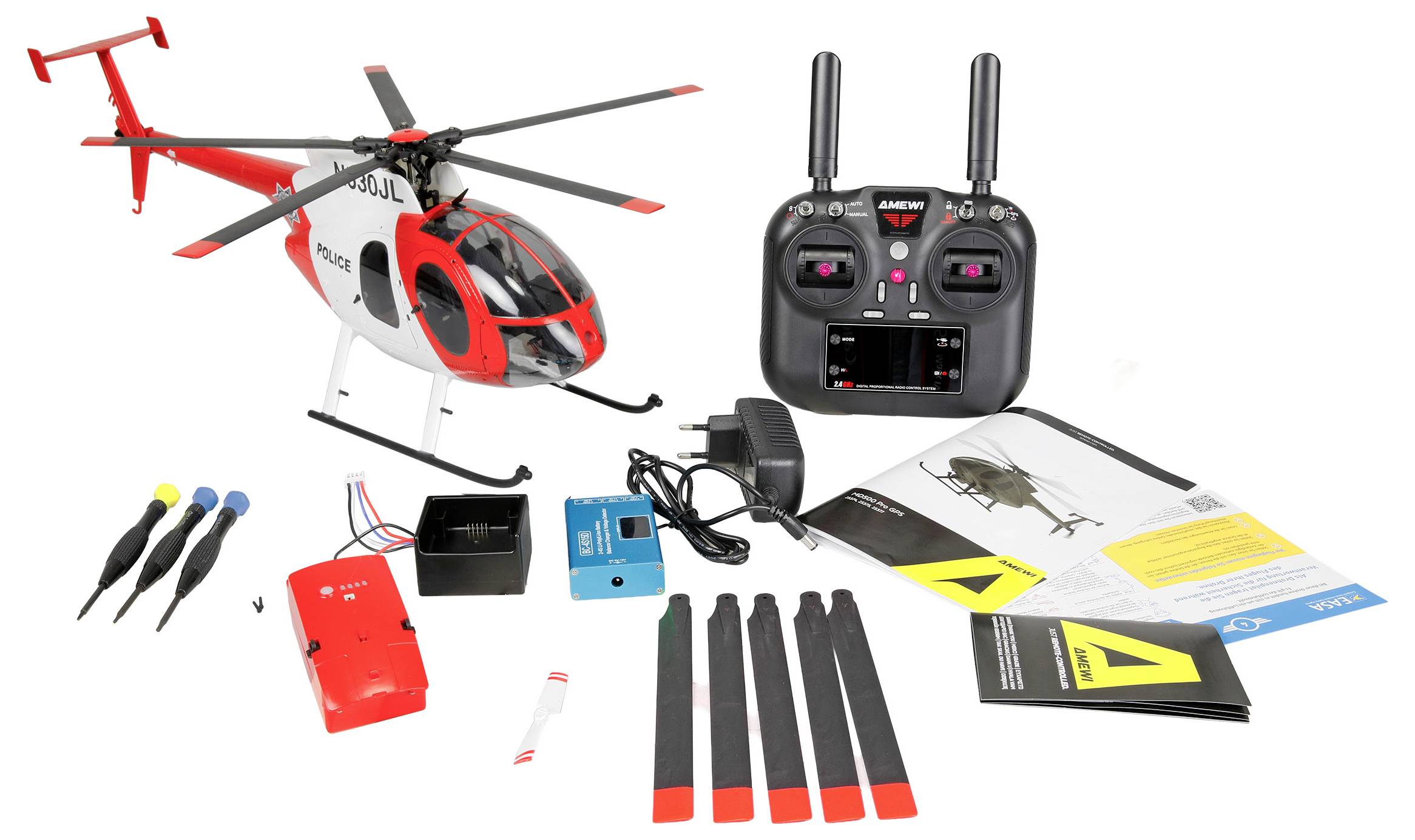

Scope of delivery
- Model
- Radio control
- Accumulator
- Charger
- Attachments
- Tools
- Instructions DE/EN
