Andreas Maier Schloss-u. Werkzeugfabrik 93021 Fixing kit Content 1 pc(s)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details

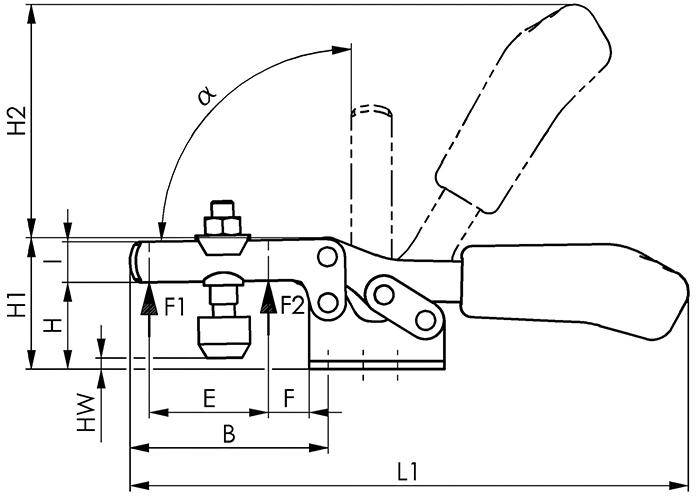

Horizontal clamp 93021 size 2 holding force (F1) 1.00kN holding force (F2) 1.20kN height 45mm length 162mm pressure screw M6 x
- Bore diameter 5.6 mm
- Size: 2
- Holding force F1: 1 kN
- Holding force F2 1.2 kN
- Height of tensioned 45 mm
- Length tensioned by 162 mm
- Brand: AMF
- Clamping height 24 mm
- Clamping width 32 mm
Technical specifications
- Horizontal tensioner No.6830 | Size 2 44mmx176mm
- Minimum order quantity: 1 pcs
- Size: 2
- Holding force (F1): 1,00kN
- Holding force (F2): 1.20kN
- Height: 45mm
- Length: 162mm
- Thrust screw M6 x 35
- Weight 185g
- Content
1 pc(s)
- Product type
Fixing kit
- Width
65 mm
- Total length
162 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3759203 Andreas Maier Schloss-u. Werkzeugfabrik 93021 Fixing kit Content 1 pc(s)
Description

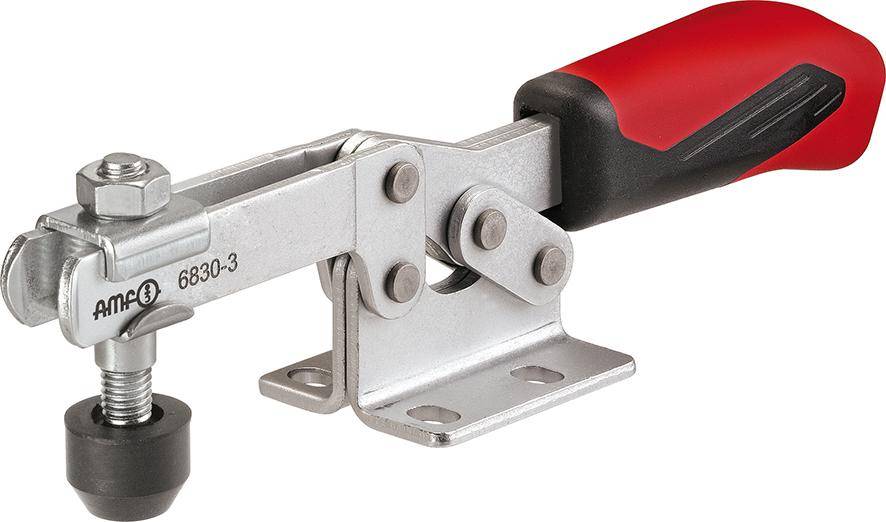

Horizontal clamp, with horizontal base
• Galvanised, passivated
• Stainless steel rivet
• From size 2, case hardened bearings
• Bearing points greased
• Open holding arm
• Ergonomic handle made of red oil resistant plastic, with large palm rest and soft component
• Also suitable for the food industry
Delivery: Complete with tempered, galvanized screw.
This text is machine translated.
• Galvanised, passivated
• Stainless steel rivet
• From size 2, case hardened bearings
• Bearing points greased
• Open holding arm
• Ergonomic handle made of red oil resistant plastic, with large palm rest and soft component
• Also suitable for the food industry
Delivery: Complete with tempered, galvanized screw.
This text is machine translated.
Scope of delivery
- 21020701
