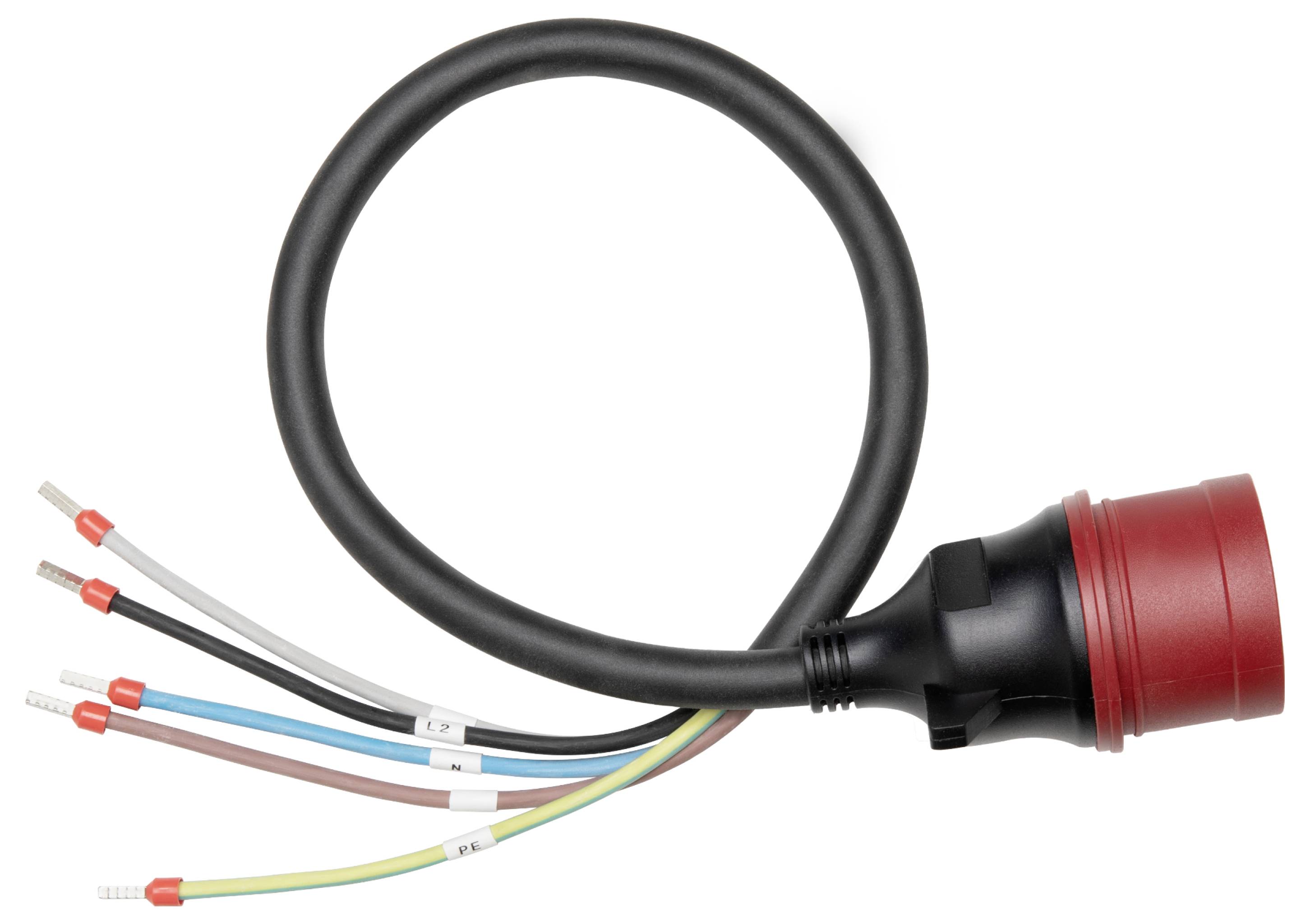

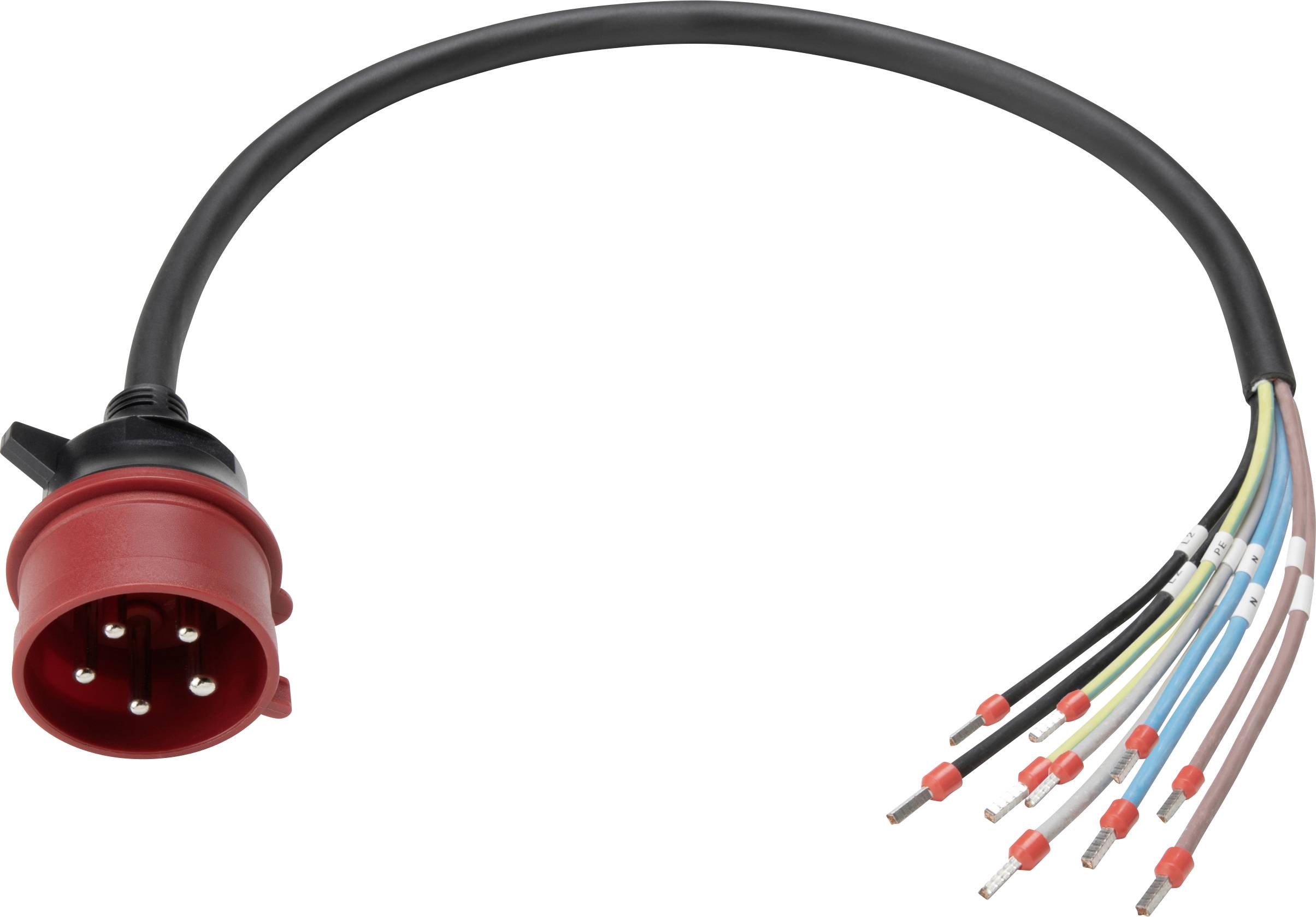

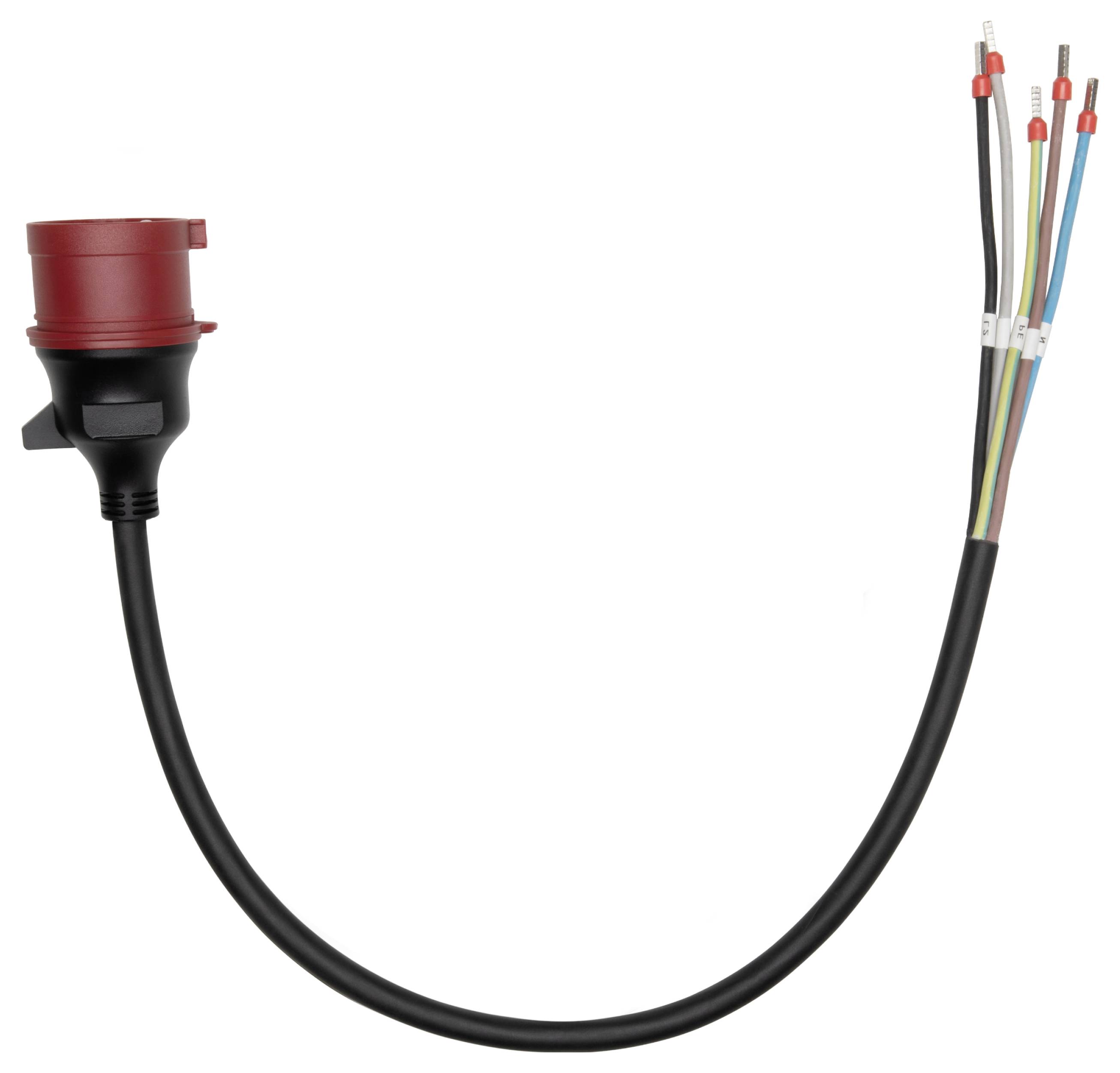

Anker A5191GZ2-83 Wallbox 16 A
EAN:
Part number:
Item no:
Highlights & Details
Anchor SOLIX CEE-16A three-phase plug A5191GZ2-83;Wallbox
- Optimized for 11kW: Perfect connection to your 11kW anchor SOLIX V1 E-car charger.
- Ready for combiner-box: Integrates seamlessly into the anchor SOLIX Power dock.
- Simple Setup: Connect the cable in the charger and simply plug in – done.
- This text is machine translated.
Technical specifications
- Material: PVC.
- Flame protection class UL94-V0
- Operating temperature: -40°C to + 105°C.
- Product type
Wallbox
- Cable length
60 cm
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Factory colour
Red
IP44
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3466393 Anker A5191GZ2-83 Wallbox 16 A
Information
Information 3466393 Anker A5191GZ2-83 Wallbox 16 A
Conformity certificate
Conformity certificate 3466393 Anker A5191GZ2-83 Wallbox 16 A
Description
Hints
Select the matching CEE plug
Your charger is available in three different power levels, in order to perfectly match your requirements.
7.4 kW V1 Smart charger:
Works with CEE 32A single-phase plugs.
Maximum charging output 7.4 kW.
11 kW V1 Smart charger:
Compatible with CEE 16A and 32A three-phase plugs. Maximum charging output 11 kW.
Compatible with CEE 32A single-phase plugs. Maximum charging power in single-phase operation: 3.68 kW.
22 kW V1 Smart charger:
Compatible with CEE 32A three-phase plugs. Maximum charging output 22 kW.
Compatible with CEE 32A single-phase plugs. Maximum charging power in single-phase operation: 7.4 kW.
