Name: Apranet 26519705 19 inch Server rack cabinet fixings
Brand: Apranet
SKU: 3400319

A square cage nut fixing element made of black plastic with an integrated metal nut.

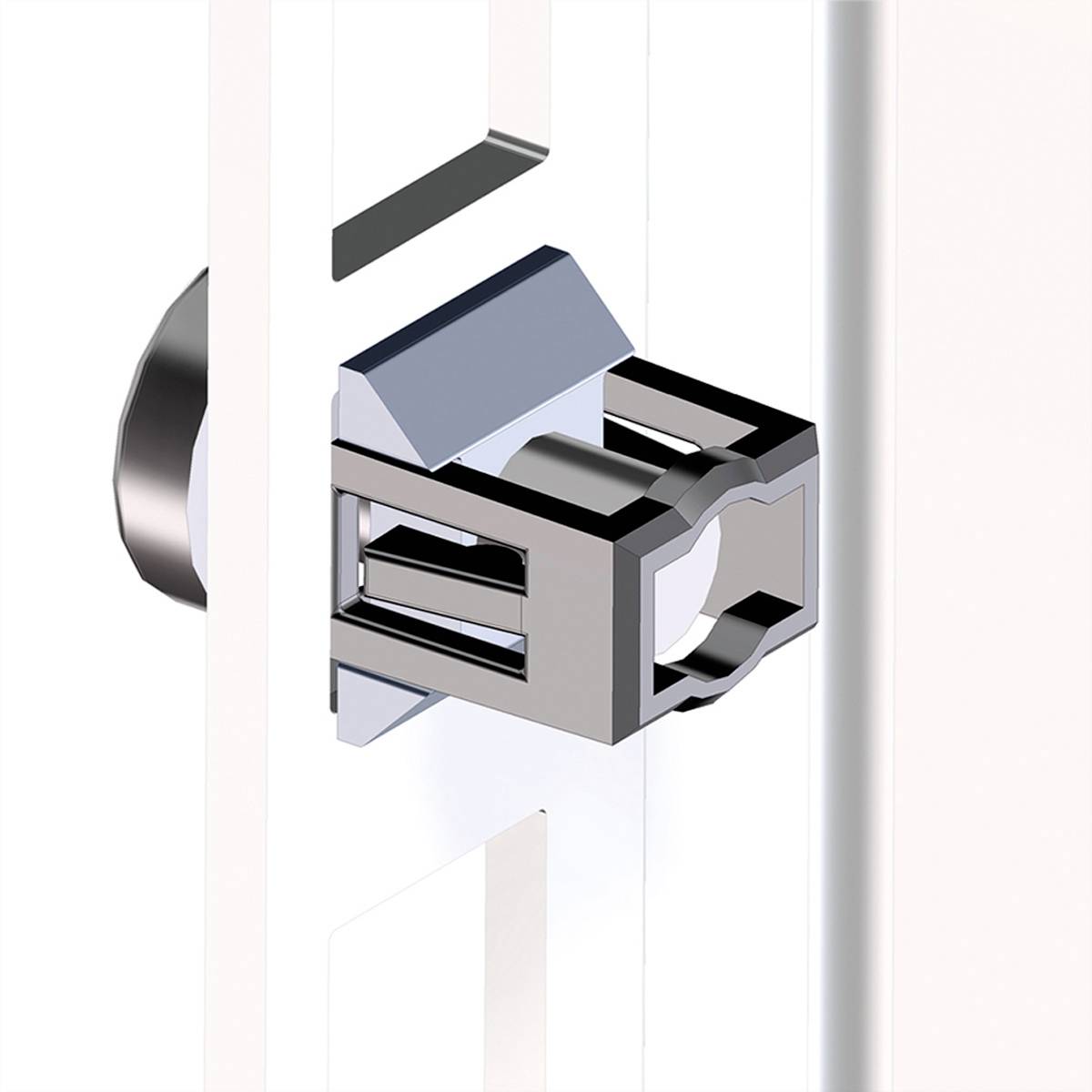

A modern, silver-coloured door handle construction mounted on a glass frame. The robust design provides security and style.

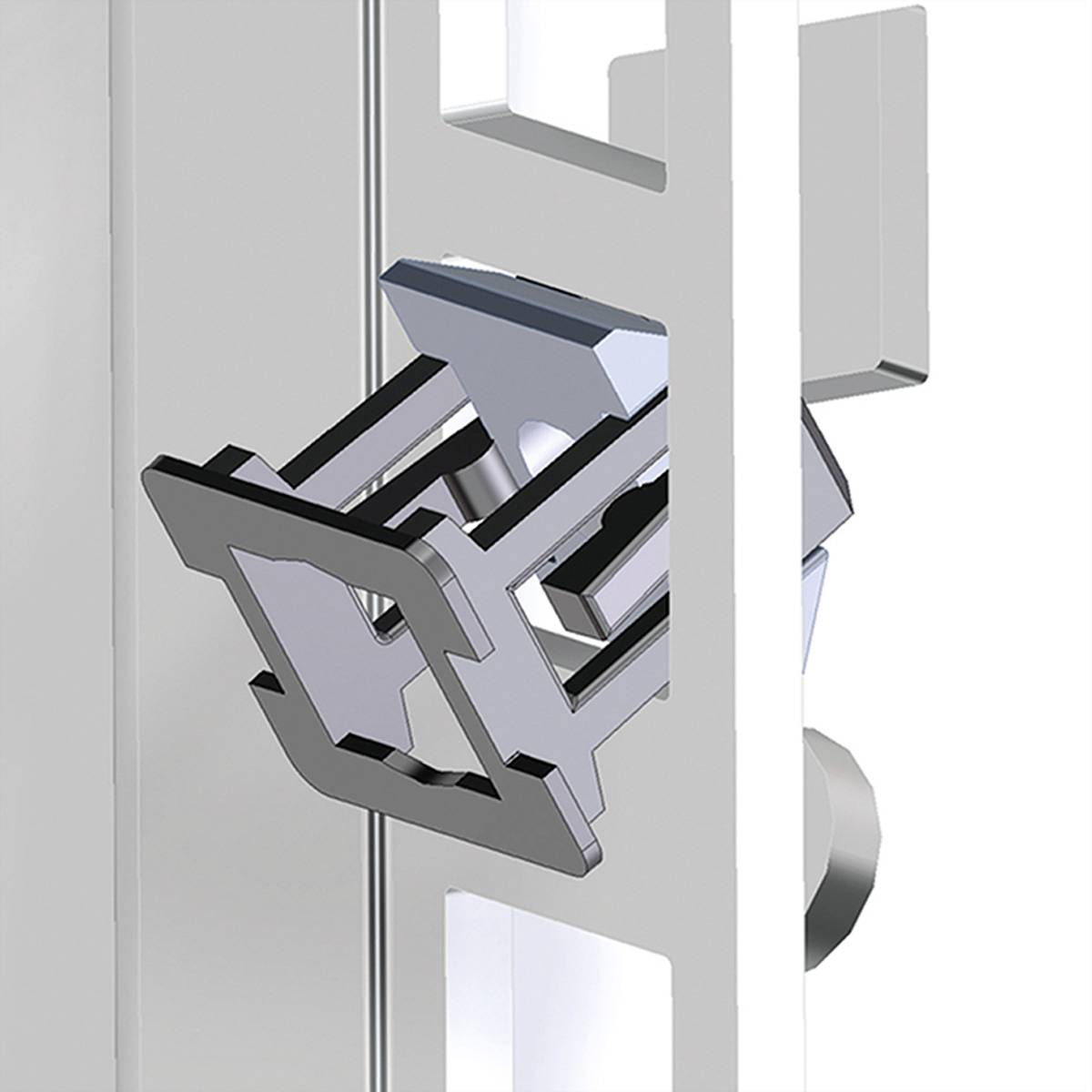

Detailed close-up of a metal device with intricate, interlocking components attached to a white structure.

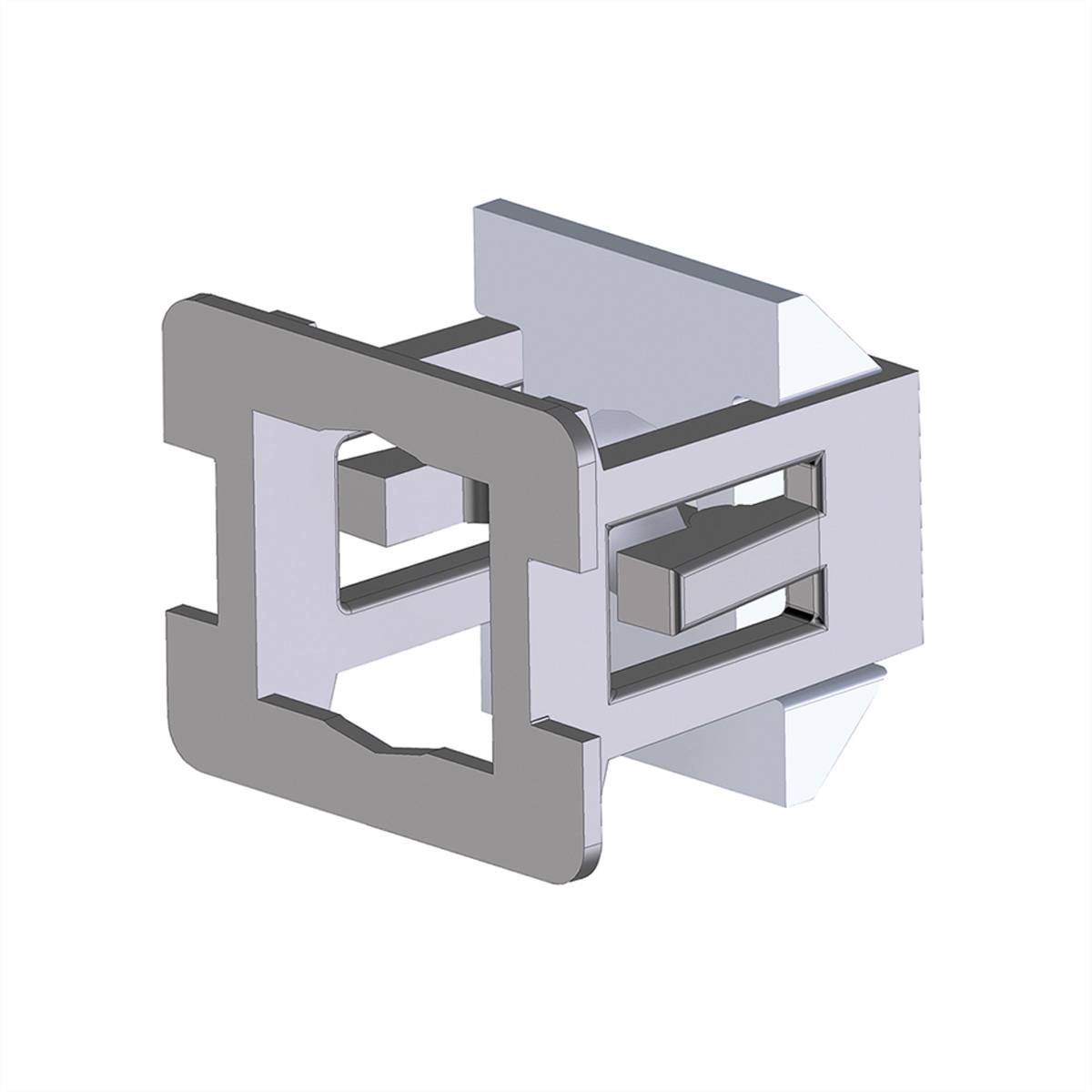

A grey mechanical component with square apertures, likely part of a larger industrial system or machine part.

1/4

Apranet

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Server rack cabinet fixings

Suitable for server rack cabinet (inch): 19 inch

Material: Steel (galvanized)

Content: 4 pc(s)

Rack size: 483 mm (19")

Documents & Downloads

Datasheet

Datasheet 3400319 Apranet 26519705 19 inch Server rack cabinet fixings

User & Safety Instructions

User & Safety Instructions 3400319 Apranet 26519705 19 inch Server rack cabinet fixings

Description

19” M5 (4-way) cage nut set consisting of 4 M5 insert-in cage nuts each, M5 x 16 mm lens screws, plastic rosettes
Fast, tool-free assembly by plugging in from front
No threading from the back, as in standard cage nuts
Undetachable by latching mechanism after insertion
Can be removed by unlocking
Application area: Up to material thickness 3 mm
Material: Thread insert: Galvanized steel, plastic housing: PA (black)

This text is machine translated.
