aranet TDSBOB03 Data logger gateway

Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions

Technical specifications

Product type

Data logger gateway

Memory

10 year measurements of 100 sensors

Manufacturer's standards (no certificate)

Power supply (details)

PoE 802.3af

Dim

(L x W x H) 45 x 180 x 120 mm

Weight

250 g

Channels

12

Width

180 mm

Height

120 mm

Length

45 mm

Interfaces

Ethernet

Wi-Fi

Radio

IP67

Power supply

PoE (Power over Ethernet)

Type

TDSBOB03

Documents & Downloads

Datasheet

Datasheet 2826695 aranet TDSBOB03 Data logger gateway

User & Safety Instructions

User & Safety Instructions 2826695 aranet TDSBOB03 Data logger gateway

Information

Information 2826695 aranet TDSBOB03 Data logger gateway

Information 2826695 aranet TDSBOB03 Data logger gateway

Information 2826695 aranet TDSBOB03 Data logger gateway

Information 2826695 aranet TDSBOB03 Data logger gateway

Information 2826695 aranet TDSBOB03 Data logger gateway

Information 2826695 aranet TDSBOB03 Data logger gateway

Information 2826695 aranet TDSBOB03 Data logger gateway

Information 2826695 aranet TDSBOB03 Data logger gateway

Information 2826695 aranet TDSBOB03 Data logger gateway

Description

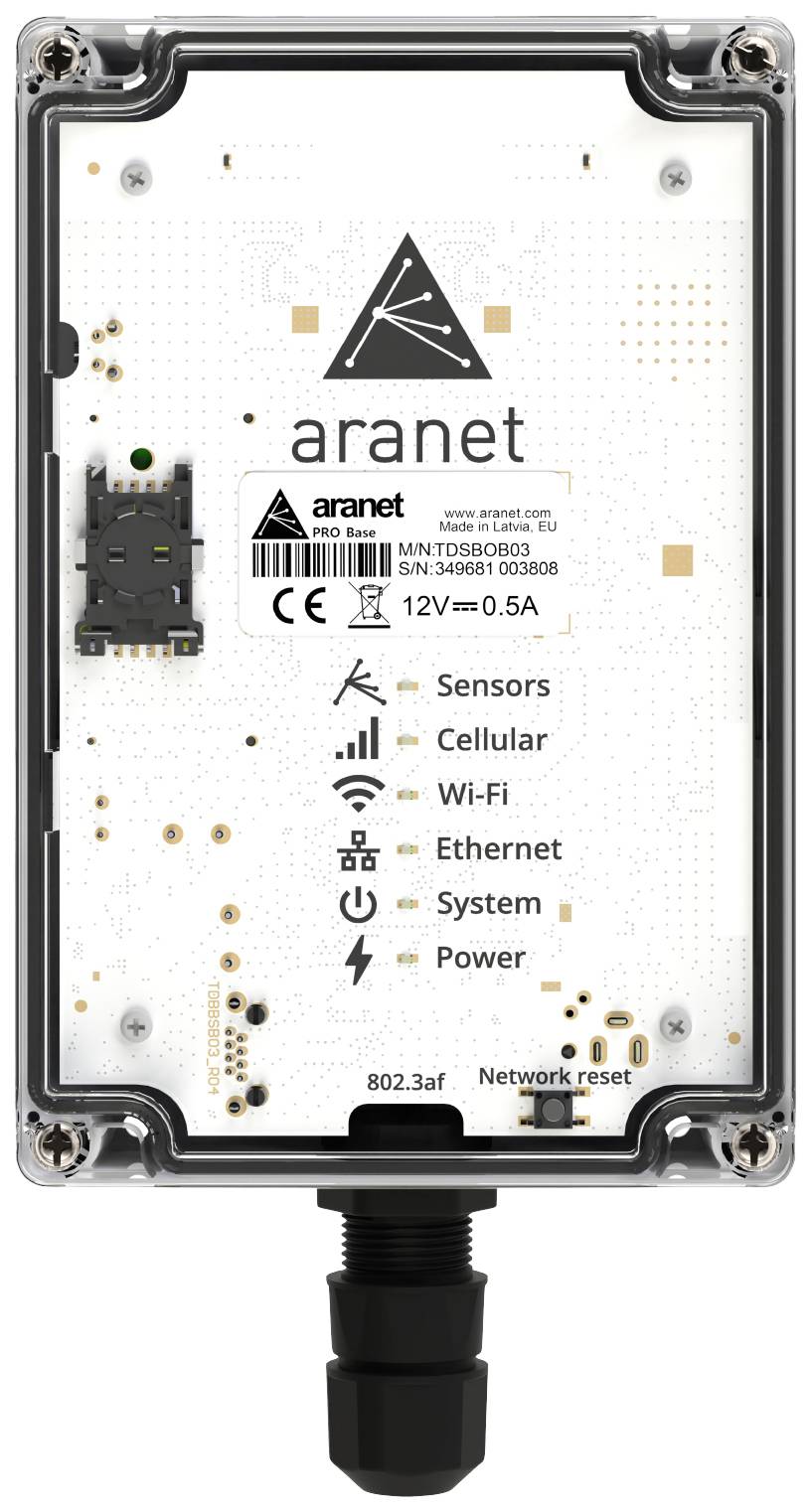

The Aranet Base Station PRO PLUS LTE is an outdoor environment monitoring solution that acts as a gateway, data storage and web server. It collects and stores data without risk of loss.Main features of the Aranet PRO PLUS LTE base station: Acts as a 3 in 1 gateway, web server and local data storage. Internal memory: 10 years measurement data available even in the event of an Internet failure. IP67protection class Communication: Ethernet cable, local WLAN (2.4 GHz), GSM LTE 4G. Built-in server with sensor stroke software. Connection with up to 100 Aranet sensors.The range of the sensors is up to 3,000 meters outdoors and several hundred meters in buildings. Depending on the sensor, battery life is up to 10 years. The sensors are installed without cables. The Aranet ecosystem provides a complete end-to-end monitoring solution. The Aranet sensors are quality products "Designed & manufactured in the EU". There are no licensing costs – the total cost of ownership (TCO) over 5 or 10 years is very reasonable. The Aranet cloud is chargeable – it is operated in Latvia, i.e. on European servers and is continuously developed with Hohem expenditure. Maximum data protection and highest reliability are ensured. There are several options for integrating with existing back end systems or platforms.

This text is machine translated.
