Arcol HS25 5K6 J HV resistor 5.6 kΩ 25 W 1 pc(s)

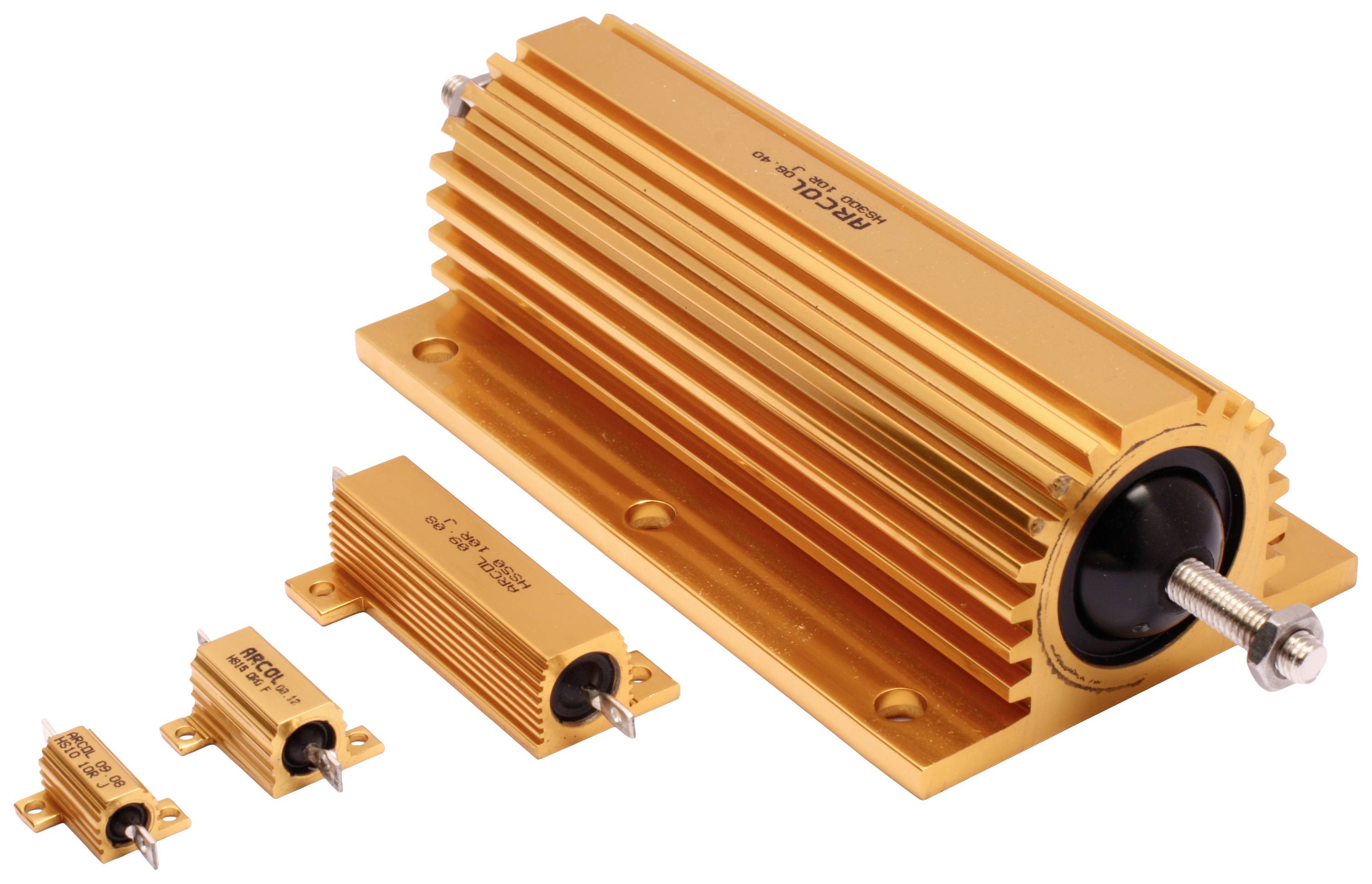

Three smaller and one larger gold-coloured aluminium resistor in various sizes, placed side by side on a white background.
Product type
HV resistor
Resistance
5.6 kΩ
Power rating
25 W
Content
1 pc(s)
Width
28.0 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 4.29 / piece)
€ 4.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Arcol HS25 5K6 J 25W Aluminium Clad Resistor

Our service for you

Technical specifications

  • 550 V
Product type

HV resistor

Resistance

5.6 kΩ

Power rating

25 W

Width

28.0 mm

Height

14.6 mm

Max. temperature

+200 °C

Content

1 pc(s)

Dim

(W x H) 28.0 mm x 14.6 mm

RoHS-compliant

Yes

Type

HS25 5K6 J

Documents & Downloads

Datasheet

Datasheet 3014058 Arcol HS25 5K6 J HV resistor 5.6 kΩ 25 W 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3014058 Arcol HS25 5K6 J HV resistor 5.6 kΩ 25 W 1 pc(s)

Description

Features

  • Case Type: Chassis mount|Power Handling: 25W|Resistance: 5600Ω|Temperature Coefficient: 25ppm/°C|Tolerance: 5%|Type: Wirewound aluminium clad|Working Voltage: 550V
