AS Schwabe Industrial power distributor G-M22 63260 230 V 32 A
EAN:
Part number:
Item no:
Highlights & Details

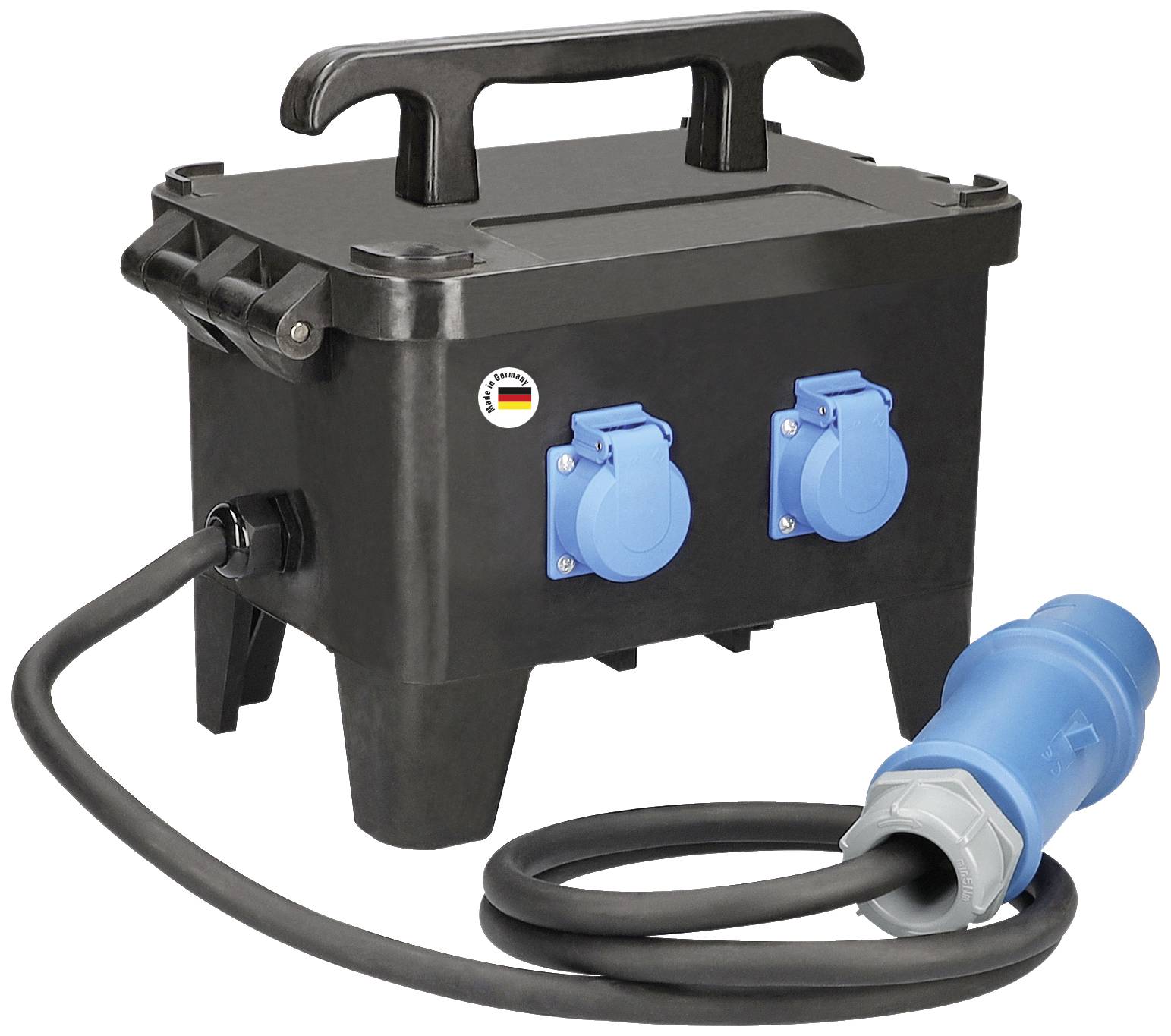

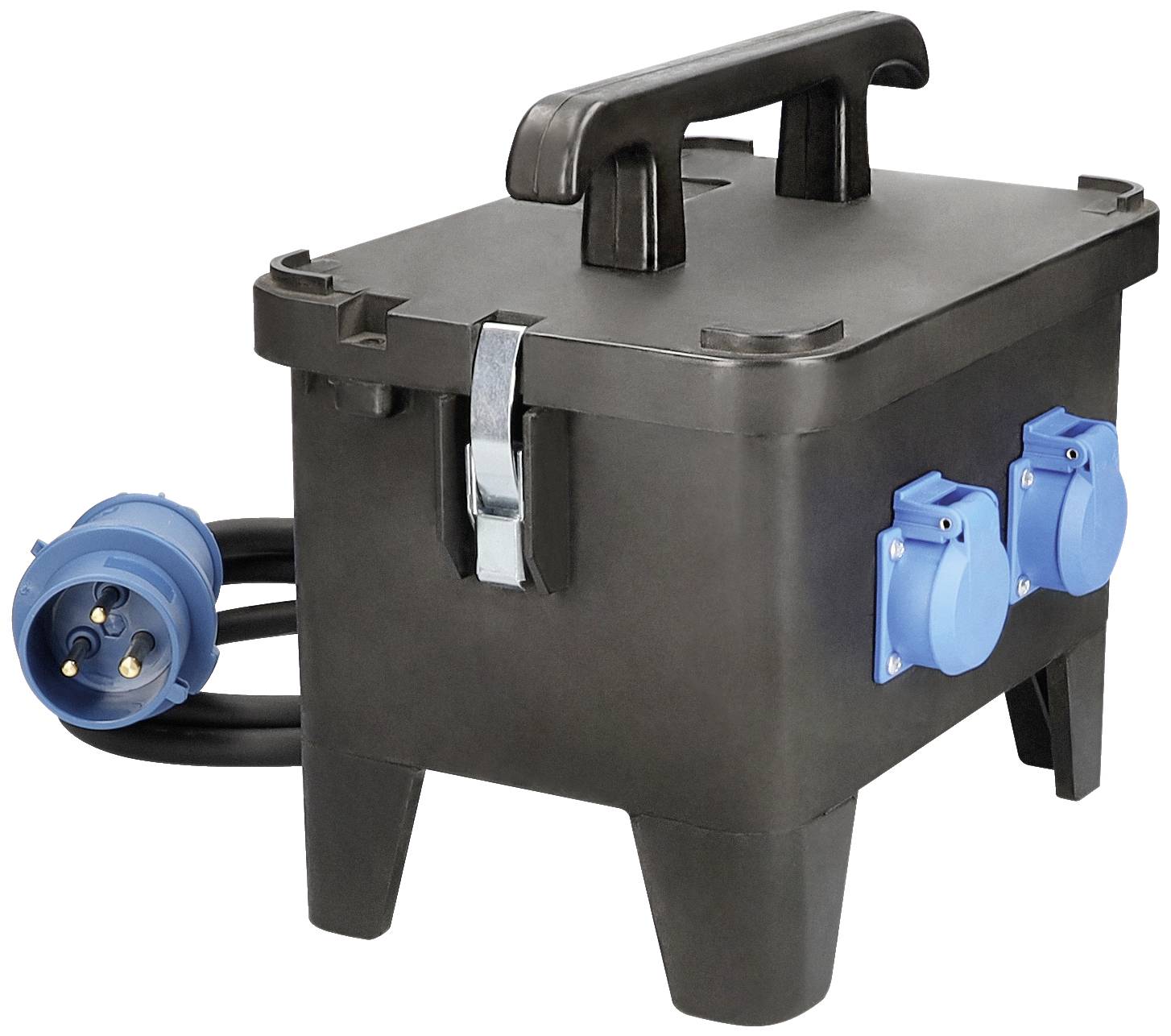

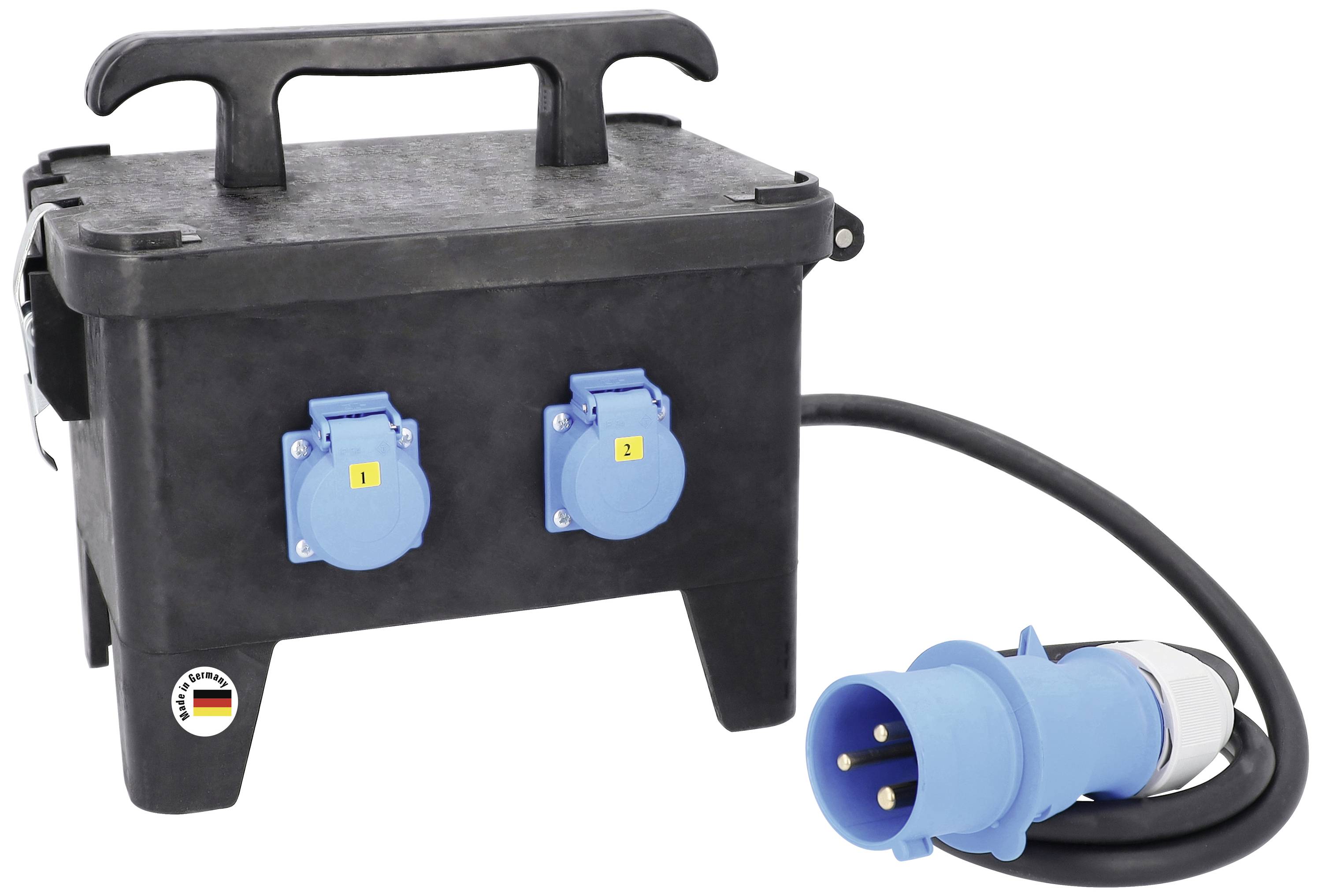

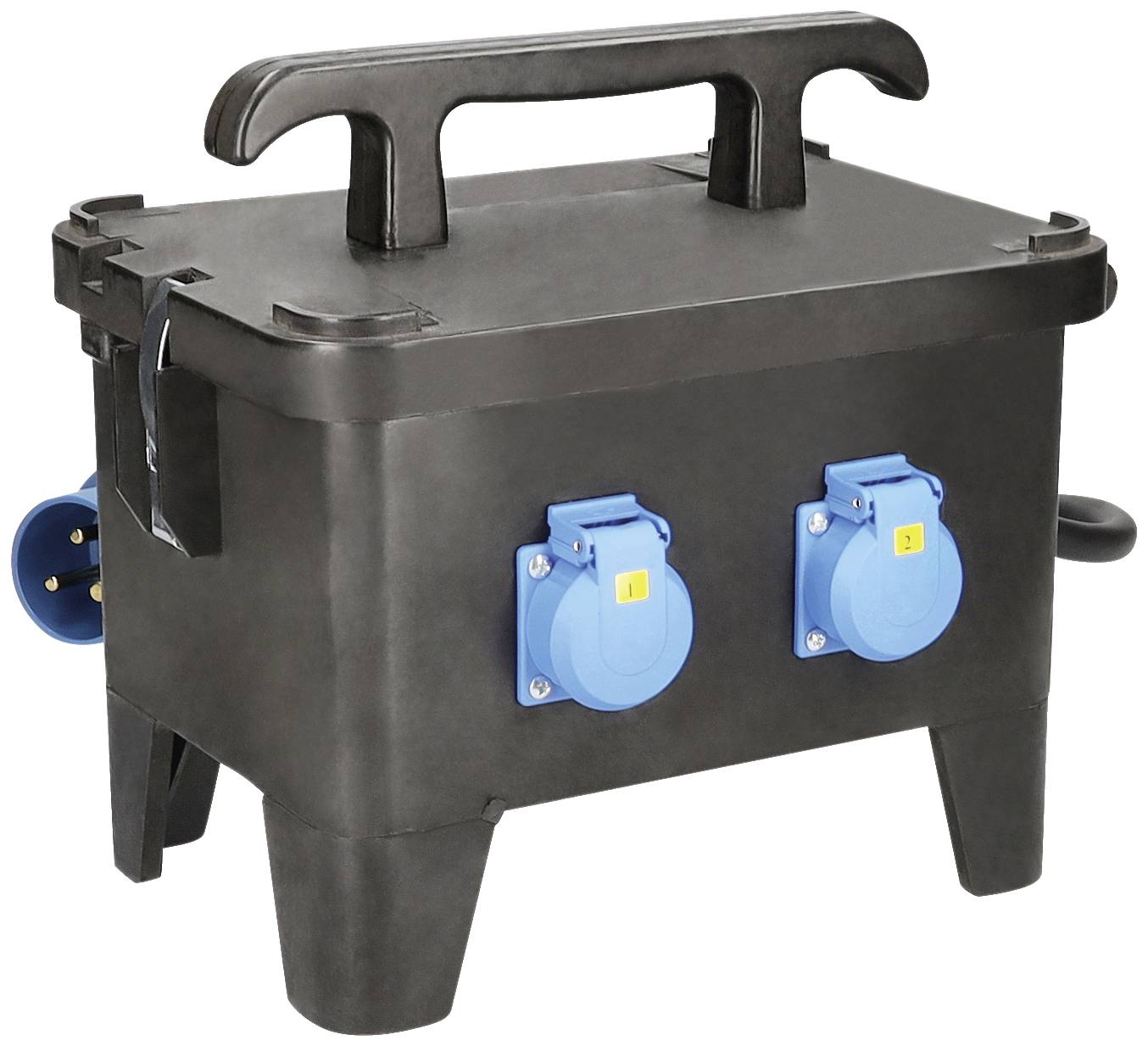

as - Schwabe mobile full rubber power distributor, G-M22, 7.2 kW
- 4 sockets 230 V / 32 A
- 2 m H07RN-F 3G6 cable
- 4 combination switch FI/LS 2-pin
Technical specifications
- Product type
Industrial power distributor
- Type A
CEE plug (3-pin, 32 A)
- Type B
PG socket
- No. of PG sockets
4
- Inputs
1
- Outputs
4
- Nominal input voltage
230 V
- Nominal output voltage
230 V
- Nominal input current
32 A
IP44
- Cable length
2 m
- Cable standard
H07RN-F 3G 6 mm²
- Standards
Tested according to DIN VDE 0620-2-1, IEC 60309, DIN EN 50525-2
- Dim
(L x W x H) 330 x 245 x 290 mm
- Length
330 mm
- Width
245 mm
- Height
290 mm
- Content
1 pc(s)
- Number of pins
3
- Cable type
H07RN-F
- Insulation material
Neoprene
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2891092 AS Schwabe Industrial power distributor G-M22 63260 230 V 32 A
Description
The power distributor has the protection class IP44 and is Ideal suitable for the application in the external area and on construction sites

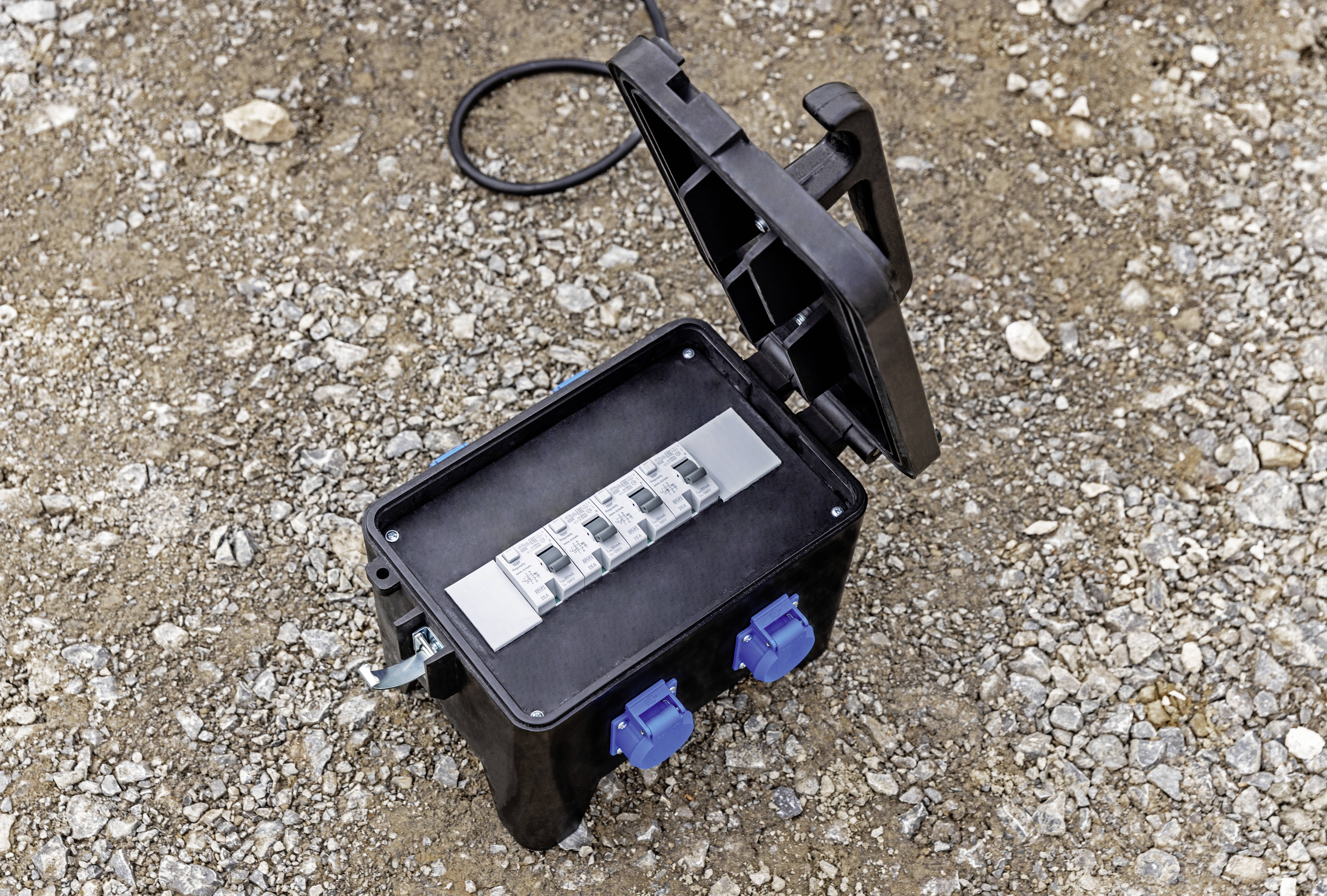

The construction site distributor is safe from accidental contact in accordance with BGV A2. The fuses also provide additional security: 4 circuit breakers FI/LS C16A, 30mA, 10kA, type A, additional security provided by a padlock
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
The construction site distributor is safe from accidental contact in accordance with BGV A2. The fuses also provide additional security: 4 circuit breakers FI/LS C16A, 30mA, 10kA, type A, additional security provided by a padlock
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
Features
- G Series Power Distribution has a 230V, 32A, 3-pin CEE connector as input
- 4 earthing contact socket-outlets 230V, 16A outputs
- 4x combination switch FI/LS, 2-pole, C16A, 30mA, type A
- Power source can be stacked and is very space-saving.
- Housing cover with stainless steel quick-release fasteners.
- Closed lower housing with 77 mm ground clearance prevents water from entering.
