AS Schwabe Industrial power distributor G-M23 63270 230 V 16 A
EAN:
Part number:
Item no:
Highlights & Details

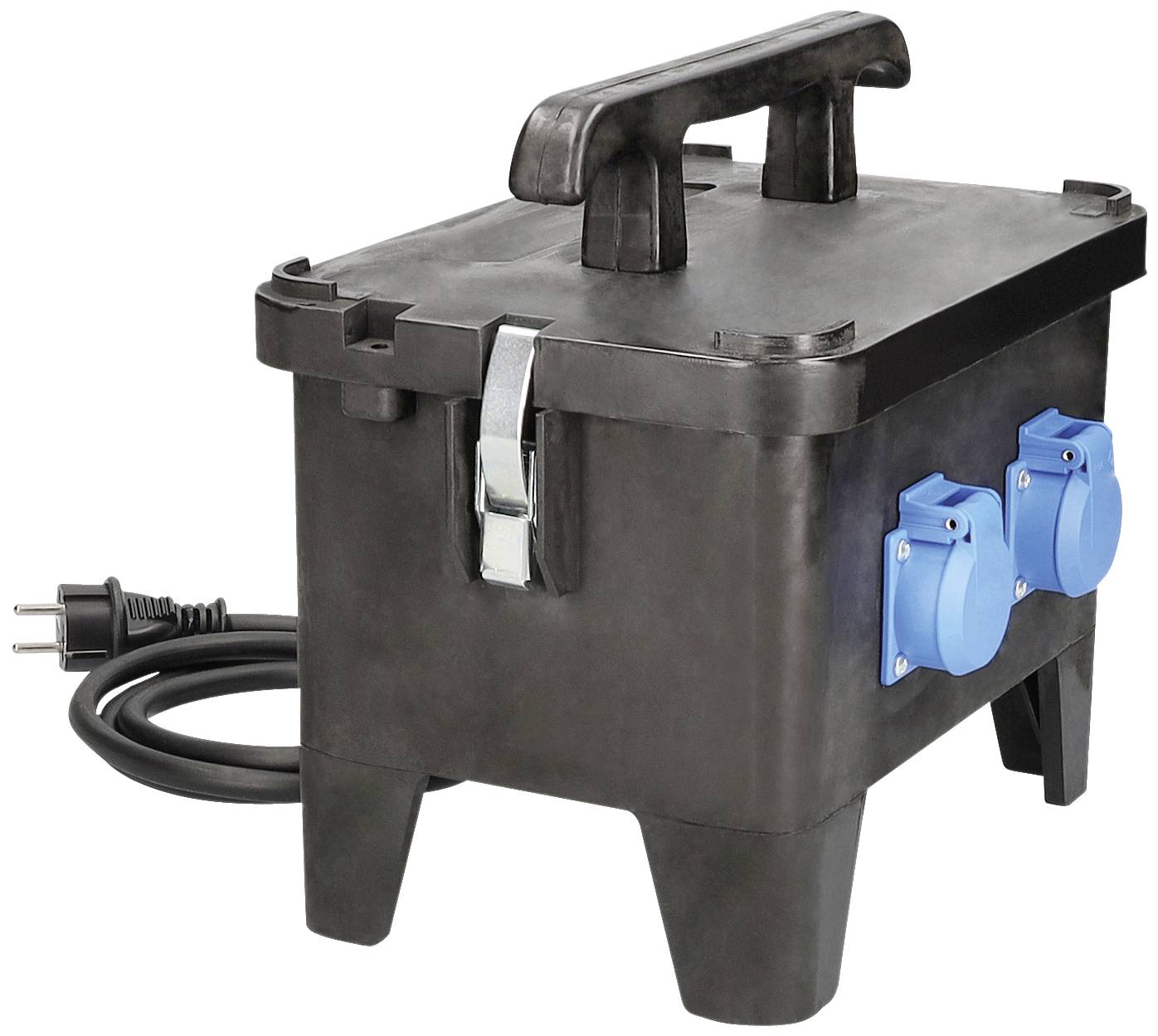

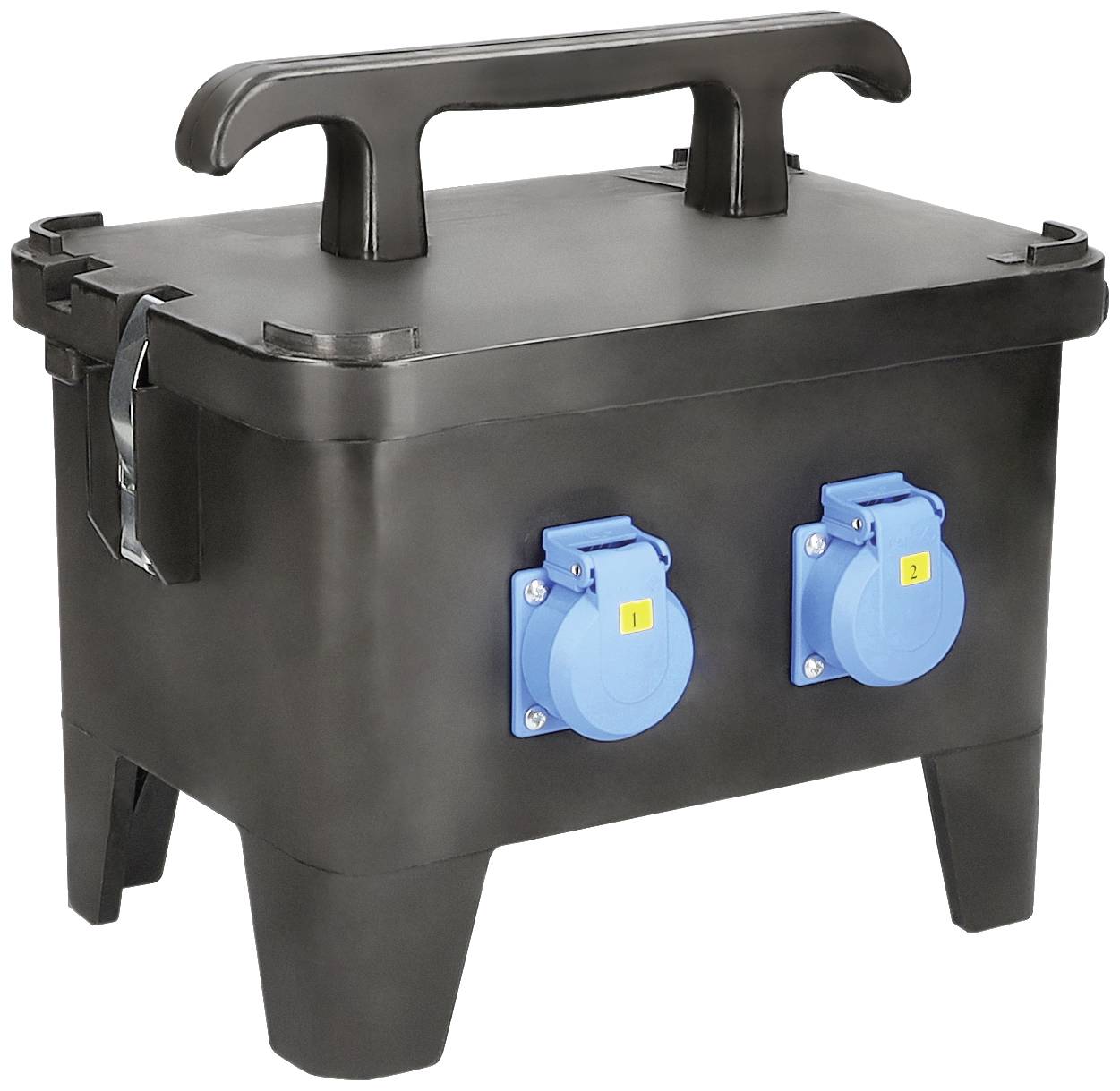

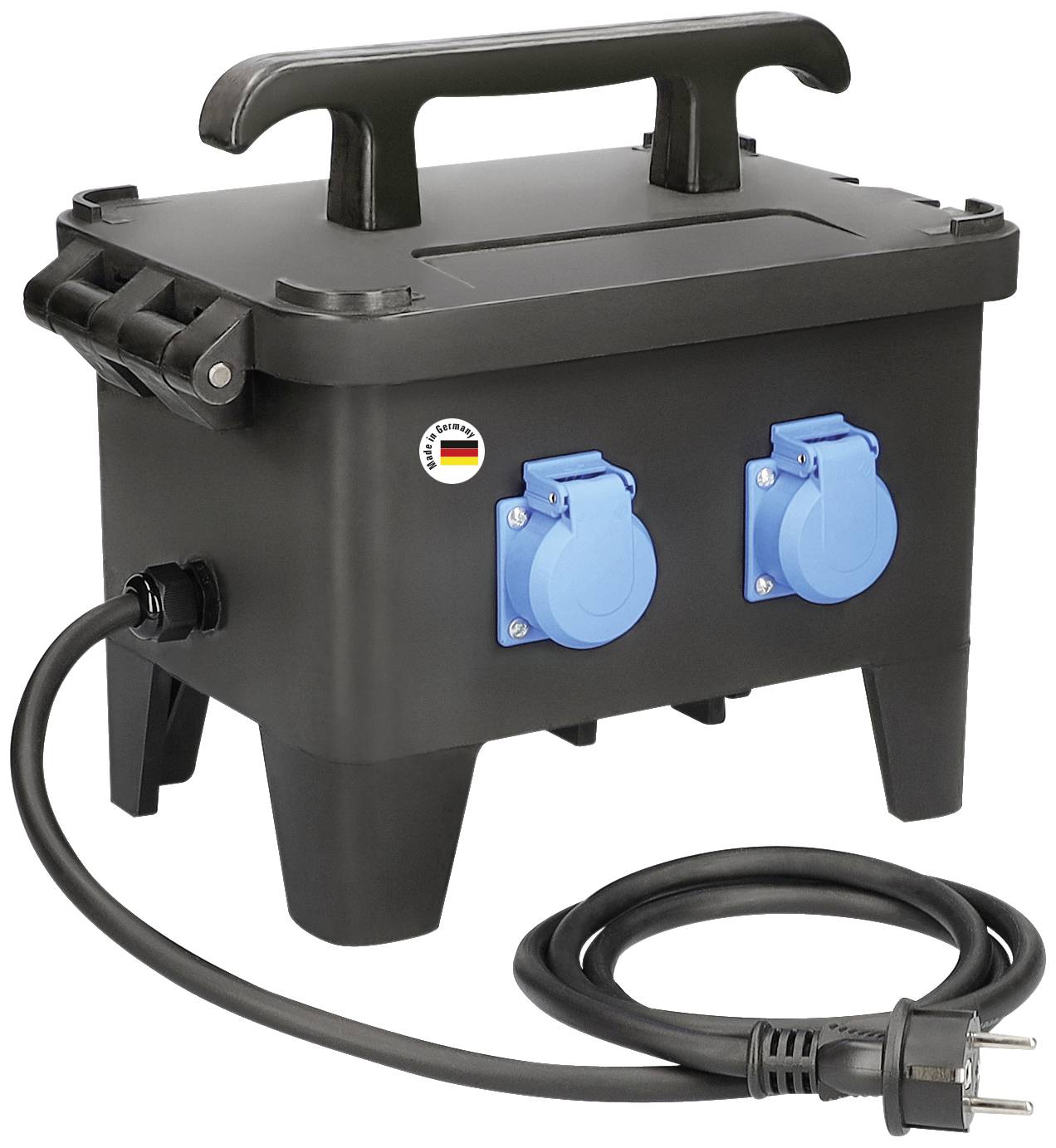

as - Schwabe of mobile full rubber construction current distributor, G-M23, 3.6 kW
- Input: Protective contact plug with 2 m cable
- With 4 sockets 230 V/16 A
- 4 RCCB, black, 63270
Technical specifications
- Product type
Industrial power distributor
- Type A
PG plug
- Type B
PG socket
- No. of PG sockets
4
- Outputs
4
- Nominal input voltage
230 V
- Nominal output voltage
230 V
- Nominal input current
16 A
IP44
- Cable length
2 m
- Cable standard
H07RN-F 3G 2,5 mm²
- Protection
4x circuit breaker 25A, 30mA, 2-pin
- Standards
Tested according to DIN VDE 0620-2-1, IEC 60309, DIN EN 50525-2
- Factory colour
Black
- Dim
(L x W x H) 330 x 245 x 290 mm
- Length
330 mm
- Width
245 mm
- Height
290 mm
- Content
1 pc(s)
- Number of pins
3
- Insulation material
Neoprene
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2891094 AS Schwabe Industrial power distributor G-M23 63270 230 V 16 A
Description
The power distributor has the protection class IP44 and is Ideal suitable for the application in the external area and on construction sites
The construction site distributor is safe from accidental contact in accordance with BGV A2. The fuses provide additional security: 4 FI circuit-breaker 25 A/ 30 mA/ type A, additional safety by padlock
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
The construction site distributor is safe from accidental contact in accordance with BGV A2. The fuses provide additional security: 4 FI circuit-breaker 25 A/ 30 mA/ type A, additional safety by padlock
For over 38 years, as - Schwabe has been convincing with the highest quality in the electrical engineering sector.
as - Schwabe stands for Swabian precision, reliability and innovation.
This text is machine translated.
Features
- The G series power distribution has a 230 V, 16 A safety plug at the input
- 4 earthing contact socket-outlets 230 V, 16 A as output

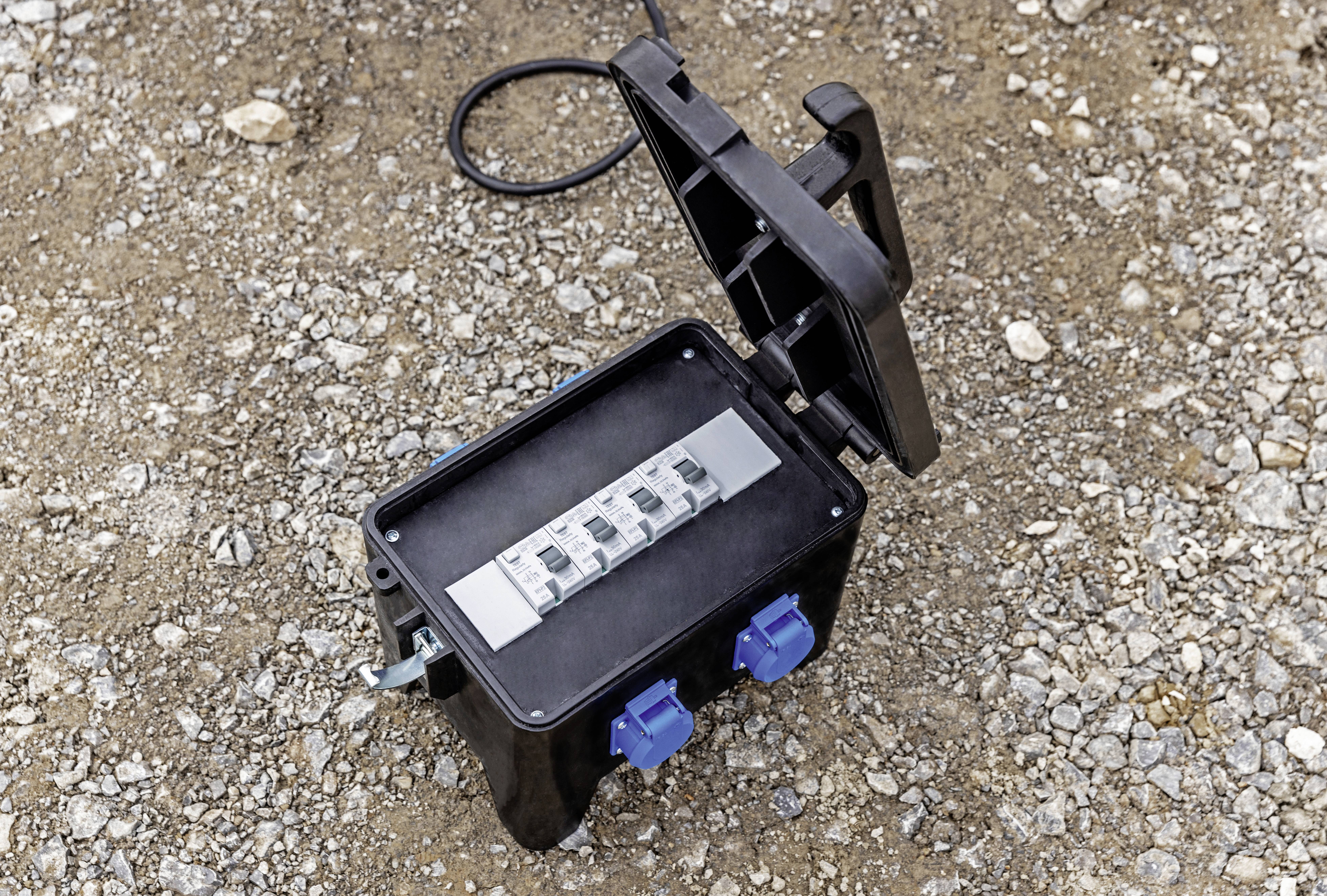

- 4x RCCB, 25A, 30mA, 2-pin
- Power source can be stacked and is very space-saving.
- Housing cover with stainless steel quick-release fasteners.
- Closed lower housing with 77 mm ground clearance prevents water from entering.
