AS Schwabe Industrial power distributor S11+ 60813 400 V 32 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

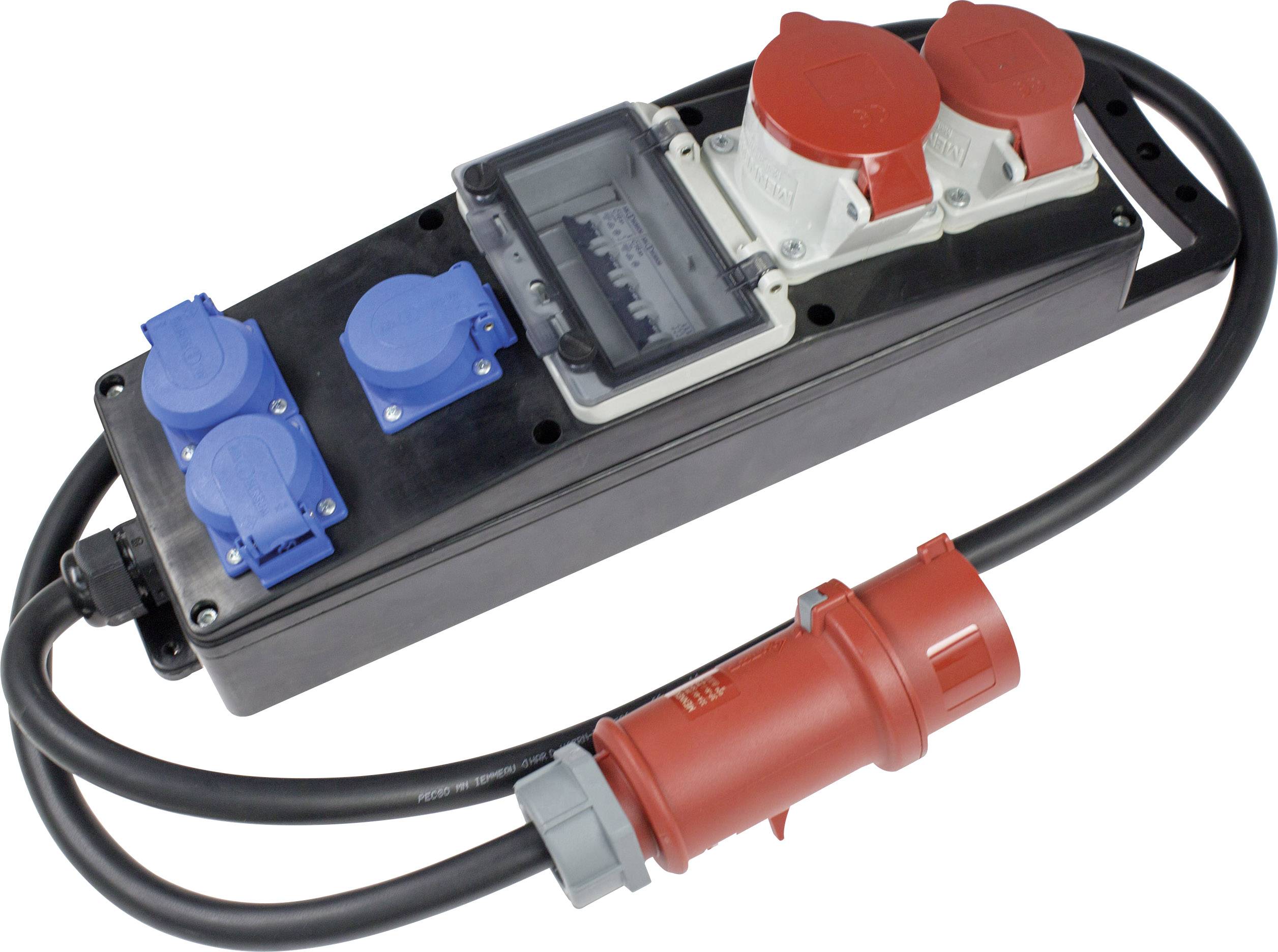

As - Swabia rubber socket strip S11+
- Casing made from extremely robust solid rubber
- Tested according to DIN VDE 0620-2-1, IEC 60309, DIN EN 50525-2
- IP44: Protected against foreign objects and water
- Fuse: 1x LS C 16 A, 3-pin and 1x LS C 16 A, 1-pin
Technical specifications
- Tested according to DIN VDE 0620-1, IEC 60309, DIN 50525-2;Outputs: 1 CEE-sockets 32 A 400 V 5 pin
- 1 CEE sockets 16 A 400 V 5-pin
- 3 earthing contact socket-outlets 16 A/ 230 V
- Product type
Industrial power distributor
- No. of CEE connectors
2
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG socket
- No. of PG sockets
3
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
32 A
IP44
- Cable length
2.00 m
- Cable standard
H07RN-F 5G 6 mm²
- Standards
Tested according to DIN VDE 0620-1, IEC 60309, EN 60439-4, DIN VDE 0282-4
- Dim
(L x W x H) 54 x 25 x 13 cm
- Length
54 cm
- Width
25 cm
- Height
13 cm
- Type
S11+: 400V/32A/5-pin/22kW - outputs: 5
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
- Content
1 pc(s)
- Number of pins
5
- Plug type
CEE connector
- Used at
Outdoors
Documents & Downloads
Datasheet
Datasheet 1857824 AS Schwabe Industrial power distributor S11+ 60813 400 V 32 A
User & Safety Instructions
User & Safety Instructions 1857824 AS Schwabe Industrial power distributor S11+ 60813 400 V 32 A
Description
Practical socket strips made of rubber with diverse combinations of inputs and outputs
