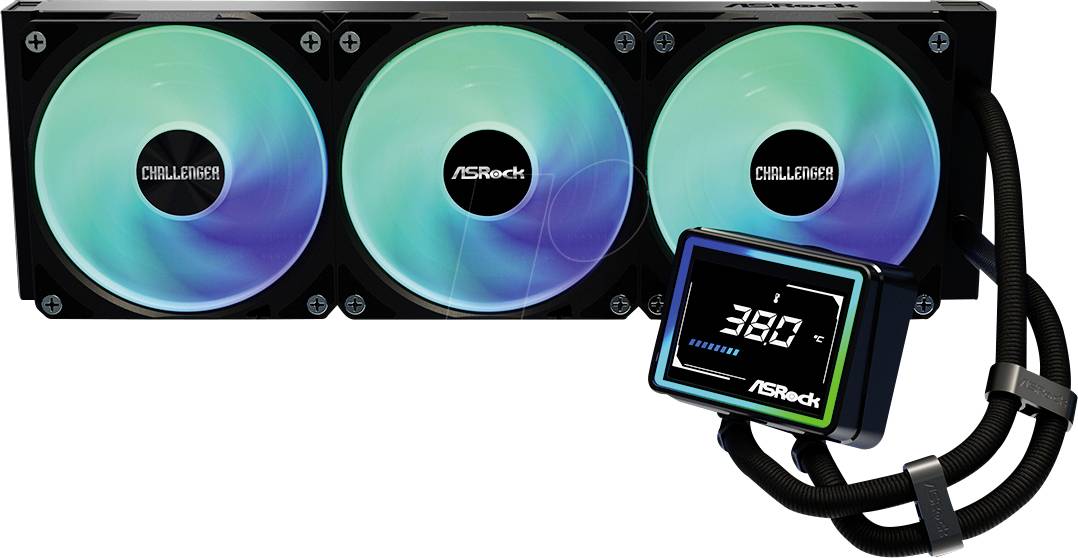

ASRock ASRock Challenger 360 Digital PC water cooling
EAN:
Part number:
Item no:
Highlights & Details
ASRock ASRock Challenger 360 Digital PC water cooling
- Processor liquid cooling 12 cm
- Supported processor slots: Socket AM4, socket AM5, LGA 1851, LGA 1700
- 31 dB 62.6 CFM 1.44 mmH2O storage
- Support for pulse width modulation
- 120 x 120 x 25.4 mm
- Black
- This text is machine translated.
Technical specifications
- Fan diameter 12 cm
- Supported processor slots: Socket AM4, socket AM5, LGA 1851, LGA 1700
- Bearing type: Rifle bearing
- Number of fans: 3 fans
- 4-pin fan connector
- Product type
PC water cooling
- Factory colour
Black
- Rotational speed (min.)
1200 U/min
- Noise emission (max.)
31 dB
- Heatsink material
Aluminium
- Length
45 cm
- Screen size diagonal (inches)
3 inch
- Display resolution
480 x 480 Pixel
- Type
Liquid cooling
- UKCA
yes
- Pump motor speed (max)
3200 RPM
- Pump motor speed (min)
1200 RPM
- Pump current
72 mA
- Fan voltage
12 V
- Fan current
0.18 A
- Radiator width
12 cm
- Radiator depth
39.4 cm
- Radiator height
2.7 cm
- Illumination LED
yes
- Fan dimensions (W x D x H)
120 x 120 x 25,4 mm
- Waterblock width
8.41 cm
- Waterblock depth
8.5 cm
- Waterblock height
5.35 cm
- Pulse-width modulation (PWM) support
yes
- Maximum airflow
62.6 cfm
- Maximum air pressure
1.44 mmwc
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730352 ASRock ASRock Challenger 360 Digital PC water cooling
