Computing & OfficePC ComponentsMotherboardsMotherboards

ASRock B860M Steel Legend WiFi Motherboard PC base #####Intel® 1851 Form factor (details) ATX

A computer motherboard with 'B560M Steel Legend WiFi' branding, featuring slots for RAM, a CPU socket, and various ports for connectivity.
'Top view of a motherboard illustrating the various slots, sockets, and components, including RAM slots, CPU socket, and connectors.'
Motherboard with silver accents, labeled 'B550M Steel Legend WiFi.' Features ports, chipset, RAM slots, and LED lighting along the edge.
A computer motherboard labeled 'ASRock Z690M Steel Legend WIFI', featuring various slots and components, with RGB lighting at the bottom edge.

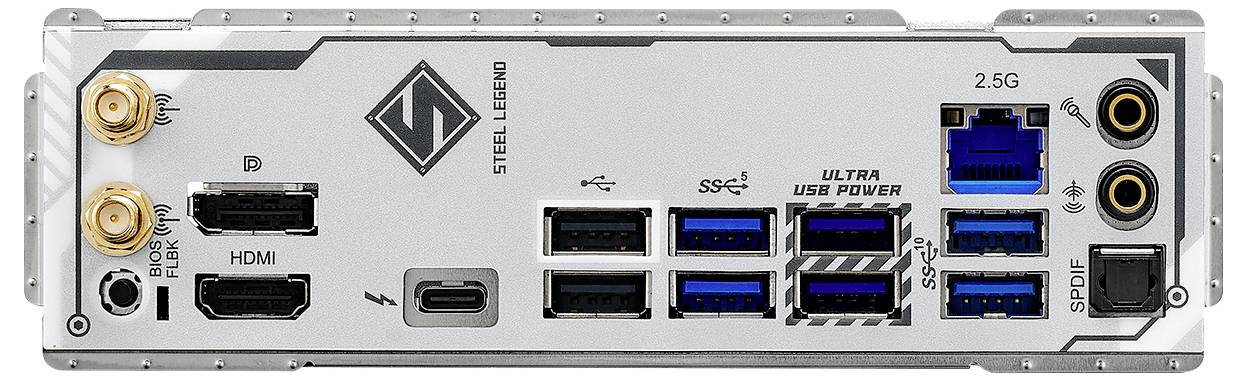

Back panel of a Steel Legend motherboard featuring multiple USB ports, HDMI, DisplayPort, Ethernet jacks, and audio connectors.
ASRock B660M Steel Legend WiFi motherboard alongside its box, highlighting features like DDR4 support and HDMI connectivity options.
1/6
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

ASRock B860M Steel Legend WiFi Motherboard

  • Intel LGA 1851 (socket V1) Intel core ultra (series 2)
  • PC micro ATX Intel B860 Realtek ALC1220 7.1 channels
  • DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
  • HDD & SSD M.2, SATA III RAID SUPPORT
  • UEFI AMI 256 Mbit BIOS type
  • 2.5 Gigabit Ethernet WLAN Wi-Fi 6E (802.11ax) Bluetooth 5.3
  • This text is machine translated.

Technical specifications

  • LGA 1851 (socket V1)
  • Supported memory: DDR5 SDRAM
  • ECC compatibility: Non-ECC
  • Number of CPU fan ports: 2
  • Number of EPS power connections (4-pin): 2
  • WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)
  • Intel B860 motherboard chipset
  • Motherboard form factor: Micro ATX
Product type

Motherboard

#####Intel® 1851

Form factor

ATX

RAM type

DIMM

RAM / Max. upgrade

256 GB

Interfaces

USB A (USB 2.0)

USB A (USB 3.1 1st gen)

USB A (USB 3.1 2nd gen)

HDMI™

No. of Gigabit LANs

1 x

No. of PCIe 3.0 x16

1 x

No. of USB 2.0 ports

2 x

No. of SATA III ports

4 x

Bluetooth

5.3

Bluetooth

Yes

Factory colour

White

Depth

244 mm

Width

244 mm

No. of DisplayPort

1 x

No. of HDMI ports

1 x

No. of USB A 2.0 ports

2 x

No. of USB type A 3.1 / 3.2 1st Gen

4 x

No of. USB type A 3.1 /3.2 2nd gen

2 x

Range of use

PC

Wi-Fi

Yes

UKCA

yes

BIOS memory size

256 Mbit

Ethernet LAN

yes

Antenna included

yes

Number of memory slots

4

Number of M.2 (M) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Microphone in

yes

S/PDIF out port

yes

CPU fan connector

yes

ATX Power connector (24-pin)

yes

Front panel audio connector

yes

TPM connector

yes

RGB LED pin header

yes

Supported memory clock speed (max)

8666 MHz

HDCP

yes

RAID support

yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Thunderbolt ports quantity

1

Unbuffered memory

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3376571 ASRock B860M Steel Legend WiFi Motherboard PC base #####Intel® 1851 Form factor (details) ATX
