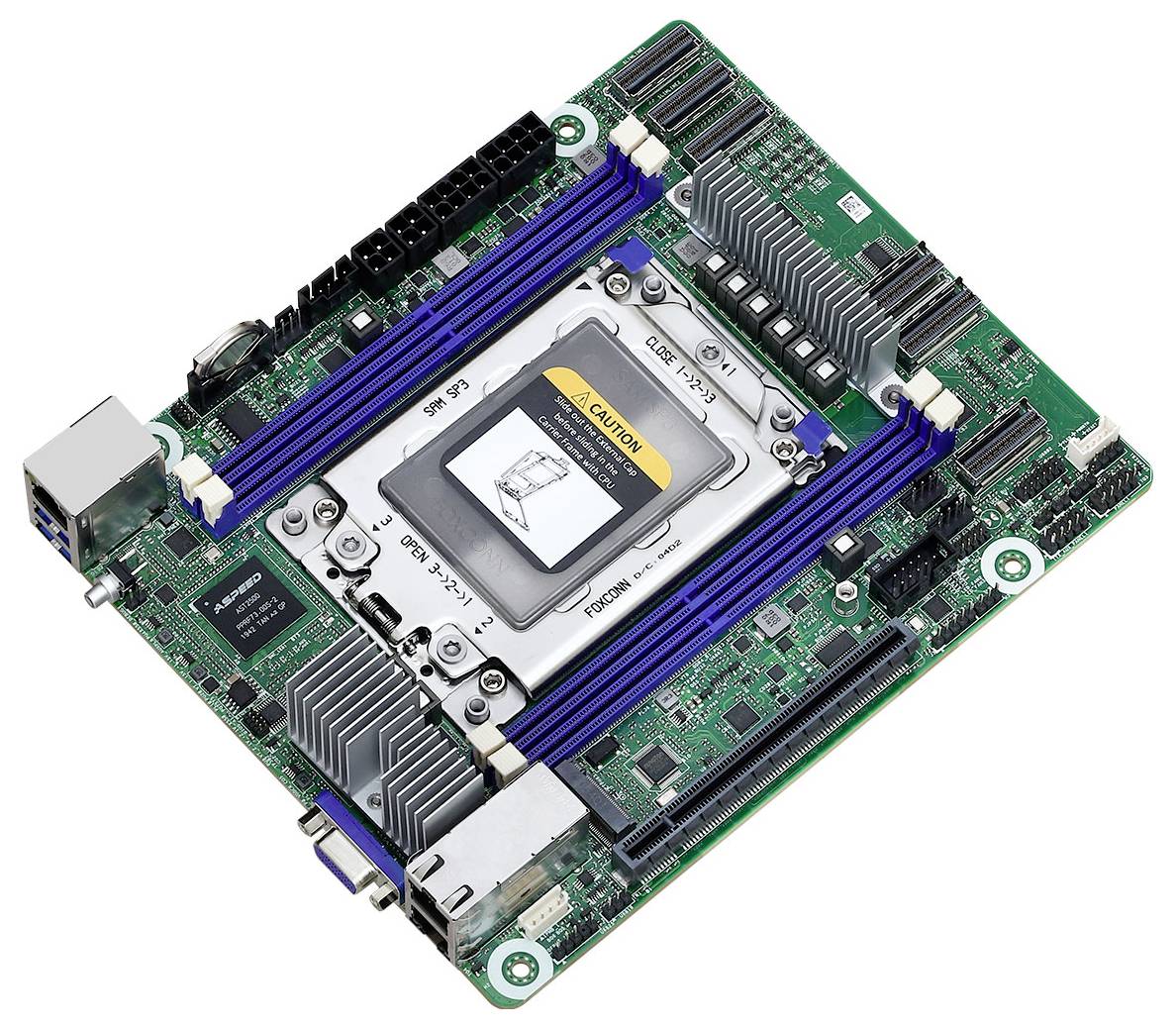

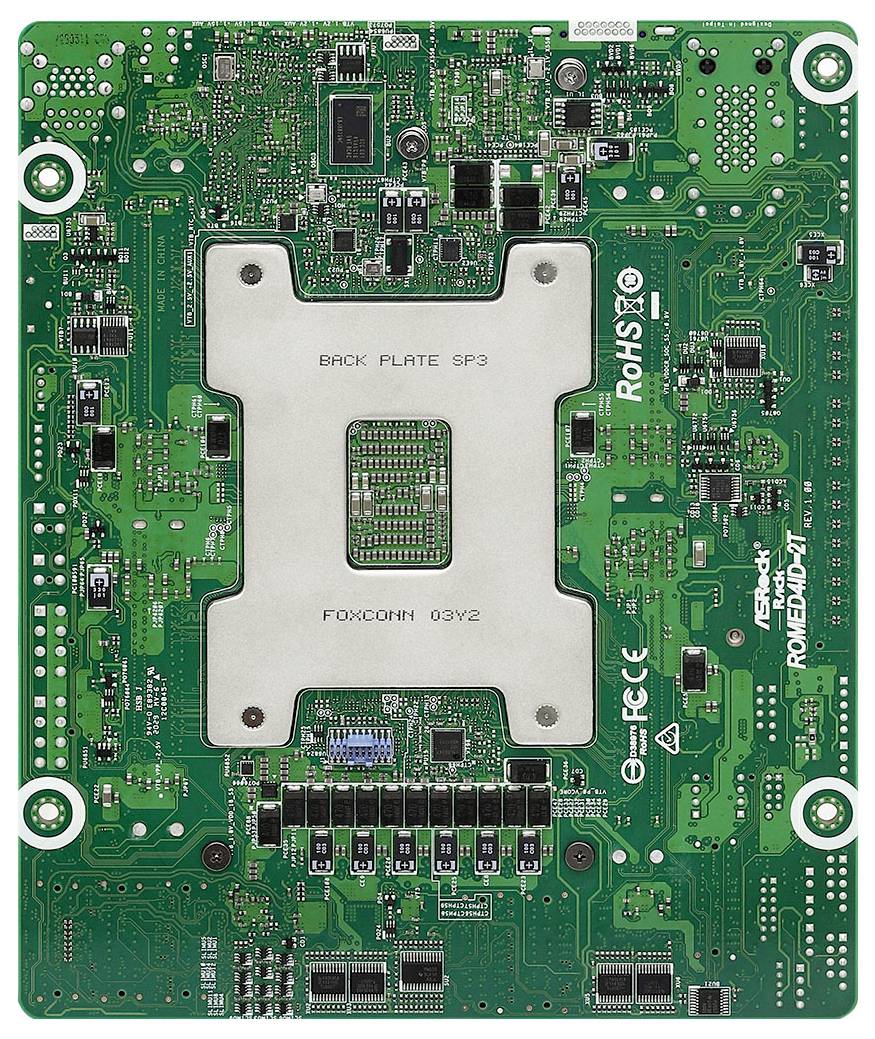

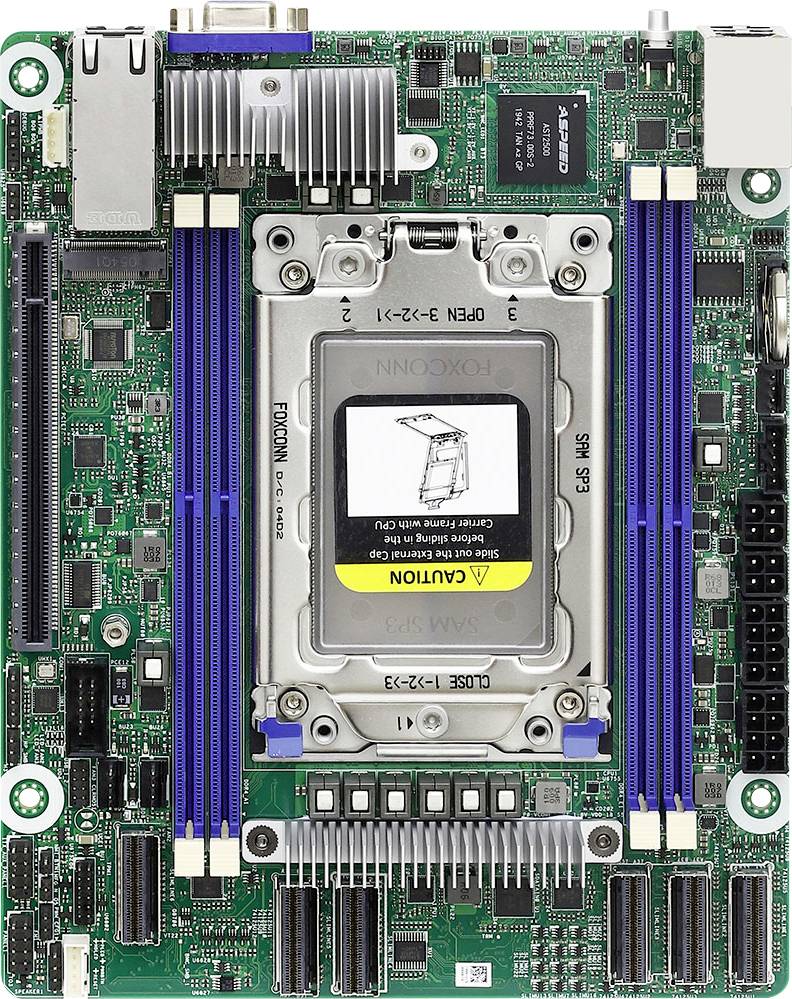

ASRock ROMED4ID-2T Motherboard PC base AMD SP3 Form factor (details) Mini-ITX
EAN:
Part number:
Item no:
Highlights & Details
ASRock ROMED4ID-2T Motherboard PC base AMD SP3 Form factor (details) Mini-ITX
- AMD socket SP3 AMD EPYC
- Mini PC mini ITX
- DDR4 SDRAM 4 DIMM RAM maximum: 256 GB
- PCI Express 4.0, SATA
- ASPEED AST2500
- 256 Mbit Clear-CMOS-button
- This text is machine translated.
Technical specifications
- Socket SP3
- Component for: Mini PC
- Motherboard form factor: Mini ITX
- Product type
Motherboard
- Form factor
Mini-ITX
AMD SP3
- Graphics card type
ASPEED
- Graphics card type
AST2500
- Interfaces
Gigabit LAN (1 Gbps)
USB A (USB 3.1 1st gen)
USB A (USB 2.0)
VGA
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
1 x
- Depth
20.83 cm
- Height
7 cm
- Width
17.02 cm
- No. of VGA ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Onboard graphics card
Yes
- Operating voltage
1.2 V
- 10/100/1000 Mbps ports
2 x
- RAM / Max. upgrade
256 GB
- RAM type
DDR4 SDRAM
- Range of use
Server
- Weight
1.13 kg
- UKCA
yes
- BIOS memory size
256 Mbit
- Operating temperature (T-T)
-40 - 70 °C
- Ethernet LAN
yes
- Number of memory slots
4
- Number of SATA connectors
8
- Power fan connector
yes
- TPM connector
yes
- RGB LED pin header
yes
- PCI Express x4 slots
1
- Storage temperature (T-T)
10 - 35 °C
- IPMI LAN (RJ-45) port
yes
- Clear CMOS button
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3531318 ASRock ROMED4ID-2T Motherboard PC base AMD SP3 Form factor (details) Mini-ITX
