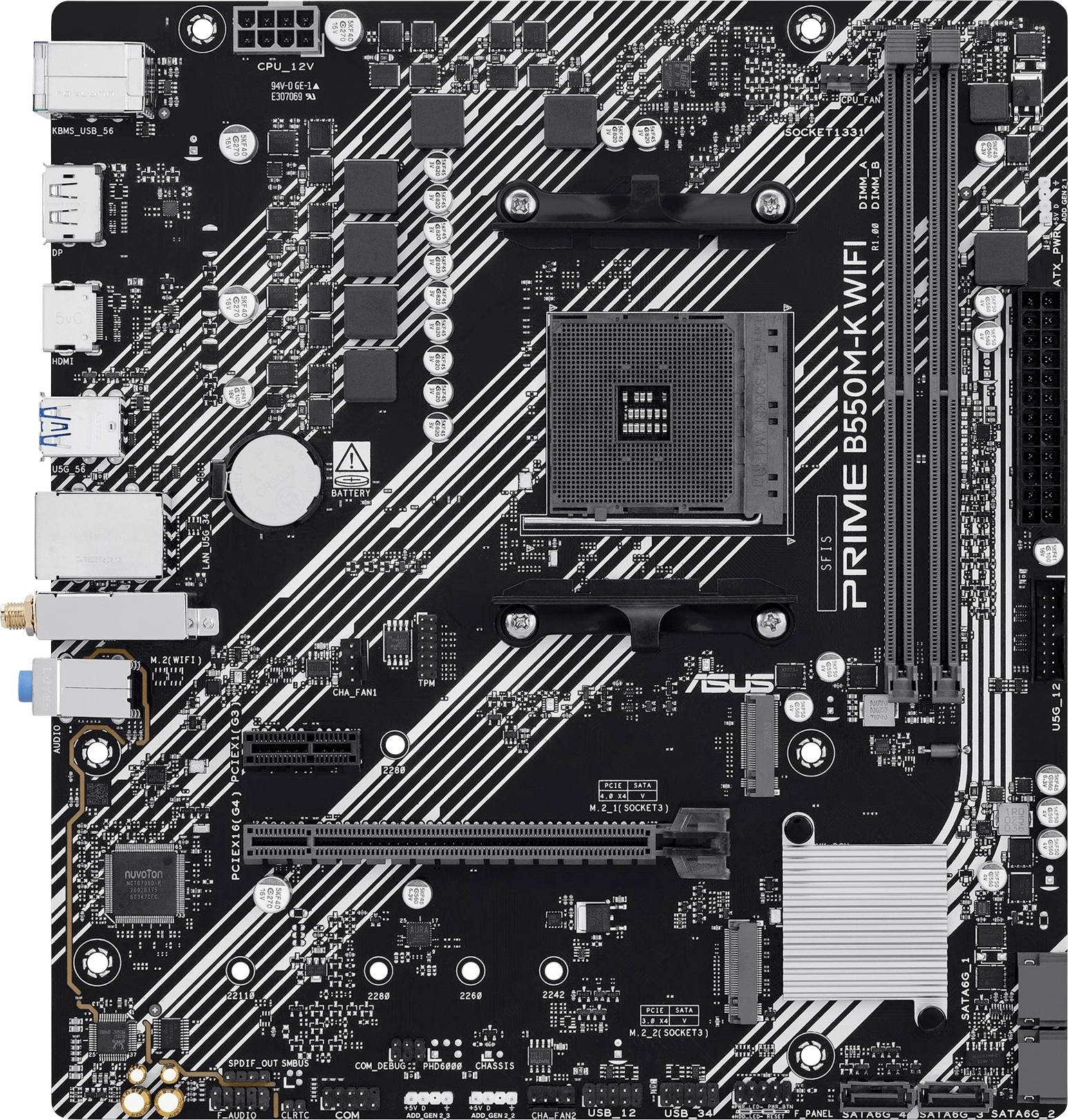

Asus PRIME B550M-K WIFI AM4 MB Motherboard
EAN:
Part number:
Item no:
Highlights & Details
Asus PRIME B550M-K WIFI AM4 MB Motherboard
- AMD socket AM4 AMD Ryzen 5000 series, AMD Ryzen 4000 series, AMD Ryzen 3000 series
- PC micro ATX AMD B550 7.1 channels
- DDR4 SDRAM 2 DIMM RAM maximum: 64 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 6
- UEFI AMI 128 Mbit BIOS type
- Gigabit Ethernet WLAN Wi-Fi 6 (802.11ax) Bluetooth
- This text is machine translated.
Technical specifications
- Socket AM4
- AMD B550 motherboard chipset
- Motherboard form factor: Micro ATX
- Product type
Motherboard
- RAM type
DIMM
- RAM / Max. upgrade
64 GB
- No. of USB 2.0 ports
2 x
- No. of SATA III ports
4 x
- No. of PS/2 ports
1 x
- Bluetooth
Yes
- Factory colour
Multicolour
- Depth
221 mm
- Width
244 mm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
128 Mbit
- Ethernet LAN
yes
- PCI Express x1 (Gen 3.x) slots
1
- Number of memory slots
2
- Number of M.2 (M) slots
2
- Headphone outputs
1
- Microphone in
yes
- 12V power connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- TPM connector
yes
1
1
- EPS power connector (8-pin)
yes
- RAID support
yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Unbuffered memory
yes
- Number of storage drives supported
6
